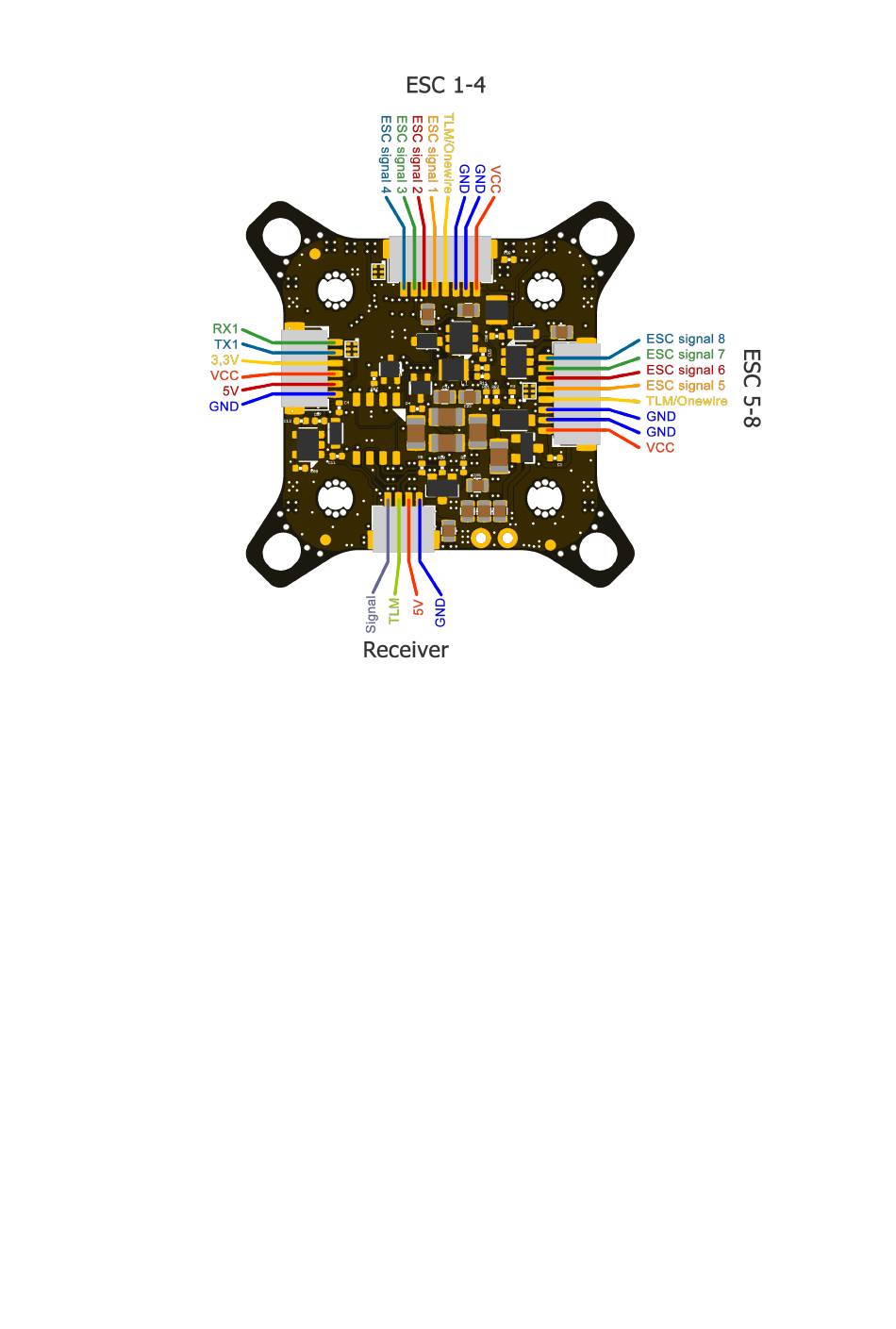

Connection Layout bottom

8 pin ESC connector 1:
VCC: Battery voltage out to supply FC power
GND
TLM/Onewire: ESC Telemetry signal to FC or Onewire signal pin (depending on
configuration)
ESC signal 1-4: ESC signal output for each ESC
8 pin ESC connector 2:
VCC: Battery voltage out to supply FC power
GND
TLM/Onewire: ESC Telemetry signal to FC or Onewire signal pin (depending on
configuration)
ESC signal 5-8: ESC signal output for each ESC (outputs ESC signal 1-4 if UAV type is
configured as BI, TRI, QUAD)
