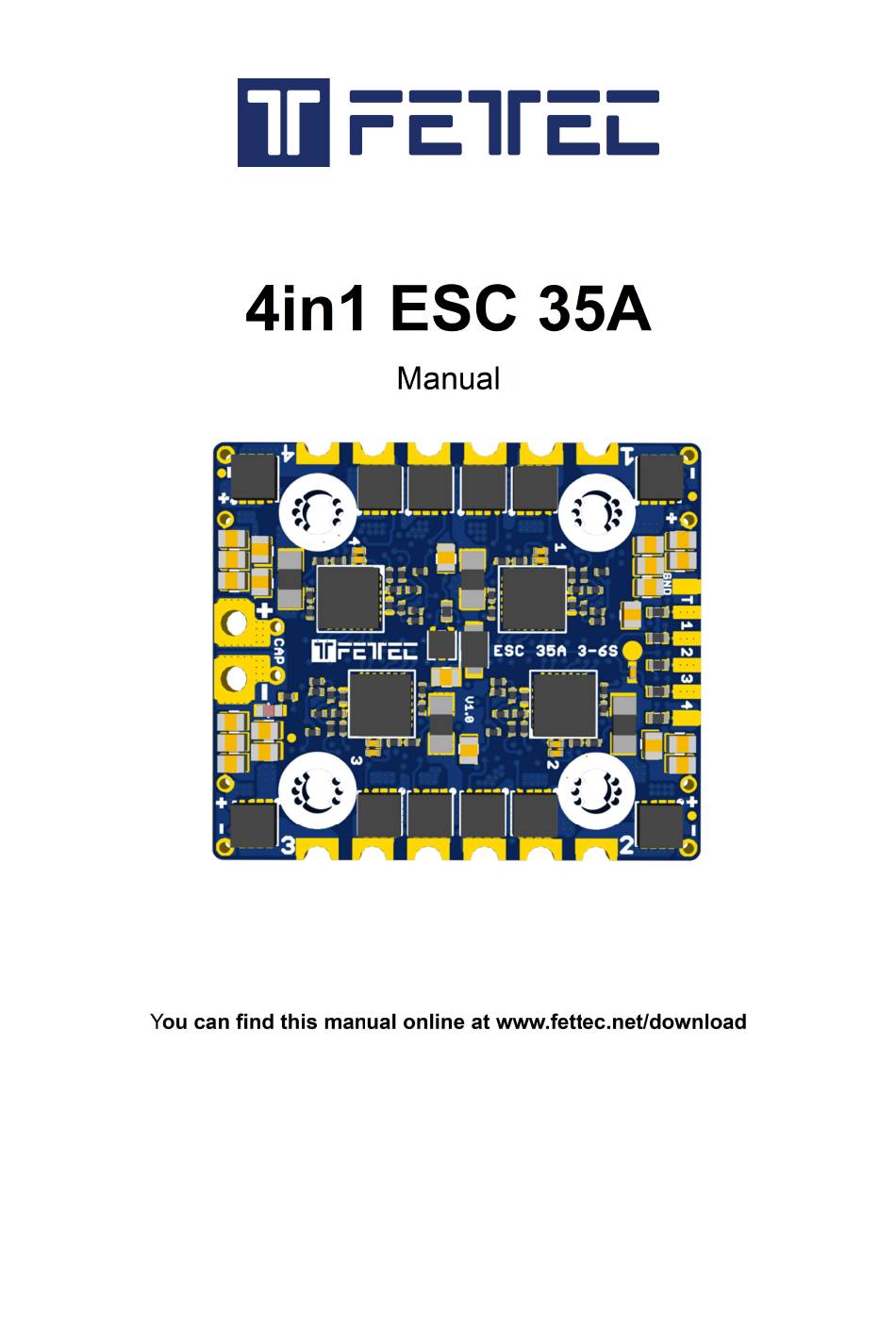

- Page 1 Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction...........................3 Features............................3 Safety warning..........................3 Note..............................3 Connection Diagram........................4 Top/Bottom Layout........................4 Dimension (in mm)........................4 Basic Setup...........................5 4S.............................5 6S.............................5 KISS-FC...........................5 Traditional ESC Connection....................5 Onewire ESC Connection.....................6 Betaflight...........................6 Connection...........................6 Configuration........................6 Configurator..........................7 Settings..........................7 Page 2... -
Page 3: Introduction
Introduction Thank you for purchasing the FETtec ESC. This is a high-quality sensor-less brushless electronic 4 in 1 speed controller. Features Active current limiting @ 35A • Input voltage: 3S-6S • High quality 40V MOSFETs • STM32G071 @ 64MHz •... -
Page 4: Connection Diagram
Connection Diagram Top/Bottom Layout S1 – S4 – Motor Signal 1-4 TLM – Telemetry (Serial) GND – Reference Signal Ground Dimension (in mm) The ESC comes with a 20 mm x 20mm mounting hole layout designed for M2 and M3 screws. Original is for M2 while you can use a screw driver and force it into M3 by rotating it inside the hole carefully. -
Page 5: Basic Setup
Basic Setup For 4S usage please note that on 5” and higher builds the use of the supplied capacitor is advised. On 3” to 4” builds the capacitor is not required. For 6S usage an additional capacitor with the following specification is mandatory. You can use either a single capacitor or use multiple ones which can be connected on each corner of the ESC. -
Page 6: Onewire Esc Connection
Onewire ESC Connection On KISS FC v2 hardware and a firmware of at least 1.3RC38a the ESC can also be connected Betaflight Connection Signal 1 – 4 have to be connected to the corresponding FC Motor outputs. The TLM wire has to be connected to an available serial TX pin. -
Page 7: Configurator
= ON Configurator Please update your ESC with the current Firmware version. The ESC configuration tool is available at https://github.com/FETtec/ESC-Configurator The ESC firmware is available for download at https://github.com/FETtec/ESC-Firmware FC passthrough is available for the following platforms: KISS FC – Firmware 1.3-RC36j (or higher) •... - Page 8 The Overview page allow to flash individual ESCs. The Setting page allow to adjust all available ESC parameter - Reverse rotation direction - Slow start - 3D mode - PWM min & max signal - ESC Beep enabled - Current calibration - Individual ESC ID (for use on Onewire protocol) Page 8...
- Page 9 In Telemetry page you can spin the motors, view and debug the Motor telemetry. Page 9...
