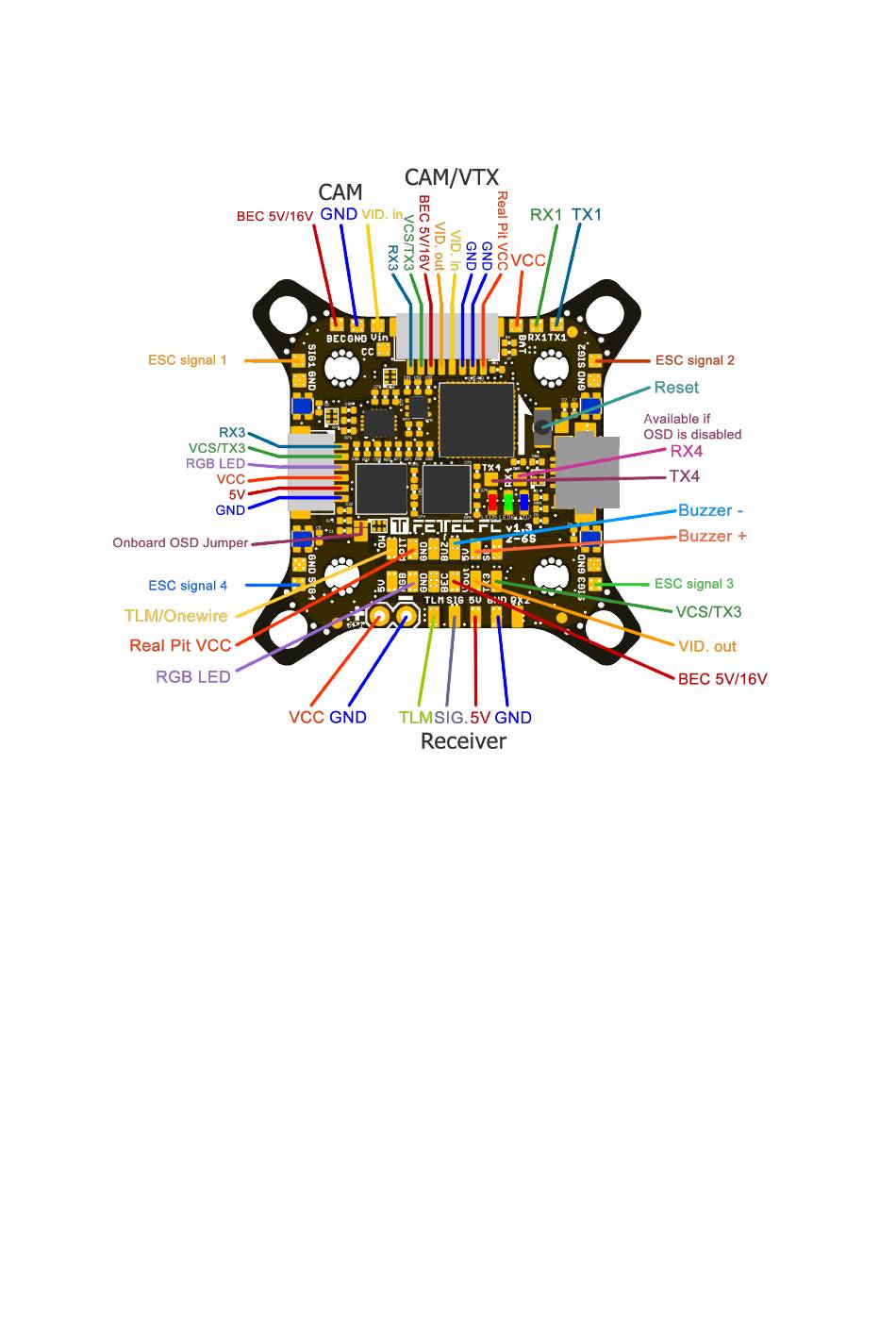

Connection Diagram

Connection Layout top

The 8 pin connector combines all necessary connections for analog or digital VTX and camera.
It includes:
Real Pit VCC (Lipo+)
•
GND for cam and VTX
•
Video in: Analog video signal from cam
•
Video out: Analog video to VTX
•
BEC 5V/16V: power supply for cam and/or VTX, switchable voltage, real Pit capable
•
VCS/TX3: for smart audio / tramp configuration or TX for digital FPV systems
•
RX3: for digital FPV systems
•
6 pin connector (SER3):
RX3: for digital FPV systems or other functions configurable in GUI (same for VCS/TX3)
•
VCS/TX3: for smart audio / tramp configuration or TX for digital FPV systems
•
RGB LED: PWM signal pin to control WS2812 LEDs or similar (configurable in GUI)
•
VCC: Battery voltage
•
5V
•
GND
•
