RTCU LX5 eco Technical Manual V1.00
Advanced Industrial M2M/IoT Gateway

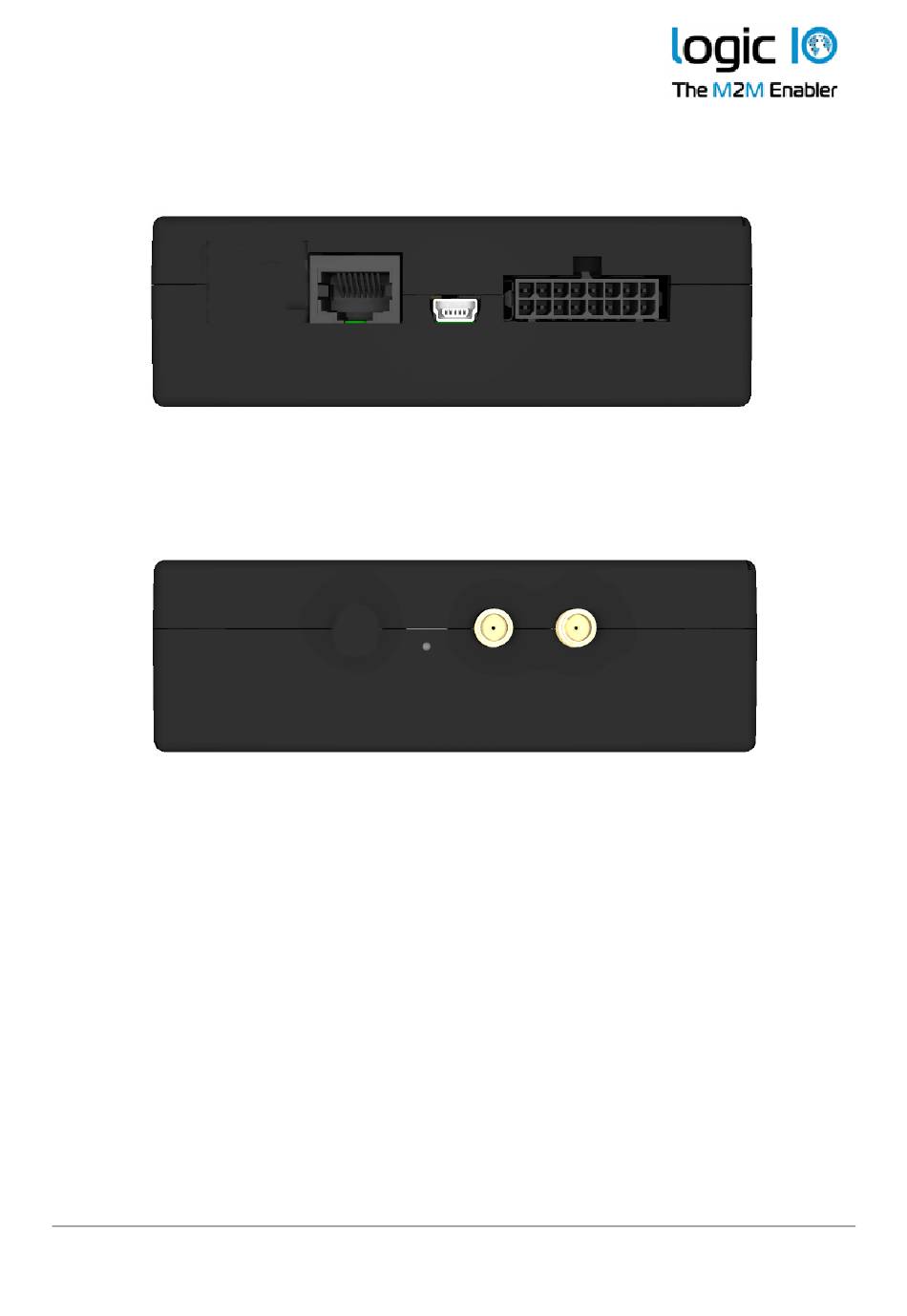

On the frontside of the device the Communication and Programming ports are found. Also located
on the front side is the Power and I/O connector.
Prog. port
Communication
Power and I/O connector
port
Frontside
On the backside of the device, the LTE and GNSS antenna connectors are found. Also located on
this side is the small hole for the reset button.
GNSS Antenna
LTE Antenna
Reset button
Backside
Inside the encapsulation, the SIM-card reader and various configuration/termination jumpers are
located.
For convenience and easy installation, the front of the devices contains all connectors'
documentation and includes several tables for its layout.
