ROHO QUADTRO SELECT
NOTE: Before adjusting the cushion for an asymmetry, you MUST perform a hand check to adjust the air inflation level to the proper cushion inflation setting as detailed on the
reverse side of this document
To correct a reducible (flexible) posterior
pelvic tilt (anterior-posterior asymmetry)
1. Make sure the ISOFLO Memory Control is open
(press green knob in). FIGURE 1
2. Make sure the pelvis is located at the back of the
cushion, in a neutral and upright position. FIGURE 2
3. Use your hands to create downward pressure on
both sides of the pelvis to force air to the front
quadrants and create a contour for the pelvis that
will help discourage forward migration; close the
ISOFLO Memory Control (press red knob in), and
then release the pressure on the pelvis. FIGURE 3
4. Perform a hand check and make sure there is a
minimum of ½ - 1" of air between the ischial
tuberosity and the seat surface. FIGURE 4

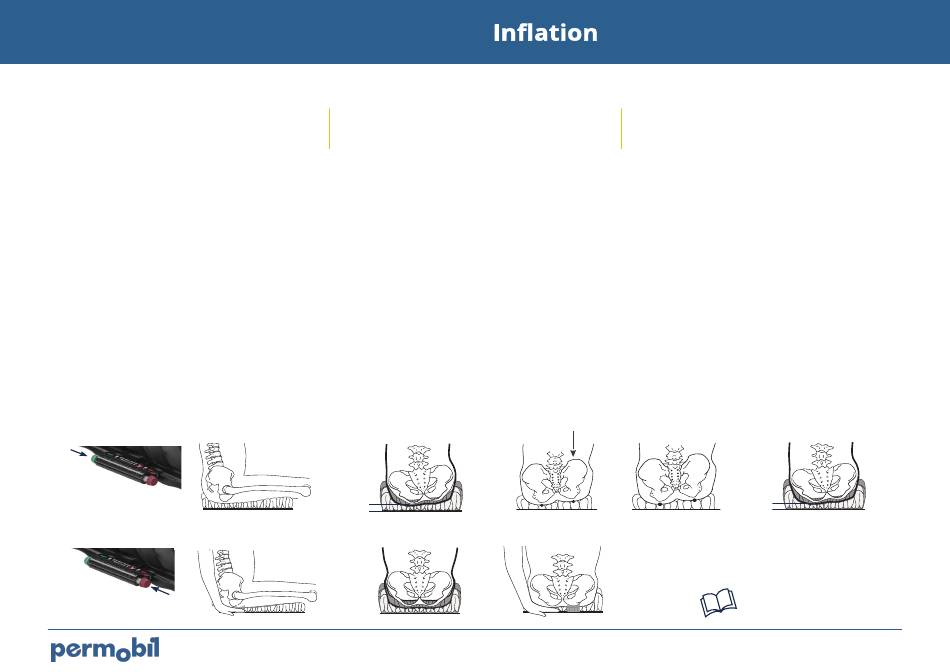

Figure 2
Figure 1
Open ISOFLO - Push green
knob in
Figure 3
Figure 4
Close ISOFLO - Push red
knob in
®
Cushion
To correct a reducible (flexible) pelvic
obliquity (lateral asymmetry)
1. Make sure the ISOFLO Memory Control is open
( press green knob in ) FIGURE 1
2. Make sure the pelvis is positioned at the back of the
cushion. FIGURE 2
3. Position the pelvis in a neutral and upright position
by pressing down on the higher side of the pelvis
until the pelvis is level. FIGURE 5 & 6.
This will force more air into the quadrant under the
lower side of the pelvis to help prevent it from tilting
to that side. FIGURE 7
4. Close the ISOFLO Memory Control (press red knob
in), release your pressure on the pelvis. FIGURE 3
5. Perform a hand check and make sure there is a
minimum of ½ - 1 " of air between the ischial
tuberosity and the seat surface. FIGURE 8
Figure 6
Figure 5
½ " - 1 "
Figure 8
Figure 7
and Adjustment Guide
To accommodate a non-reducible (fixed)
postural asymmetry
1. Make sure the ISOFLO Memory Control is open
(press green knob in). FIGURE 1
2. Have the individual sit on the cushion in the most
upright and midline posture that they can achieve.
FIGURE 9
3. Close the ISOFLO Memory Control (press red knob
in). This will help hold the pelvis in the best posture
that is achievable by that individual and prevent
further progression into asymmetry. FIGURE 3
4. Perform a hand check and make sure there is a
minimum of ½ - 1" of air between the lowest ischial
tuberosity and the seat surface. FIGURE 8 & 10
Figure 9
Figure 10
½ " - 1 "
Please refer to the Operation Manual for other safety information
regarding theQUADTROSELECT
