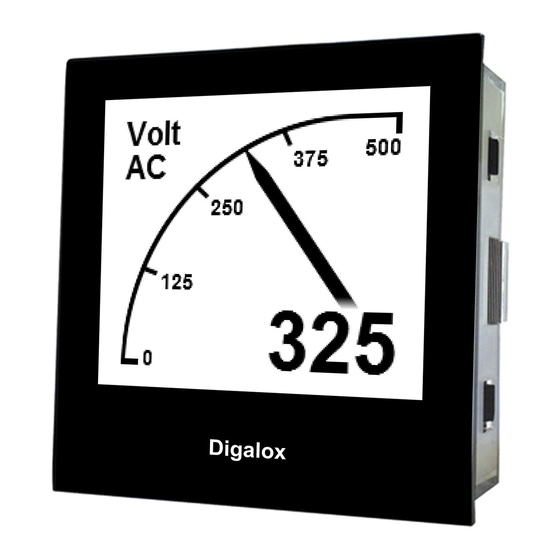

TDE Instruments Digalox DPM72-AV Instruction Manual

®

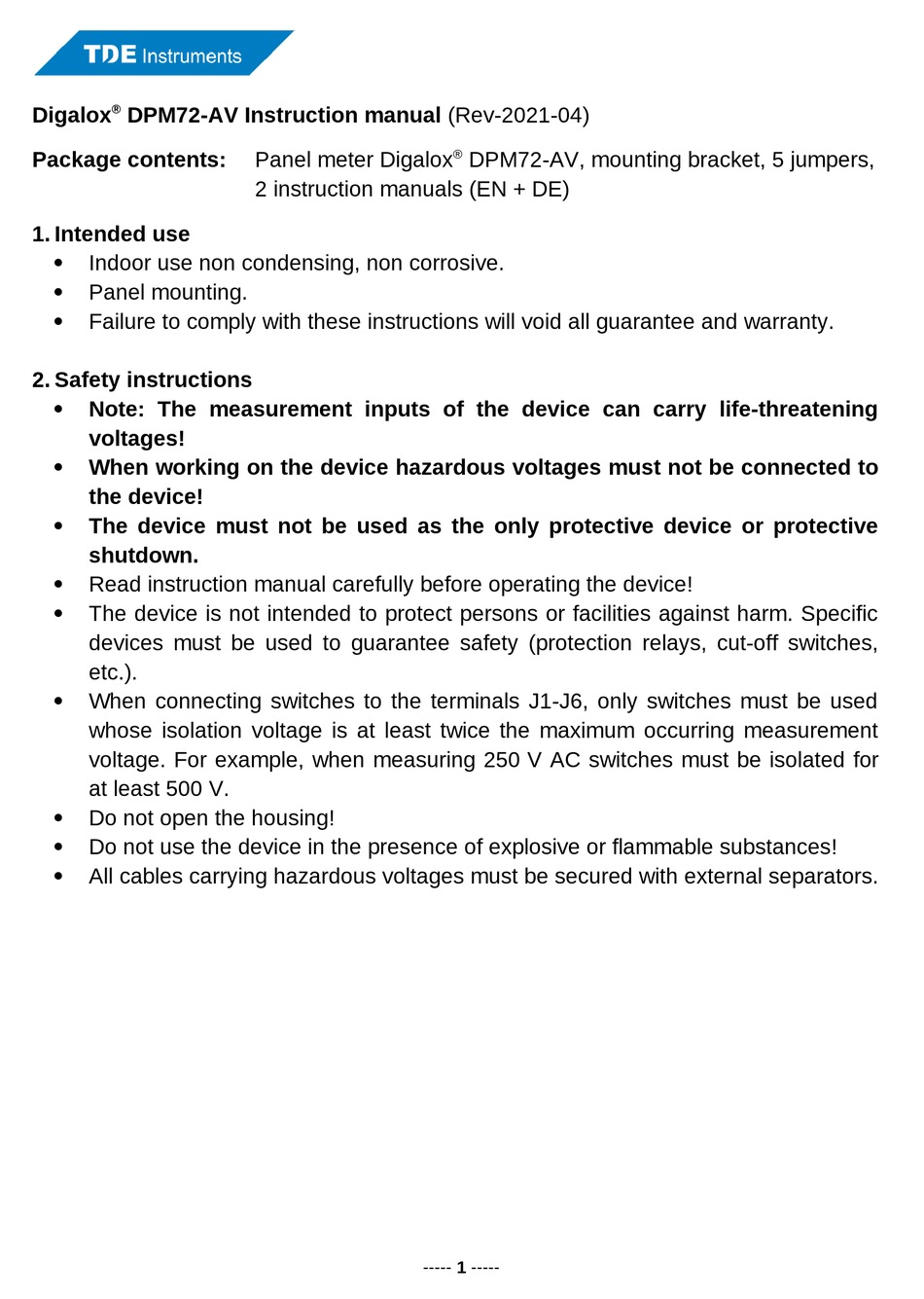

Digalox DPM72-AV Instruction manual (Rev-2021-04)
Package contents:
1. Intended use
Indoor use non condensing, non corrosive.

Panel mounting.

Failure to comply with these instructions will void all guarantee and warranty.

2. Safety instructions
Note: The measurement inputs of the device can carry life-threatening

voltages!
When working on the device hazardous voltages must not be connected to

the device!
The device must not be used as the only protective device or protective

shutdown.
Read instruction manual carefully before operating the device!

The device is not intended to protect persons or facilities against harm. Specific

devices must be used to guarantee safety (protection relays, cut-off switches,
etc.).
When connecting switches to the terminals J1-J6, only switches must be used

whose isolation voltage is at least twice the maximum occurring measurement
voltage. For example, when measuring 250 V AC switches must be isolated for
at least 500 V.
Do not open the housing!

Do not use the device in the presence of explosive or flammable substances!

All cables carrying hazardous voltages must be secured with external separators.

Panel meter Digalox
2 instruction manuals (EN + DE)
® DPM72-AV, mounting bracket, 5 jumpers,
----- 1 -----
