Digalox DPM72-AV Instruction manual (Rev-2022-07)
Package contents:

1. Intended use

Measurement of current, voltage and frequency in the specified measuring

ranges.
Indoor use non condensing, non corrosive.

Panel mounting.

Failure to comply with these instructions will void all guarantee and warranty.


2. Safety instructions

Read instruction manual carefully before operating the device! Keep for later ref-

erence.
Mounting and installation must be carried out by suitably qualified and competent

persons only.
WARNING: The measurement inputs of the device can carry life-threaten-

ing voltages!
WARNING: When working on the device hazardous voltages must not be

connected to the device! The terminals J1-J6 are not isolated from the
measuring circuit.
The device is not intended to protect persons or facilities against harm. Specific

devices must be used to guarantee safety (protection relays, cut-off switches,
etc.).
When connecting switches to the terminals J1-J6, only switches must be used

whose isolation voltage is at least twice the maximum occurring measurement
voltage. For example, when measuring 250 V AC switches must be isolated for
at least 500 V.
Do not open the housing!

Do not use the device in the presence of explosive or flammable substances!

All cables carrying hazardous voltages must be secured with external separators.


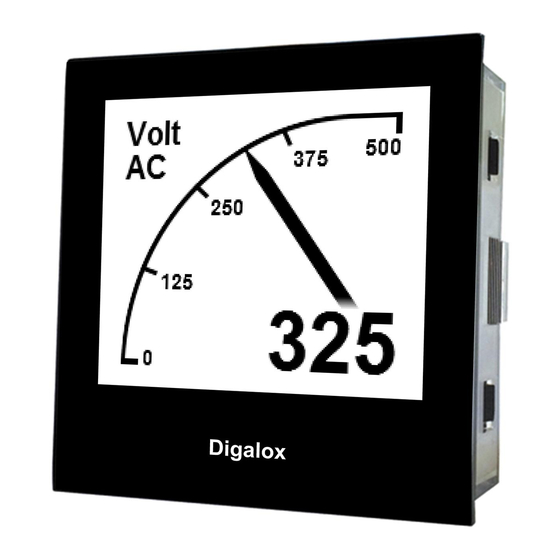

Panel meter Digalox
2 instruction manuals (EN + DE)
® DPM72-AV, mounting bracket, 5 jumpers,
