Gas spring cabel set for gas spring
Control for hight adjustment
Gas spring
1
Ensure that the arm supports are raised to the maximum height, that the gas spring is fully extended and that the locking
clamps (1) are locked before removing the gas spring.
Lower mount (2): Release the pin, and then remove the gas spring from the ball joint.
Upper mount (3): Remove the screw cover and unscrew the gas spring.
12

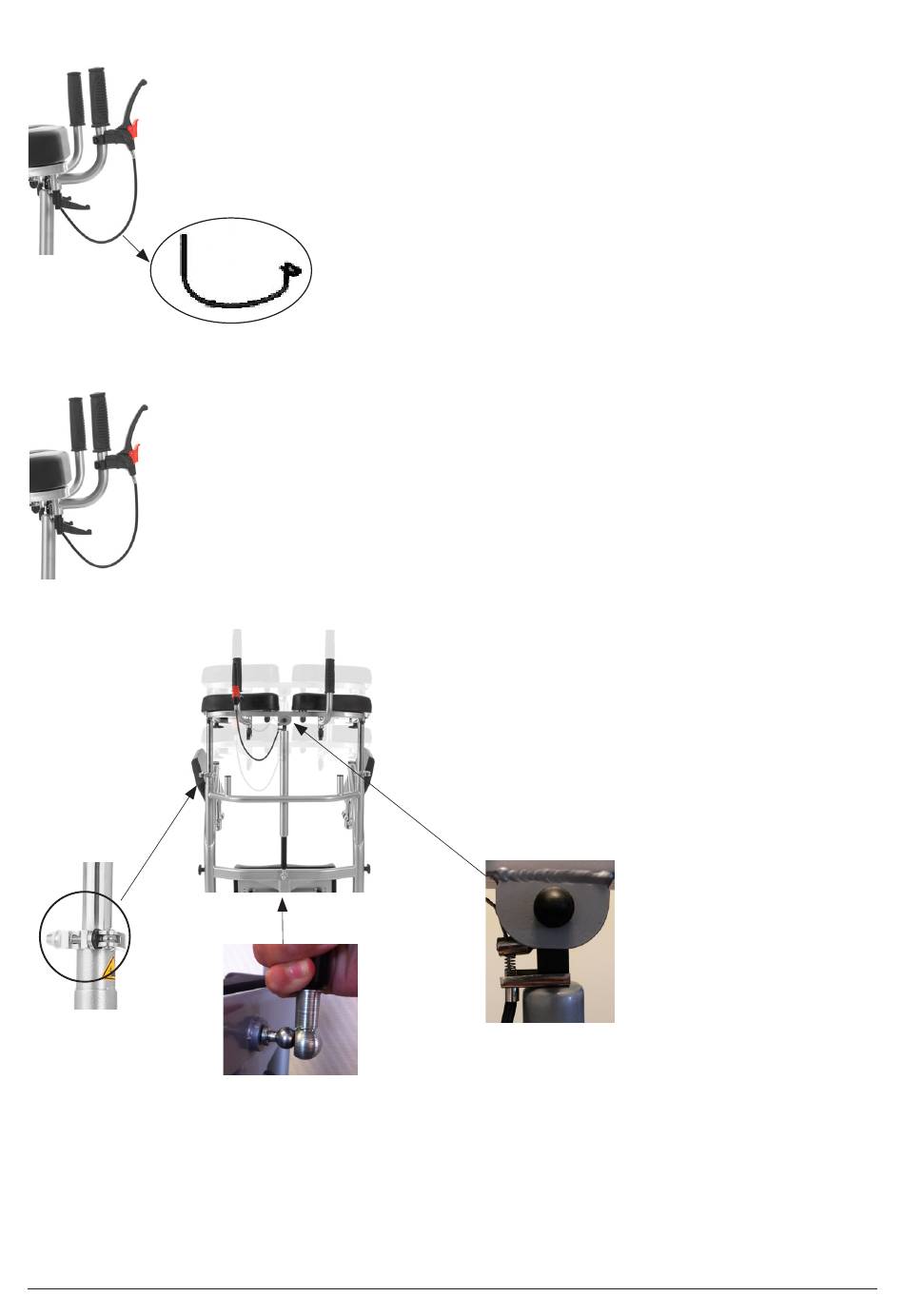

Disconnect the cable set by first loosen the adjustment screw on the cable and
secondly unhook the cable from the bracket. Attach the new cable set to the old
one, while still mounted in the frame, and change the old cable by pulling the cable
through the frame. Ensure correct mounting and adjustment by function control.
Disconnect the cable set.
Disassemble and change control for hight adjustment by unlocking the two screws.
2
3
SystemRoMedic
TM
