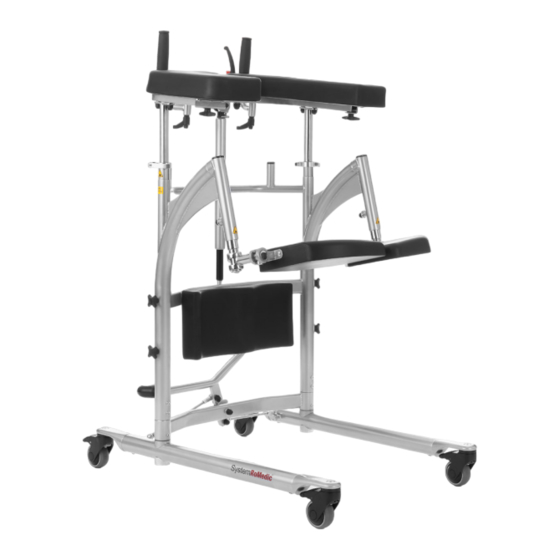

RoWalker400
Service manual - English
SystemRoMedic
TM
REF
20101010
SWL: 180 kg / 400 lbs
Functional inspection
Visual inspection
Check the condition and function of the product regularly. Check to ensure that material is free from damage. If there are
signs of wear, the product must be inspected and serviced.
Always read the manual
Always read the manuals for all assistive devices used during a transfer.
Keep the manual where it is accessible to users of the product.
Do not leave the patient unattended during a transfer situation.
The product should be inspected yearly, and otherwise as required, by a qualified technician. Service must be performed
by a qualified technician.
Manual no.: 658 Ver. 2 EN 200819
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Direct Healthcare Group SystemRoMedic RoWalker400
Summary of Contents for Direct Healthcare Group SystemRoMedic RoWalker400
- Page 1 RoWalker400 Service manual - English SystemRoMedic 20101010 SWL: 180 kg / 400 lbs Functional inspection Visual inspection Check the condition and function of the product regularly. Check to ensure that material is free from damage. If there are signs of wear, the product must be inspected and serviced. Always read the manual Always read the manuals for all assistive devices used during a transfer.
-
Page 2: Table Of Contents
Table of contents Exploded view ..................Component list ..................Spare part list ..................Detail descriptions for Periodic inspection ..........Periodic inspection, instruction .............8-10 Change of spareparts .................11-13 Care of the product .................13 General ....................13 Dimensions ....................14 Technical information ................15 SystemRoMedic... -
Page 3: Exploded View
Exploded view SystemRoMedic... -
Page 4: Component List
Component list Number Name Size Frame Front fork Leg Left Axial Plain bearing 26x44x1,5 Centre piece Bronze plain bearing 35x25x50 Screw M6x12 Fzb Threaded rod M8 - DIN 975 Seat kit right Seat kit left Off-center adjuster Screw M8x30/8.8 - DIN 931 Plastic nut cover Arm support Tube for gas spring... -
Page 5: Spare Part List
Spare part list Articleno Product Unit Components Parts 80100084 Seat kit left 1 set 1 x Seat left 2 x Screw 80100084 80100085 Seat kit right 1 set 1 x Seat right 2 x Screw 80100085 80200023 Castor with direction lock 1 set 2 x Castor kit 80mm... - Page 6 Articleno Product Unit Components Parts 80200022 Release head gas spring 1 set 1 x Locking nut 1 x Screw 2 x Plastic cover 1 x Releasing pin 1 x Socket set Screw cone point 80200022 1 x Release head 1 x Plate holder 80200027 Cabel for gas spring RW 1 pce 1 x Cable...
-
Page 7: Detail Descriptions For Periodic Inspection
Detail descriptions for Periodic inspection 1. Frame Page 8 2. Castors with brake Page 8 3. Castors with direction lock Page 8 4. Footpedal for leg spread adjustment Page 8 5. Leg support Page 9 6. Gas spring Page 9 7. -
Page 8: Periodic Inspection, Instruction
Periodic inspection, instruction Frame Check screws, nuts and bolts. Check the frame for visible damage to the surfaces, finish, etc. Castors with brake Lock the brakes. Check that the castors do not turn when the RoWalker is pushed. Castors with direction lock Roll the RoWalker unloaded on the floor, check that the castors roll and turn freely. - Page 9 Leg support Check the kneepad for visible damage to the surfaces, finish, etc. Make sure it is correctly assembled. Control for hight adjustment Check that the control for hight adjustment is activating the gas springs. Gas spring Check that the gas springs are moving smooth and soft. Seat support Check the seat supports for visible damage to the surfaces, finish, etc.
- Page 10 Handles Check the handles for visible damage to the surfaces, finish, etc. Make sure it is correctly assembled. Locking clamp Open the locking clamps on both sides and make sure that the hight adjustment is moving smooth and soft. Locking handle Check that the handles can be adjusted.
-
Page 11: Change Of Spareparts
Change of spareparts Seat support Disassemble and change the seat support by unlocking the two screws according to picture. Use the attached screws to assemble the new seat support and please note that there is a left and right seat support. Castors Disassemble and change the castors by unlocking the underneath mounted screw according to picture. - Page 12 Gas spring cabel set for gas spring Disconnect the cable set by first loosen the adjustment screw on the cable and secondly unhook the cable from the bracket. Attach the new cable set to the old one, while still mounted in the frame, and change the old cable by pulling the cable through the frame.
-
Page 13: Care Of The Product
Use an Allen key to release the adjustment cable from the gas spring release head. The gas spring release head is removed and the gas spring can then be removed from the gas spring tube and replaced. Replace the gas spring release head, secure the lower mount to the gas spring and, finally, reinstall the gas spring assembly on the RoWalker. -
Page 14: Dimensions
Dimensions (mm) UNLESS OTHERWISE SPECIFIED: DEBUR AND DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP EDGES SURFACE FINISH: BRAKO TOLERANCES: LINEAR: ANGULAR: NAME SIGNATURE DATE TITLE: DRAWN N. Jovanovski Maximum height CHK'D APPV'D MATERIAL: DWG NO. RoWo-0-000 without holders WEIGHT: 42.01 SCALE:1:20 SHEET 1 OF 1... -
Page 15: Technical Information
Technical information Seat width: 480 mm 18.8” Seat depth: 265 mm 10.4” Castor Ø Ø80 mm Ø3” Weight: 37,5 kg 82,67 lbs Weight incl. OxygenTankHolder: 43,5 kg 95.9 lbs SWL: 180 kg 400 lbs SystemRoMedic... - Page 16 Simple solutions for great results SystemRoMedic™ is the name of Direct Healthcare Group’s unique easy transfer concept, the market’s widest and most comprehensive range of clever, easy-to-use and safe transfer and lifting aids designed to make life easier, both for the user and for the caregiver.
