D I R E C T H E A LT H C A R E G R O U P. C O M
Bure Rise & Go DB
User Manual
Technical Manual
Service Manual
SWL: 150 kg/ 330 lbs
Manual no: 803 rev. 1 210604

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bure Rise & Go DB and is the answer not in the manual?

Questions and answers

Related Manuals for Direct Healthcare Group Bure Rise & Go DB

Summary of Contents for Direct Healthcare Group Bure Rise & Go DB

  • Page 1 Bure Rise & Go DB 56-309 User Manual 56-309-AUS 56-309-B/0-PLUS Technical Manual 56-309-B/0-FKNW_R-PU 56-309-B/0-FKNW_R-PU-CH 56-309-B/0-FKHW_R-PU-CH Service Manual 56-309-B/0-FKHW_R-PS-PU 56-309-B/0-PS-PU 56-309-B/0-PLUS-PU-TKN_R 56-309-B/0-PU 56-309-B/1-FKNW_R-PU 56-309-B/1-PU-CH 56-309-B/1-PLUS-PU 56-309-FKHW_R-PU 56-309-FKNW_R 56-309-FKNW_R-PLUS-RS-US 56-309-FKNW_R-RS-US 56-309-FR 56-309-PLUS 56-309-PLUS-PU 56-309-PLUS-PU-RS 56-309-PLUS-PUK-RS 56-309-PLUS-PU-UK 56-309-PU 56-309-PU-CH 56-309-PU-AUS 56-309-PU-UK 56-309-TKN_R 56-309-UK 56-309/100 56-309/75 56-309/75-AUS...

  • Page 2: Table Of Contents

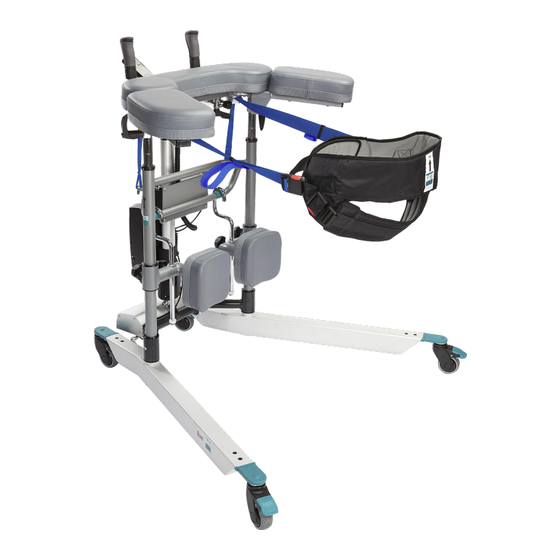

    B UR E R IS E & GO DB Bure Rise & Go DB The Bure Rise & Go Double is a conventional, electrically operated Walker that is enhanced with a power rise function. Not only does it act as a Walker, it also makes getting about in everyday life easier thanks to its smart power rise function.

  • Page 3: Intended Use

    • Inspect the device regularly to detect any signs of damage. If there are any visible signs of damage, contact Direct Healthcare Group Customer Service. • In case of an electrical model of the device, check that the hand control does not show signs of wear before every use.
  • Page 4 B UR E R IS E & GO DB Warnings • The caregiver must be able to read and understand the Manual/IFU of the product. • It is important to only use approved accessories as stated in the manual/IFU to prevent unintended detachment of components and subsequently a fall that may lead to patient injury.

  • Page 5: Standing Up Using The Bure Rise & Go Db

    B UR E R IS E & GO DB 3. Standing Up Using the Bure Rise & Go Because standing up or transporting patients always entails risks we recommend that two people are always present to assist the user at such times. 1.
  • Page 6 B UR E R IS E & GO DB 5. Swing the forearm supports to the side; the user must now grasp the handles WITHOUT support for the forearms. 6. Lock at least two of the Walker’s castors (any two) and fold down the stirrup. 7.

  • Page 7: Raising/Lowering The Frame

    B UR E R IS E & GO DB 4. Raising/Lowering the Frame Adjust the height with the aid of the remote control <UP> and <DOWN> arrows. 5. Adjusting the Handles To adjust handles to the desired position, undo knob, adjust handle tighten knob. 6.

  • Page 8: Battery Charging

    B UR E R IS E & GO DB Linak: 1. Battery terminal socket 2. Plug socket (NOTE: Plugs must always be connected to the control box for IP classification to be valid.) 3. Remote control socket 4. Socket for the raise/lower actuatork 10.

  • Page 9: Maintenance

    B UR E R IS E & GO DB 12. Maintenance Recommended at least once per year. Check that Action General The Walker feels firm/free from play. Clean with lukewarm soap solution or alcohol-based cleaning The Walker does not rattle during manoeuvres. agent (no petroleum products).

  • Page 10: General Maintenance Advice & Cleaning

    B UR E R IS E & GO DB 13. General Maintenance Advice & Cleaning • Before use, check that the holder and belts are not bent (see Figure s3). • Before use, check that the harness is not more than 3 years old (see labeling). •...

  • Page 11: Recycling/Disposal

    (metals, plastics, electronics) should be recycled). 16. Warranty We provide two years’ warranty for manufacturing faults (does not apply to wear parts). For further information or enquiries please contact: Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Tel: +46 (0)8-557 62 200 info.se@directhealthcaregroup.com...

  • Page 12: Electrical System - Technical Data

    B UR E R I S E & G O D B 17. Electrical System - Technical Data (T-motion/Linak) Actuator Lift Widening Lift Widening Producer TiMotion TiMotion Linak Linak Voltage 24 V 24 V Push 2000N/1500N 1000N 1000N/1500N/2000N 1200 N Pull 2000N/1500N 1000N 1000N/1500N/2000N...

  • Page 13: Parts List

    B UR E R IS E & GO DB 19. Parts List 1a 58-306-L Armrestpad left 14 58-302 Bearing (x2) Cross section 1b 58-305 Armrestpad center 15 58-353 Turn axle, beam 1c 58-306-R Armrestpad right 16 57-776 Cover, Wheel 57-775 Washer, wheel 2a 58-363 Frame/Armrest center...
  • Page 14 B UR E R IS E & GO DB 56-358 Wheel w brake 100 mm 56-361 Wheel w brake 125 mm 57-365 Armrestpad center, PUR 57-365-L/R Armrestpad left/right, PUR 57-367 Kneepad, PUR 58-374-2 Remote Control (TH7) 56-062 Remote Control PLUS, DB (TH10) 58-320 (-1, -2, -3) Cable/EUR (-UK, -US, -AUS) 58-326 (-1, -2, -3)

  • Page 15: Table Of Symbols

    B UR E R IS E & GO DB 21. Table of Symbols This product complies with the Visual Inspection requirements of the Medical Device Regulation 2017/745 Medical Device Read the manual Caution Product Code Manufacturer information Batch Code Type BF, according to the degree of The device is intended for indoor use protection against electric shock WEEE Symbol...
  • Page 16 Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Medical Device Class I Tel: +46 (0)8-557 62 200 Medical Device Class I. The product complies with the re- info@directhealthcaregroup.com www.directhealthcaregroup.com quirements of the Medical Devices Regulation 2017/745.
