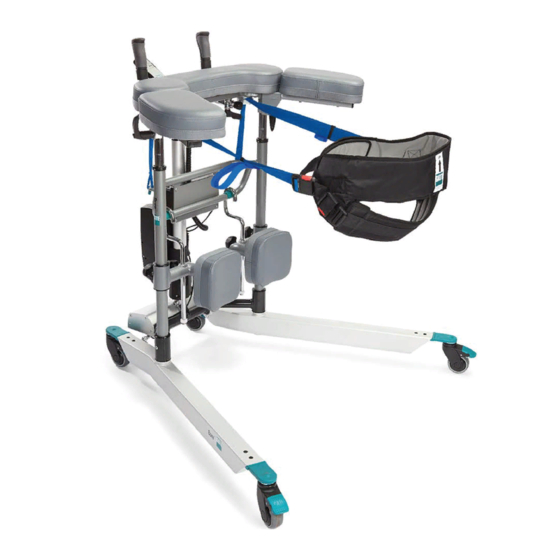

- Page 1 Bure Rise & Go DB Instructions for use – English System Bruksanvisning – Svenska SWL: 150 kg / 330 lbs IFU no: 803 rev. 2 210820...
- Page 2 Table of contents English ....................Svenska ....................11...
-
Page 3: Product Overview
Product Overview 56-309/75-B/0-PU 56-309 56-309-AUS 56-309/75-FKN_R 56-309-B/0-PLUS 56-309/75-FKNW_R 56-309-B/0-FKNW_R-PU 56-309/75-FKNW_R-PU 56-309-B/0-FKNW_R-PU-CH 56-309/75-FKNW_R-PU-UK 56-309-B/0-FKHW_R-PU-CH 56-309/75-Plus 56-309-B/0-FKHW_R-PS-PU 56-309/75-PLUS-PU 56-309-B/0-PS-PU 56-309/75-PLUS-PU-UK 56-309-B/0-PLUS-PU-TKN_R 56-309/75-PU 56-309-B/0-PU 56-309/75-PU-AUS 56-309-B/1-FKNW_R-PU 56-309/75-PU-UK 56-309-B/1-PU-CH 56-309/75-PU-US 56-309-B/1-PLUS-PU 56-309/75-TKN_R 56-309-FKHW_R-PU 56-309-FKNW_R 56-309/75-UK 56-309-FKNW_R-PLUS-RS-US 56-309/75-US-TRG 56-309-FKNW_R-RS-US 56-309L-UK 56-309-FR 56-309L-PU 56-309-PLUS 56-309L-PU-UK 56-309-PLUS-PU 56-309L-B/0-AUS 56-309-PLUS-PU-RS 56-309L-B/0-PU-AUS... -
Page 4: Intended Use
Inspect the device regularly to detect any signs of damage. If there are any visible signs of damage, contact Direct Healthcare Group Customer Service. In case of an electrical model of the device, check that the hand control does not show signs of wear before every use. - Page 5 Special care must be taken when using strong electrical power sources such as diathermy and the like so that diathermy cables are not placed on or near the device. In case of doubt consult with a Direct Healthcare Group representative.
- Page 6 3. Standing Up Using the Bure Rise & Go Because standing up or transporting patients always entails risks we recommend that two people are always present to assist the user at such times. 1. Fit the harness as low as possible across the hips and bottom with the broad upper part around the hips and the narrow lower part around the bottom.
- Page 7 5. Swing the forearm supports to the side; the user must now grasp the handles WITHOUT support for the fore- arms. 6. Lock at least two of the Walker’s castors (any two) and fold down the stirrup. 7. Perform the standing manoeuvre and check that the harness pulls evenly on both sides; if not, adjust immediate- ly.
-
Page 8: Adjusting The Handles
4. Raising/Lowering the Frame The desired height is adjusted with Arrow <UP> or Arrow <DOWN>. Adjust bottom frame using <WIDER> arrow or <NARROWER> arrow. On products with Linak it is possible to select normal or high speed (single or double arrow). Handset from Linak and TiMOTION Plus also have charge indicator / battery Linak TiMOTION... -
Page 9: Control Box Wiring
9. Control Box Wiring TiMOTION Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. NOTE: Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged. - Page 10 11. LED on Control Box and Battery TiMOTION Control box – green light when power is available from battery/mains socket. Battery: • The LED flashes green during charging. • ON/OFF: To use the product, press ON. • The green lamp will begin to flash. •...
-
Page 11: Maintenance
12. Maintenance Recommended at least once per year Check that Action General The Walker feels firm/free from play. Clean with lukewarm soap solution or alcohol-based The Walker does not rattle during manoeuvres. cleaning agent (no petroleum products). The Walker is level and all of its castors are in contact with the floor. -
Page 12: Technical Specifications
13. General Maintenance Advice & Cleaning • Before use, check that the holder and belts are not bent (see Figure s3). • Before use, check that the harness is not more than 3 years old (see labeling). • Wipe the Walker and its armrests clean as necessary; use soap solution/surface disinfectant. •... -
Page 13: Warranty
16. Warranty We provide two years’ warranty for manufacturing faults (does not apply to wear parts). For further information or enquiries please contact: Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Tel: +46 (0)8-557 62 200 info.se@directhealthcaregroup.com... - Page 14 17. Electrical System - Technical Data (TiMOTION/Linak) Actuator Lift Widening Lift Widening Producer TiMOTION TiMOTION Linak Linak Voltage Push 2000N/1500N 1000N 1000N/1500N/ 1200N 2000N Pull 2000N/1500N 1000N 1000N/1500N/ 1200N 2000N Self-locking push 1000N 1000N Current 6.6 (+/-1,0)A 2.6 (+/-0,4)A 7A ut/7 A in 3A ut/3 A in Colour Black...
- Page 15 18. Hand Control Plus TiMOTION **1. Service indicator – flashes red after 11 months’ operation. Constant light (red) after 12 months’ operation. The indicator is a reminder to review the maintenance instruction (see Maintenance Instructions). This should be done at least once every 12 months. Reset: hold down buttons <2a>...
- Page 16 19. Parts List 58-306-L Armrestpad left 58-302 Bearing (x2) Cross section 58-305 Armrestpad center 58-353 Turn axle, beam 58-306-R Armrestpad right 57-776 Cover, Wheel 57-775 Washer, wheel 58-363 Frame/Armrest center 58-360 Cover, Wheelplate (PA) 58-304- Frame/Armrest center 58-354 Wheel mount beam (left/right) 57-352 Lock lever...
- Page 17 System I F U...
- Page 18 20. Accessories Art. Nr. Benämning 56-339-4-0 Manual brake, 2 handles 56-339-4-1 Manual brake, 1 handle 56-333-DB Standing plate, Short 56-383-DB Standing plate, Long 56-334 Dripstand, Chromed 56-334 Holder for Dripstand 56-336 Oxygen tube holder 56-337 Side support 56-338 Dripstand holder, Complete 56-387 Wheel w brake 75 mm 56-358...
- Page 19 21. Table of Symbols This product complies with the require- Visual Inspection ments of the Medical Device Regulation 2017/745 Medical Device Read the manual Caution Product Code Manufacturer information Batch Code Type BF, according to the degree of pro- The device is intended for indoor use tection against electric shock WEEE Symbol Class II Equipment...
- Page 20 Simple solutions for great results ® SystemRoMedic is the name of Direct Healthcare Group’s unique easy transfer concept, the market’s widest and most comprehensive range of clever, easy-to-use and safe transfer and lifting aids designed to make life easier, both for the ®...
