2.2.2 Reset Button

The reset button is used to restore the Camera to the original system state.
After you have opened the camera rear cover, press and hold the reset switch for over 15
seconds, and the Camera will be restored to the factory default setting.

2.2.3 TF Card

The TF card is for data storage.
Make the side with metal dots face downwards, and insert the card into the card slot.
When removing the TF card, if you push the card inside a little, and the card will be ejected

automatically.
Make sure that the TF card is removed when the Camera is not communicating or

transferring information; otherwise files will be corrupted and the TF card will be damaged.
2.3

Cables

2.3.1 Cable Preparation

Select video cables and video coaxial cables depending on the transmission distance.

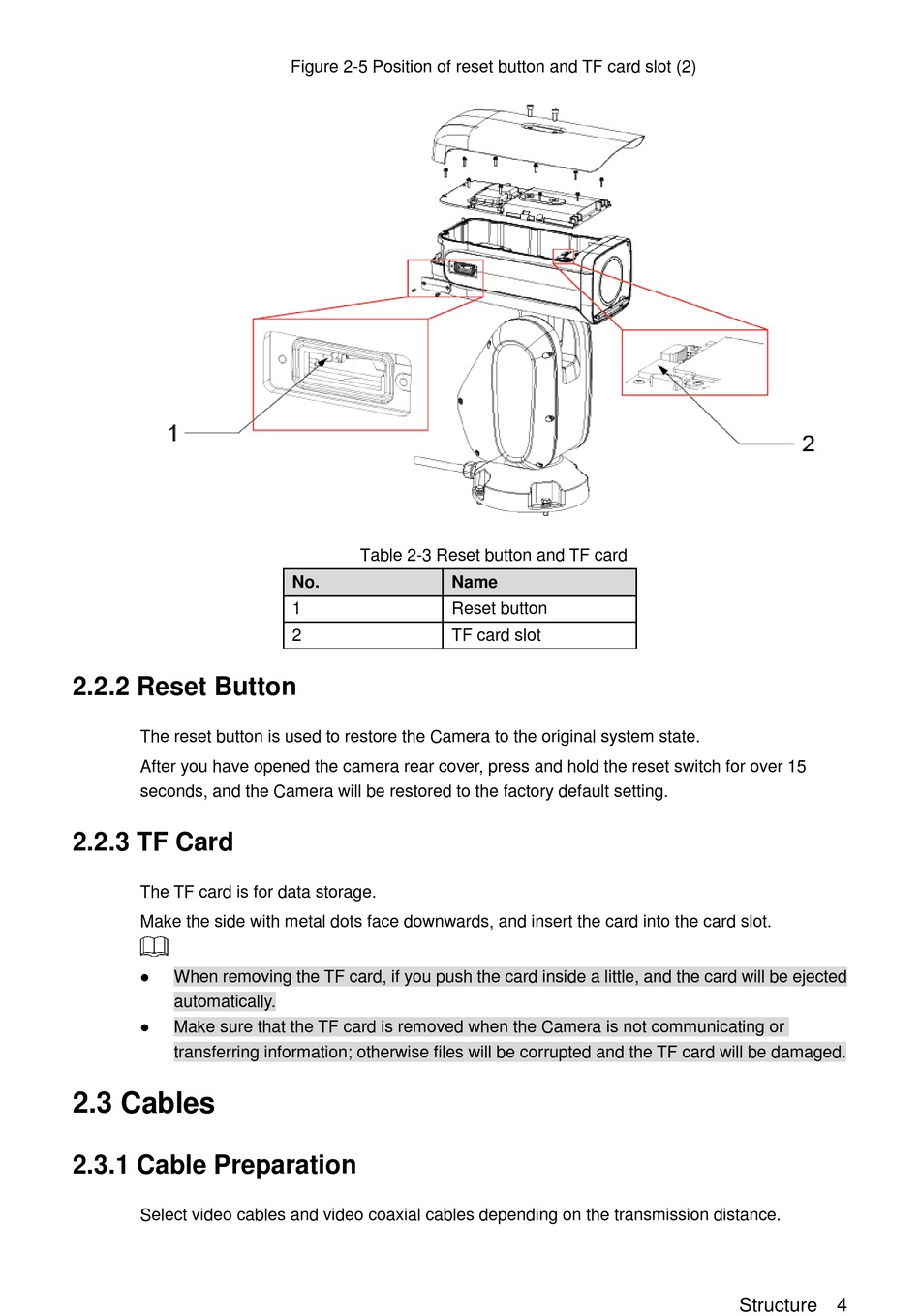

Figure 2-5 Position of reset button and TF card slot (2)
Table 2-3 Reset button and TF card
No. Name
1 Reset button
2 TF card slot
Structure 4
