11.Interact with Servo
?
/*
1
Interact with Servo
2

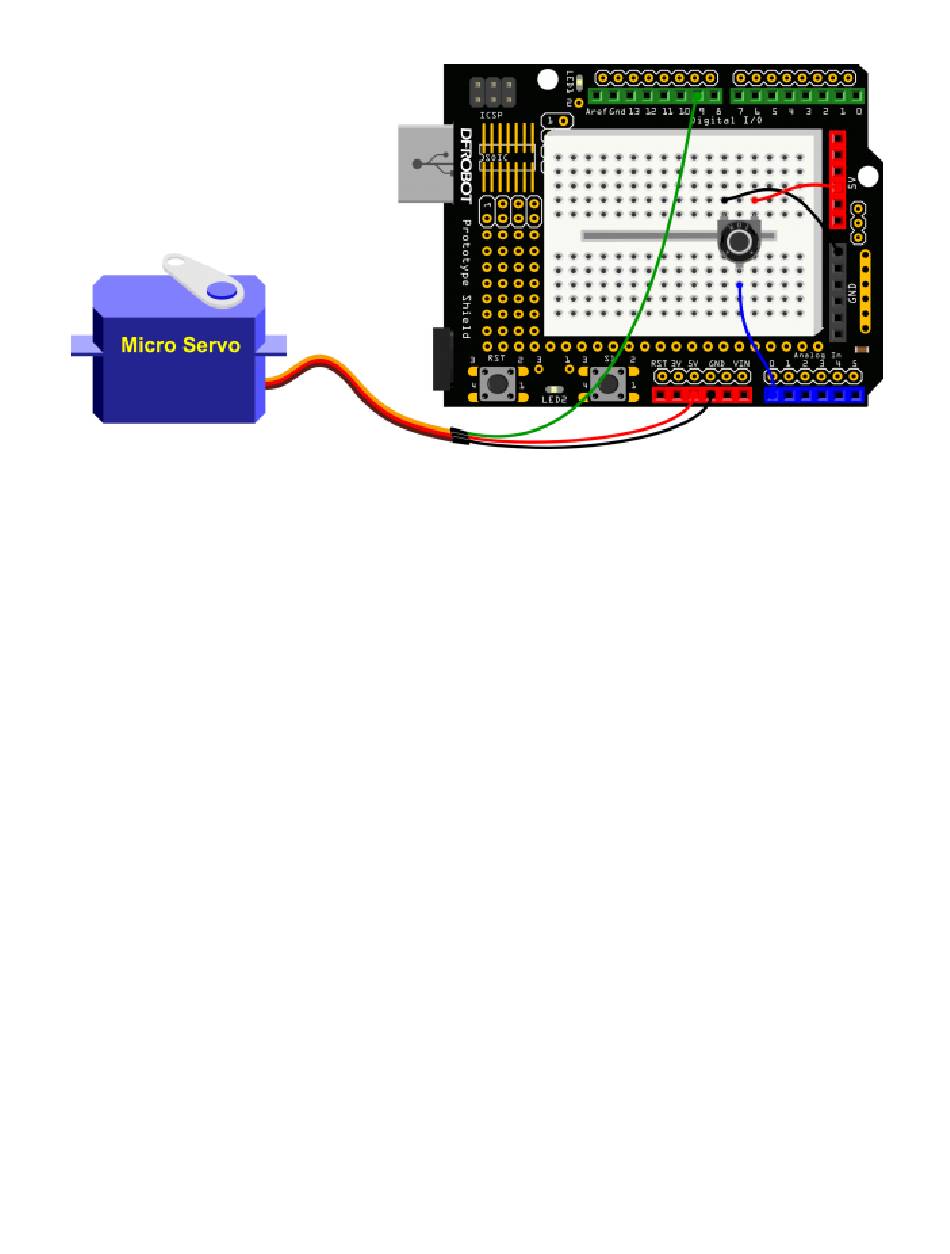

Controlling a servo position using a potentiometer (variable resistor)
3
by Michal Rinott <http://people.interaction‐ivrea.it/m.rinott>
4
*/
5
6
#include <Servo.h>
7
Servo myservo; // create servo object to control a servo
8
9
int potpin = 0; // analog pin used to connect the potentiometer
10
int val; // variable to read the value from the analog pin
11
12
void setup() {
13
myservo.attach(9); // attaches the servo on pin 9 to the servo object
14
}
15
16
void loop() {
17
val = analogRead(potpin); // reads the value of the potentiometer (value between 0 and
18
1023)
19
val = map(val, 0, 1023, 0, 179); // scale it to use it with the servo (value between 0 and
20
180)
21
myservo.write(val); // sets the servo position according to the scaled value
22
delay(15); // waits for the servo to get there
}
