- Page 1 MAX:BOT Installation Manual...
-
Page 2: Table Of Contents
Contents Say Hello ..........................1 STEP1 Install the DC motors ....................3 STEP2 Install the battery case ....................4 STEP3 Install the speaker ....................6 STEP4 Install the main board ....................8 STEP5 Install the wheels ....................9 STEP6 Install the supporting wheel ..................10 STEP7 Install the crash sensors ..................11 STEP8 Install the 3-channel line-tracking sensor .............12 STEP9 Install the ultrasonic sensor ..................13 STEP10 Install the lighting strings ..................15... -
Page 3: Say Hello

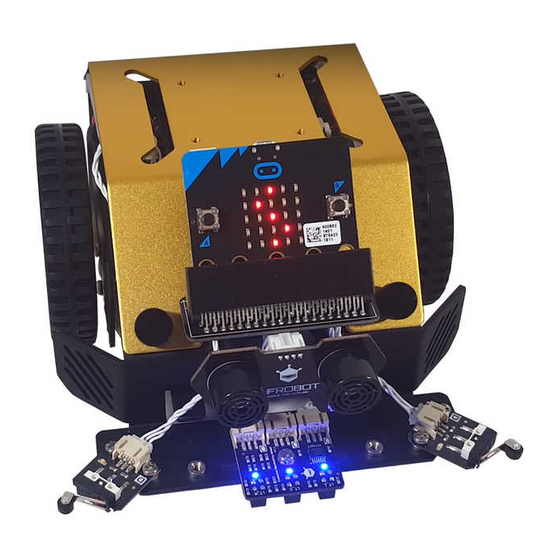

1/17 Say Hello Hello, my name’s Max:Bot. I’m made of a car body, two wheels, a main board, a Micro:bit, a ultrasonic sensor, a 3-channel line-tracking sensor and two crash sensors (see Figure 1). I was disassembled into many small parts for the convenience of transportation. Can... - Page 4 2/17 Wheel ×2 Main Board ×1 Crash Sensor ×2 Wire ×7 3-Channel Line- DC Motor ×2 tracking sensor ×1 Ultrasonic Sensor ×1 Lighting String ×2 MicroUSB ×1 Tools Once you have the equipment ready, let's start assembling the Max:Bot!
-
Page 5: Step1 Install The Dc Motors
3/17 STEP1 Install the DC motors Parts List DC Motor ×2, Car Body ×1, Small Cross Sleeve ×1 Assembly Guide (1) Fix the two DC motors to the bottom of the car body. (2) Pass the two motor wires through the back of the car body. -
Page 6: Step2 Install The Battery Case
4/17 STEP2 Install the battery case Parts List Battery Case ×1, Car Body ×1 Assembly Guide (1) Attach a Velcro to the bottom of the car body and the bottom of the battery case respectively. (2) Fix the battery base to the bottom of the car body and pass the wire of the battery case through the back of the car body. - Page 7 5/17...
-
Page 8: Step3 Install The Speaker
6/17 STEP3 Install the speaker Parts List Speaker ×1, Main Board ×1, Phillips Pan Head Screw ×8, Locknut ×4, Screwdriver ×1 Assembly Guide (1) Fix the four locknuts to the main board with four screws. (2) Connect the speaker to the main board. - Page 9 7/17 (3) Fix the speaker to the main board with four screws (Note: The speaker wire is hidden in the gap between the speaker and the main board).
-
Page 10: Step4 Install The Main Board
8/17 STEP4 Install the main board Parts List Main Board ×1, Car Body ×1, Phillips Pan Head Screw ×4, Screwdriver ×1 Assembly Guide (1) Connect the two motor wires and the battery wire to the main board (Note: The two motor wires are hidden in the gap between the main board and the car body). -
Page 11: Step5 Install The Wheels
9/17 STEP5 Install the wheels Parts List Wheel ×2, Car Body ×1, Phillips Pan Head Screw ×2, Screwdriver ×1 Assembly Guide Fix the two wheels to the two sides of the car body with two screws. -
Page 12: Step6 Install The Supporting Wheel
10/17 STEP6 Install the supporting wheel Parts List Supporting Wheel ×1, Car Body ×1, Phillips Pan Head Screw ×2, Screwdriver ×1 Assembly Guide (1) Assemble the supporting wheel. (2) Fix the supporting wheel to the bottom of the car body with two screws. -
Page 13: Step7 Install The Crash Sensors
11/17 STEP7 Install the crash sensors Parts List Crash sensor ×2, Car Body ×1, Wire ×2, Phillips Pan Head Screw ×2, Screwdriver ×1 Assembly Guide (1) Plug one end of the wire into the crash sensor. (2) Fix the two crash sensors to the car body with two screws and plug the other ends of the two wires into P13 and P16 on the main board. -
Page 14: Step8 Install The 3-Channel Line-Tracking Sensor
12/17 STEP8 Install the 3-channel line-tracking sensor Parts List 3-Channel Line-tracking Sensor ×2, Car Body ×1, Wire ×2, Phillips Pan Head Screw ×1, Screwdriver ×1 Assembly Guide (1) Plug one end of the wire into the line-tracking sensor. (2) Fix the line-tracking sensor to the car body with one screw and plug the other ends of the two wires into P14 and P15 on the main board. -
Page 15: Step9 Install The Ultrasonic Sensor
13/17 STEP9 Install the ultrasonic sensor Parts List Ultrasonic Sensor × 1, Car Body × 1, Phillips Pan Head Screw × 2, Locknut × 2, Screwdriver ×1 Assembly Guide (1) Wire the ultrasonic sensor and main board. (2) Screw the two locknuts into the front of the car body. - Page 16 14/17 (3) Fix the ultrasonic sensor to the car body with two screws.
-
Page 17: Step10 Install The Lighting Strings
15/17 STEP10 Install the lighting strings Parts List Lighting String ×2, Car Roof ×1, Double-sided Tape ×1 Assembly Guide (1) Stick two pieces of double-sided tape to the car roof. (2) Attach the two lighting strings to the double-sided tape on the car roof (Note: Make sure the lighting string faces the correct direction). -
Page 18: Step11 Install The Car Roof
16/17 STEP11 Install the car roof Parts List Car Roof ×1, Car Body ×1, Screw ×2 Assembly Guide (1) Plug the two wires of the lighting strings into P5 and P11 on the main board. (2) Fix the car roof to the car body with two screws. -
Page 19: Step12 Install The Micro:bit
17/17 STEP12 Install the Micro:bit Parts List Car Body ×1, Micro:bit ×1 Assembly Guide Plug the Micro:bit into the main board (Note: Make sure the Micro:bit faces the correct direction).
