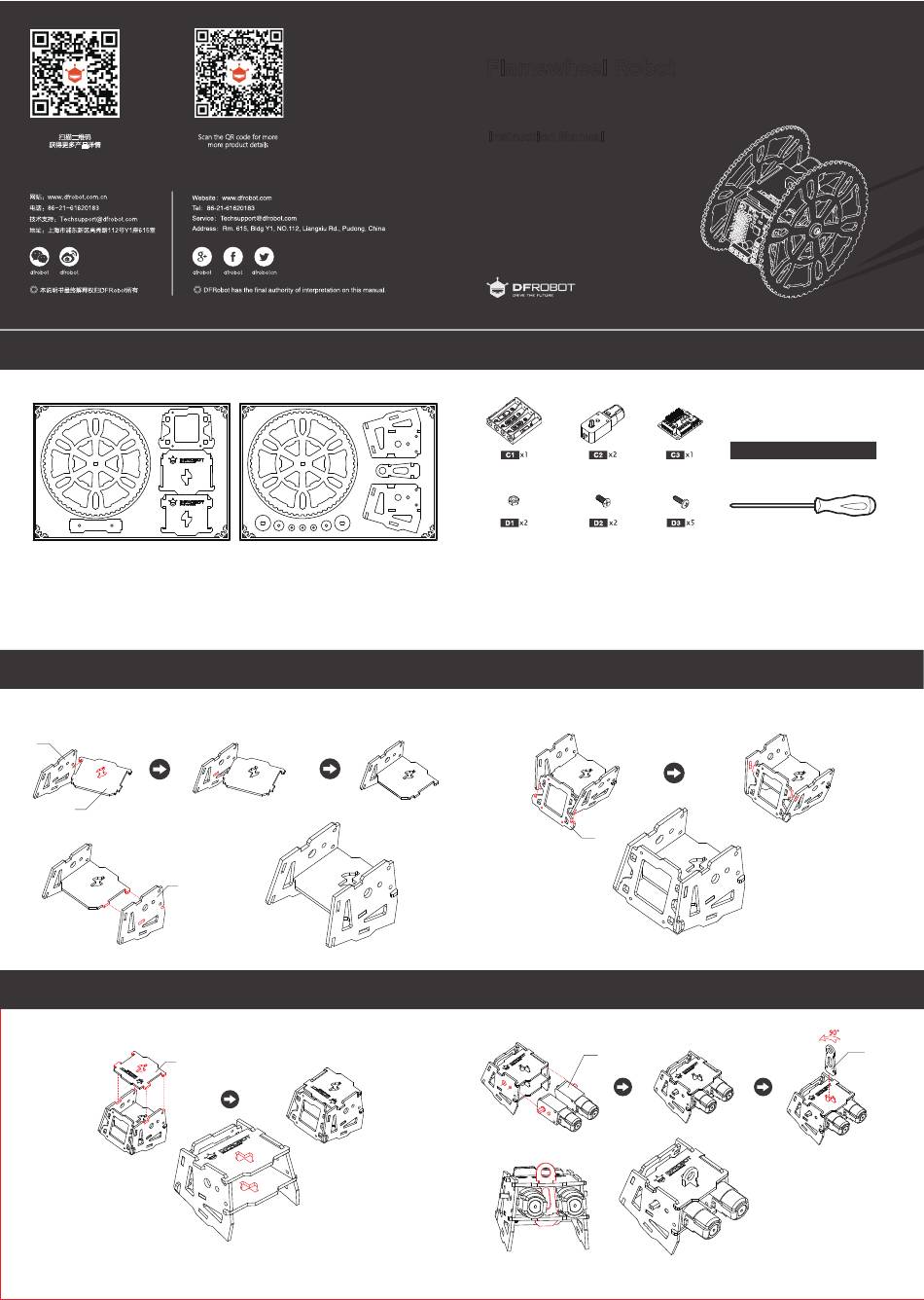

DFRobot Flamewheel Robot Instruction Manual

扫描二维码
获得更多产品详情
A5
A
A4
请按组装顺序依次拆卸零件。
* 6岁以下儿童请在家长陪同下完成，避免发生吞食情况。
Please follow the sequence of the assembling to disassemble the parts.
Children under six years must be in the company of parents to avoid ingestion.
*
1
请按A1红色图标位置放置零件。
Please follow the A1 red instruction to set the part.
B1
A1
B2
3
请按A3红色图标位置放置零件。
Please follow the A3 red icon instruction to set the part.
A3
5
Scan the QR code for more
more product details
B5
A2
A1
B
A3
B4 B6 B7 B7 B7 B6 B4
请检查红色图标位置是否一致。
Please check and confirm the position of red icon in accordance.
风火轮机器人
Flamewheel Robot
安装手册
Instruction Manual
B2
B3
B1
请检查A2圆孔位置是否正确。
Please check and confirm the position of
A2
C2
所需工具 / Tools Required
* 套件不含工具和电池
* The suite does not contain tools and batteries.
M3 十字螺丝刀
M3 Cross Screwdriver
A2 circular holds.
如结构有松动，属正常现象。
It is normal that the structure is untighten.
请按图示方向将B3用力旋转90°。
Please follow the instruction
to rotate B3 90°
2
4
90°
B3
by some force.
6
