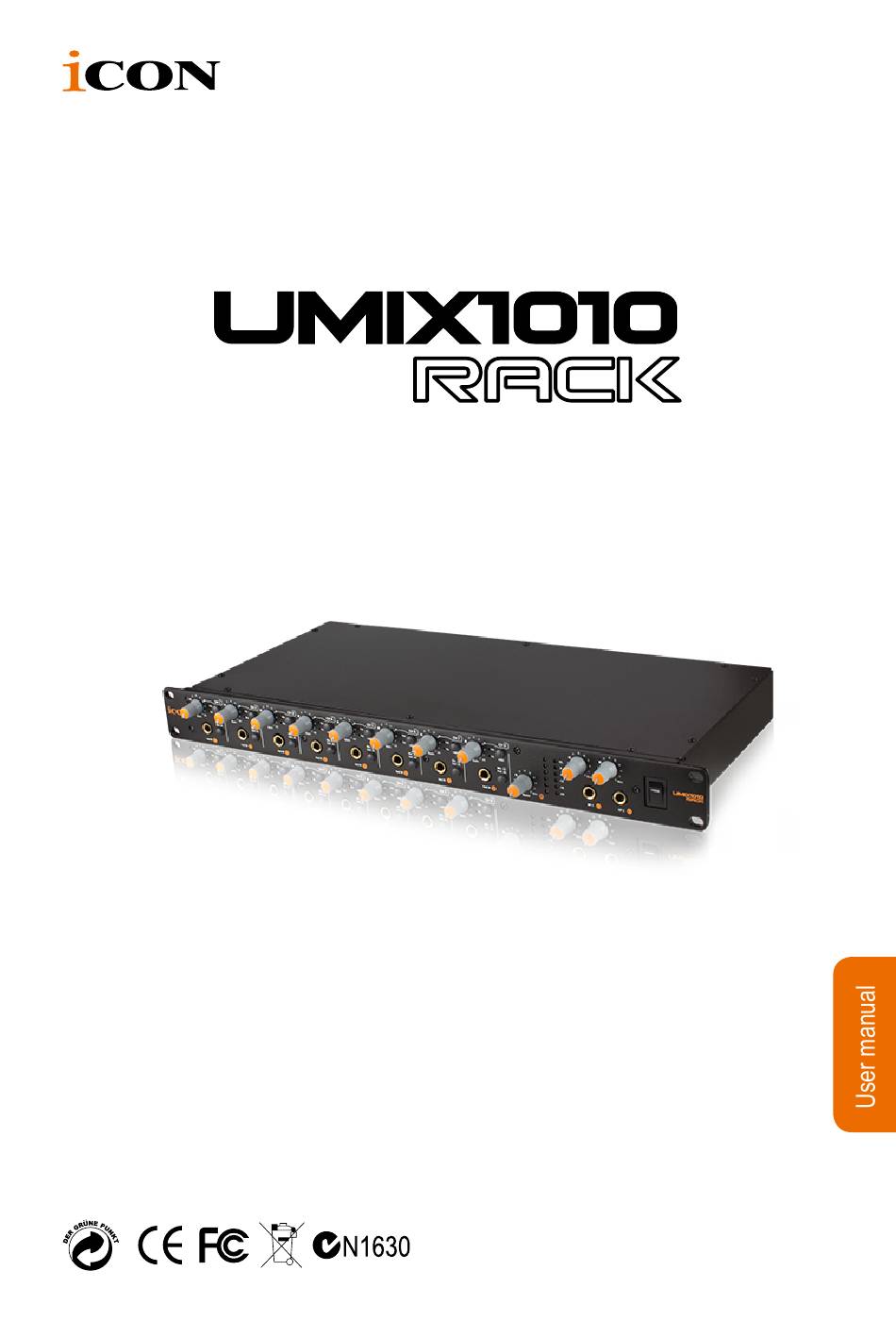

  • Page 1 10-In / 10-Out with +48V Phantom Power Recording USB Interface.
  • Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.

  • Page 3: Table Of Contents

    Contents Introduction ....................4 What's in the package? ................4 Features ....................5 Front Panel ....................6 Rear Panel....................8 Mac driver installation ................10 Software control panel ................12 Windows driver installation ..............13 Software control panel ................16 Hardware Connections ................20 Minimum System Requirements.............21 Specifications ..................22 Services ....................23...

  • Page 4: Introduction

    You'll also find a warranty card enclosed---please don't forget to fill it out and mail it so that you can receive online technical support at: www.icon-global.com. And so we can send you updated information about these and other ICON products in the future. As with most electronic devices, we strongly recommend you retain the original packaging.

  • Page 5: Features

    Features The ICON Umix 1010 Rack USB recording interface provides an audio input and output module with USB connectivity. Main features include: ● 24-Bit 96/192KHz 10-In/10-Out USB Recording Interface ● 8x8 analog I/O full duplex recording and playback ● 8 x MIC/Instrument preamps with individual gain control and phantom power switch ●...

  • Page 6: Front Panel

    Front Panel 1. HI-Z input This is a high impedance input for guitar/bass. 2. “HI-Z/MIC” input switch Mic or HI-Z input switch for input 1-8. 3. Input gain level controls 1-8 These potentiometers control the input level of their associated analog Mic/Inst/ Line input.
  • Page 7 8. Output level metering Showing the output level for the master channel. 9. Headphone level control 1-2 These potentiometers control the output level of the associated headphone output. 10. Headphone output 1-2 These output jacks accept a standard 1/4″ stereo TRS headphone connector.

  • Page 8: Rear Panel

    Rear Panel 1. Mic/Inst” inputs 1-8 Balanced mic/Line level inputs. These hybrid connectors will accept a standard 3-pin XLR plug or a 1/4” TS connector. 2. Line outputs 1-8 These are balanced analog outputs on standard 1/4″ TS connectors at +6dBU line level.
  • Page 9 6. 12V/3A power adaptor Connect the provided power adaptor here. Note: Umix 1010 Rack is not able to work without the provided power adaptor connected. The USB bus power is not able to provide sufficient power supply for Umix 1010 Rack.

  • Page 10: Mac Driver Installation

    Mac driver installation Please follow the step-by-step procedures below to install your Umix1010 Rack USB recording interface and its driver. 1. Turn on your Mac Note: Do not connect the Umix1010 Rack digital audio interface to your Mac yet Diagram 1 2.
  • Page 11 Open the “Audio MIDI setup” window and check if the Umix1010 Rack device has setup properly as shown below in diagram 9. If your Umix1010 Rack device does not appear on the system settings. It means the driver did not install properly, go through the “Driver Installation”...

  • Page 12: Software Control Panel

    Software control panel The “Playback” and “Monitor” mixers work like a matrix mixer. Activate and adjust the correspondence input or output channel level. They are very useful and make your inputs and outputs very flexible. You may route any of your input(s) to any output(s). Playback Mixer 1.

  • Page 13: Windows Driver Installation

    Windows driver installation Please follow the step-by-step procedures below to install your Umix 1010 Rack USB recording interface and its driver. 1. Turn on your computer Note: Do not connect the Umix 1010 Rack digital audio interface to your computer yet 2.
  • Page 14 5. Confirm driver installation A confirmation on the driver installation screen will appear, click “Next”. Diagram 15 6. Driver setup Driver setup Choose the location of the driver and click "Next" as shown in Diagram 16 Diagram 16 7. Installation start The installation process has started.
  • Page 15 9. Setup completed A window as shown in Diagram 19 should appear. Choose "Next”. Diagram 19 10. Connect your Umix 1010 Rack digital audio interface Now connect the Umix 1010 Rack digital audio interface to your computer's USB port and click "Finish".

  • Page 16: Software Control Panel

    Software control panel 1. Sample rate settings Select your desired sampling rate from 44.1kHz to 192kHz on the pull down window shown in Diagram 24. Click "Apply" after the selection has been made to set the value. Diagram 24 2. Buffer Size settings You may select the buffer size for "Streaming"...
  • Page 17 Monitor Mixer 1. Hardware input level metering Ch 1-8 & S/PDIF input level metering Showing the input level for the hardware input channel. 2. Hardware output level metering Ch 1-8 & S/PDIF output level metering Showing the output level for the hardware output channel. 3.
  • Page 18 9. Inputs & Outputs Matrix Mixer "Check" the box to activate the mixer. 10. Inputs & Outputs Matrix Mixer Gain Control Adjust the gain for the corresponding hardware channel. After finishing the adjustment, click "Close" to close the window. Playback Mixer 1.
  • Page 19 6. “0dB” switch Switch to instantly adjust the corresponding channel to “0dB” level. 7. Gain control fader Slide to adjust the gain level for the corresponding channel. 8. Inputs & Outputs Matrix switches Switch to turn On/Off the corresponding hardware input channel route to the corresponding hardware output channel.

  • Page 20: Hardware Connections

    Hardware Connections Connect the Umix 1010 Rack digital audio interface outputs to your amplifier, powered monitors or surround system. Two-channel stereo operation, the default outputs are channels 1 and 2. If you are monitoring through headphones, connect your headphones to the device’s headphone output.

  • Page 21: Minimum System Requirements

    Minimum System Requirements Important: The Umix 1010 Rack digital audio interface is supported by Mac OS (Intel-Mac), Windows XP, Windows Vista Windows 7 and Windows 8 (32-bit/64- bit). The Umix 1010 Rack digital audio interface is not supported by Windows 98 or Windows Me.

  • Page 22: Specifications

    Specifications Mic/Inst 1-8 Inputs (Balanced; at Minimum Gain) Frequency Response ..........22Hz to 22kHz (+/-0.1dB) Dynamic Range ............100dB, A-weighted Signal-to-Noise Ratio..........-100dB, A-weighted THD+N ..............<0.0048% (-90dB) Crosstalk..............-100dB @ 1kHz Input Impedance: Inst in .......... 390K Ohms, typical; Mic in ..........

  • Page 23: Services

    3. Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing.
