Inscape Data AirGoggle NVC 800 Quick Reference Manual

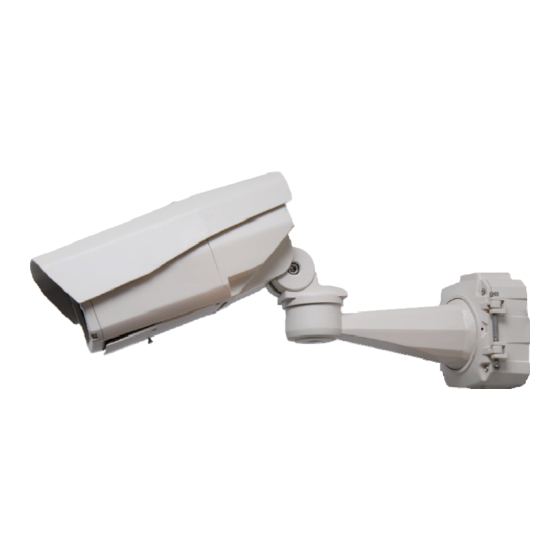

Vandal resistant weather proof ir network camera
Hide thumbs Also See for AirGoggle NVC 800:

Advertisement

Quick Links

Download this manual
Quick Reference Guide
NVC 800
Vandal Resistant
Weather Proof
IR Network Camera
Rev.2.0 (November 2010)

Advertisement

loading
Need help?

Need help?

Do you have a question about the AirGoggle NVC 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inscape Data AirGoggle NVC 800

Summary of Contents for Inscape Data AirGoggle NVC 800

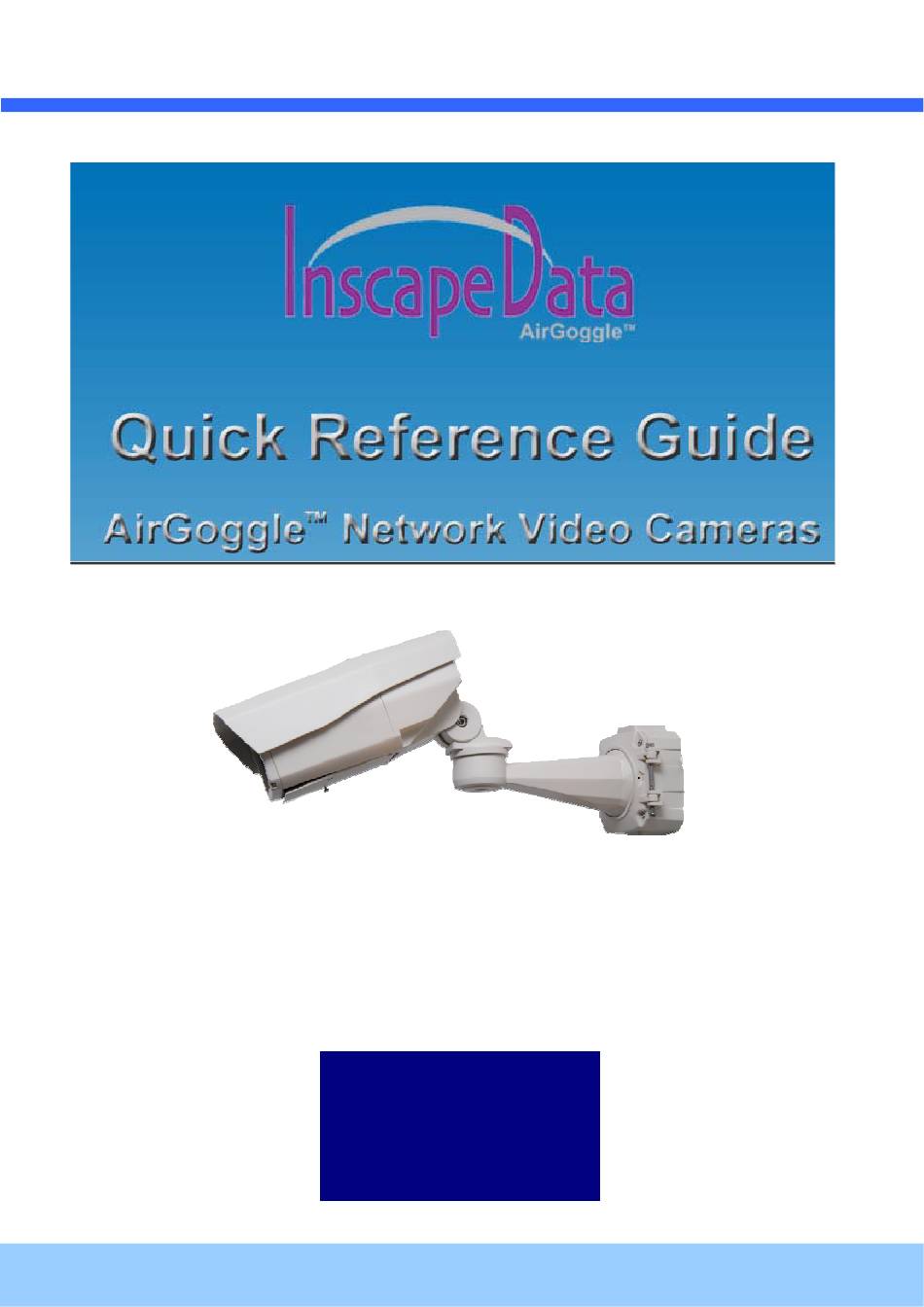

  • Page 1 Quick Reference Guide NVC 800 Vandal Resistant Weather Proof IR Network Camera Rev.2.0 (November 2010)
  • Page 2 Please check to make sure the following items are in the box. NVC 800 1. Camera main body 2. CD(Manual, S/W) 3. Wall type bracket 1EA 4. Weather Proof Rubber Plug 5. Quick Install Guide 6. Power Supply NVC 800 IP-Installer NVR100 Video Surveillance Software...
  • Page 3 1.3.1 Mechanical Diagram Sun visor Fixing Bolt Sun visor Body Cables(Power/UTP) Protective Sheet (Remove it before operating Camera) Cables(Power/UTP) Bracket Fig. 1-1 I/O ports of the NVC 800 series network camera Rev.2.0 (November 2010)
  • Page 4 . Power adapter which is compliant to the specification for NVC 800 should DC12V be used. Misuse of power supply can cause damage to NVC 800. INSCAPE DATA assumes no responsibility for misuse of the power supply. Ground Rev.2.0 (November 2010)

  • Page 5: Installation And Configuration

    2. Installation and Configuration Brief information for rapid installation is provided in this section. For more detailed information you are recommended to refer to pertinent documentations provided with the product or refer to Inscape Data’s home page (http://www.Inscape Data.com) 1. Apply power to NVC 800 and Connect NVC 800 to LAN like the following picture.
  • Page 6 Page Parameter Setup value Factory default value Set the resolution of the video transmitted Video Size from NVC 800. Make sure that you press Check Set this value smaller than the upload Max Upload Rate button to find out the number of Basic speed of your network.
  • Page 7 6. Remote video connection to NVC 800 Run NVR100 on your PC. Before connecting to NVC 800 it is needed to configure the connection information on the NVR100. More detailed information of using “NVR100” can be found in [NVR100 User’s Guide].
  • Page 8 Fig 3-2 NVR100 IP Address Setting Mode ④ Click the start button, , and the live video connected to the unit will be transmitted and appear on your pc screen as shown in Fig 3-3. Fig 3-3 Showing Live Images via NVR100 Rev.2.0 (November 2010)

  • Page 9: Reference Guide

    The NVC 800 is designed to be accessed via Internet Explorer version 5.0 or better and/or the NVR100 software. In order to access the unit, you must type in the appropriate IP address in the browser. Fig 3-4 is an example of the web interface. Fig 3-4 Viewing the Live Video via Web Viewer Rev.2.0 (November 2010)

  • Page 10: Preparations For The Installation

    Preparations for the installation 1. Make a hole on the wall 2. Insert the screw anchors. 3. Fix the screws. Rev.2.0 (November 2010)
  • Page 11 How to Set Lens Functionality Slide to Open the Top cover up 1. Focus control lever 2. Zoom control lever 3. BLC:Back Light Compensation ON/OFF Switch 4. FLK : Flickerless ON/OFF Switch 5. LED : IR LED Beam Strength Control Normal/Hi Switch 6.
