Inscape Data's Power over Ethernet surge suppressor and injector is purpose built to protect Ethernet enabled
electronics and equipment from lightning and harmful transient voltages. It is designed with low impedance and
insertion loss to minimize data packet loss and information integrity as it travels across the lines. Polymer data line
protection allows data transmission speeds up to 100 MBPS.

Package Contents

• PES100 / PIP100 / PIS200
• Ground Wire
• Installation Guide / Warranty

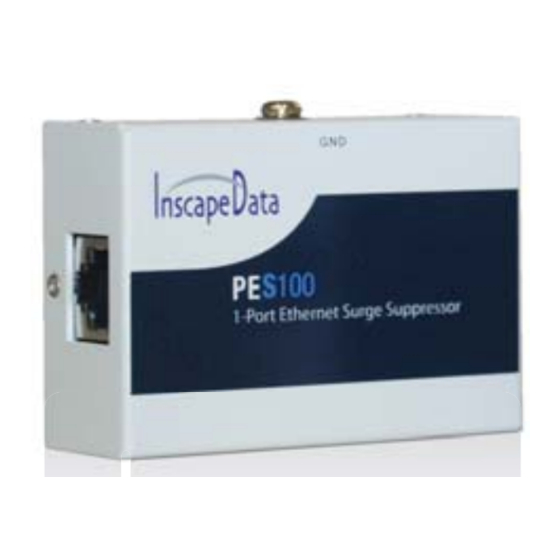

PES100

(See Figure 1)
This is an Ethernet In-Line Surge
Suppressor with support up to
48VDC PoE Protection. Data and
power are both protected by the
PES100. Connect the RJ45
accordingly then secure the
ground wire to an appropriate
grounding point.

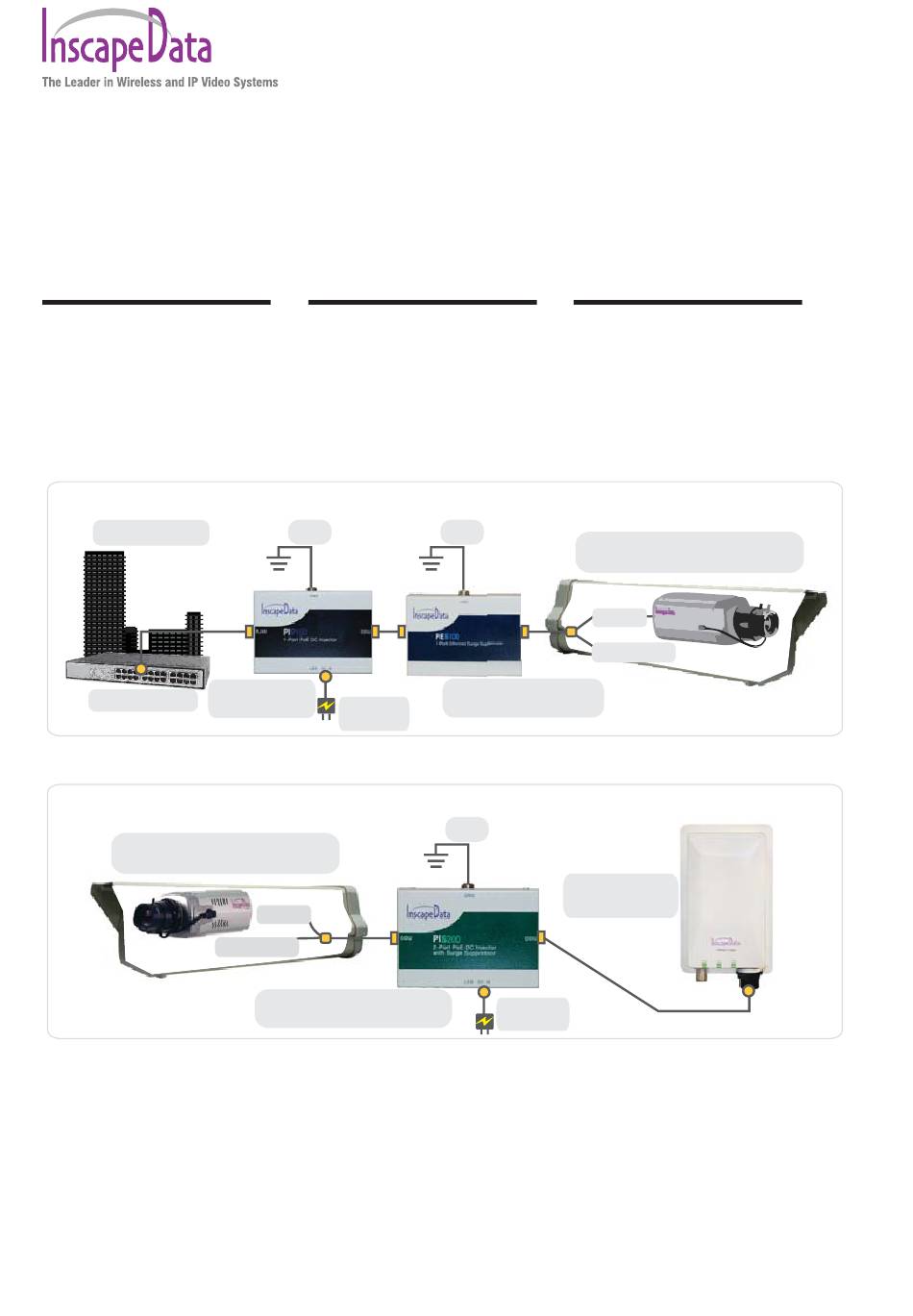

PIP100 & PES100 System Configuration for Outdoor Video Camera Applications
Control Center
PIP100 1-Port
Network Switch
PoE DC Injector

PIS200 System Configuration

PoE Enabled Camera Housing
PCH100HB or PCH200HB or PCH300HB
Caution:
Powering two devices with dissimilar voltage with PIS200 may damage the interconnected device. Please take caution to ensure
voltage compatibility. For example, it is not recommended to use one 12VDC PoE device and one 48VDC PoE device.
Caution:
Surge protection effectiveness is directly related to the quality of the grounding point. Not securing the grounding point to an
appropriate ground will leave the device unprotected.
Inscape Data Corporation
United States Headquarters 1611 South Main Street, Milpitas, CA 95035, U.S.A.
+1.408.935.8500
PHONE
TOLL FREE
Asia Headquarters Inscape International Co., Ltd 9F, No 358, Jhonghe Rd., Jhonghe City, Taipei County 235, Taiwan, R.O.C.
+886.2.2924.0868
PHONE
FAX
PES100 / PIP100 / PIS200
QUICK INSTALLATION GUIDE

PIP100

This is a one port Power over
Ethernet Injector with voltage
support up to 48VDC. The port
labeled "ODU" provides power
and "RJ45" provide data
connectivity. Connect the RJ45
jacks accordingly then secure the
ground wire to an appropriate
grounding point.
GND
Power Input
12VDC
Simultaneous Surge Suppression and Power Injection to Two Devices
Camera
Heater/Blower
PIS200 2-Port PoE DC Injector
with Surge Suppressor
1.888.267.4507
+1.408.935.8900
FAX
+886.2.2924.4385
(See Figure 1)
GND
PES100 1-Port Ethernet
Surge Suppressor
Figure 1
GND
Power Input
12VDC
Figure 2
sales@inscapedata.com
EMAIL

PIS200

(See Figure 2)
This is a two port Power over
Ethernet Injector with Voltage
support up to 48VDC. It is used
to power two PoE devices with
the same DC PoE voltage. Data
and power are both protected by
the PIS200.
PoE Enabled Camera Housing
PCH100HB or PCH200HB or PCH300HB
Camera
Heater/Blower
SB54 or Other
Wireless Products
