Summary of Contents for Inscape Data AirGoggle NVC800

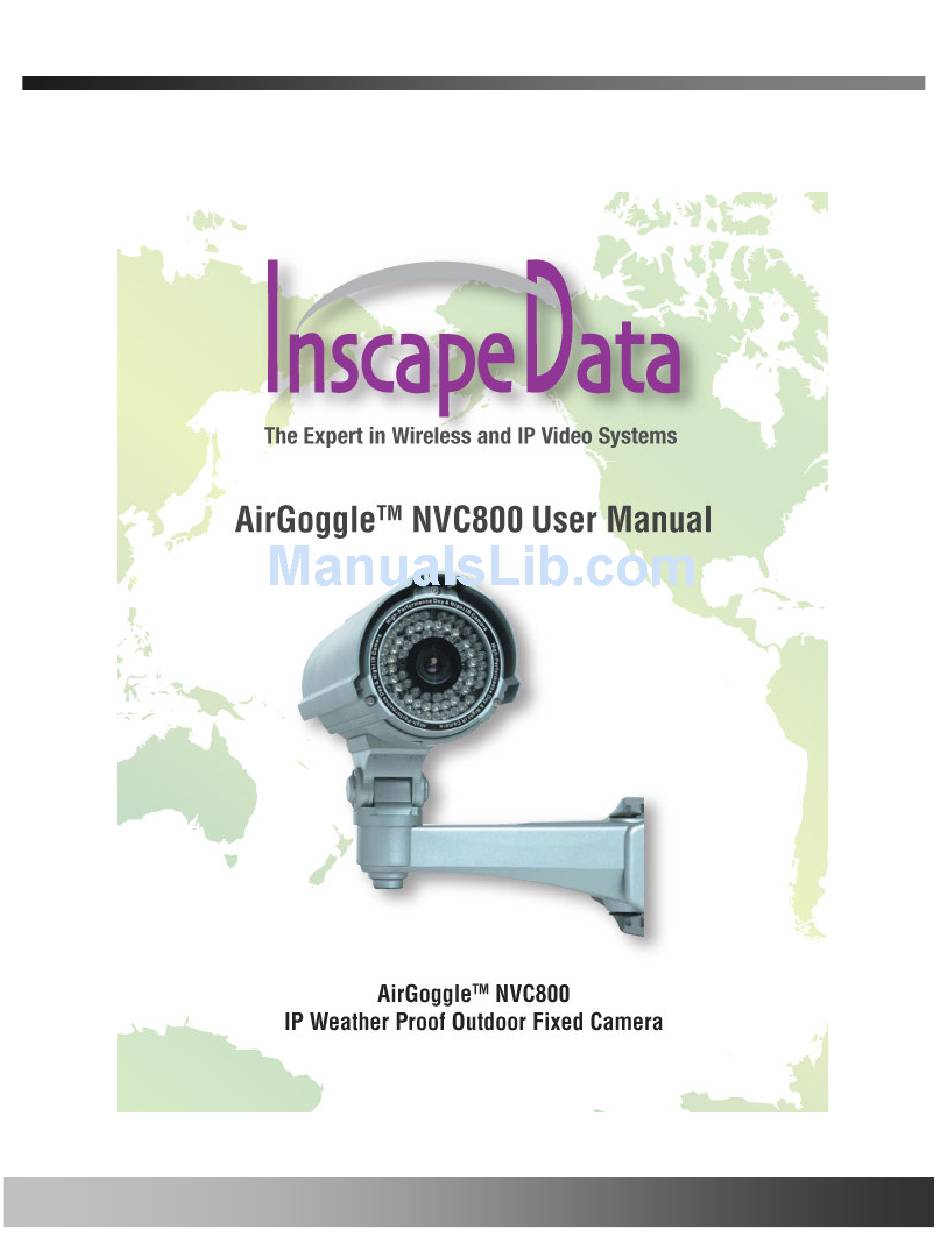

  • Page 1 NVC 800 User’s Guide Rev0.1(Dec.2007)
  • Page 2 NVC 800 User’s Guide Directions NVC 800 series network cameras are designed for outdoor/indoor use. Don’t use NVC 800 in an environment beyond the condition limit. Be careful not to cause any physical damage by dropping or throwing the NVC 800 network camera. Especially keep the network camera out of reach of children.
  • Page 3 NVC 800 User’s Guide Warning & Caution If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by trained personnel. Always stop using when the product emits smoke or abnormal heat.
  • Page 4 NVC 800 User’s Guide Revision History Date Rev. No Description 2007-12-19 Creation of the document Rev0.1 (Dec.2007)
  • Page 5: Table Of Contents

    NVC 800 User’s Guide Table of Contents 1. Introduction ................................. 6 1.1. Overview........................... 6 1.2. Features of NVC 800 ......................6 1.3. Applications of NVC 800 ....................7 2. Product Description............................. 8 2.1. Package Contents ......................8 2.2. Preview..........................8 2.3.
  • Page 6: Introduction

    NVC 800 User’s Guide 1. Introduction 1.1. Overview The NVC 800 is a state-of-the-art Speed Dome network camera which transmits synchronized video and audio data in real time with D1 resolution at full frame rate. This is possible through MPEG4 CODEC technology, which provides high quality video with highly compressed data streams.
  • Page 7: Applications Of Nvc 800

    NVC 800 User’s Guide 1.3. Applications of NVC 800 IP surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc., Real time Internet broadcasting Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.,) Teleconference (Bi-directional audio conference) Remote Learning Weather and environmental observation Rev0.1 (Dec.2007)
  • Page 8: Product Description

    NVC 800 User’s Guide 2. Product Description 2.1. Package Contents Open the package and check if you have the followings: 1. Camera main body 2. CD(Manual, S/W) 3. Wall type bracket 1EA 4. Anchor & Screw 8 * 35 4EA 5.
  • Page 9: Physical Description

    NVC 800 User’s Guide Pentium IV 1.8G above 512MB above Main Memory Windows XP or later Operating system Web browser Internet Explorer 6.0 above 1024 X 768 Resolution Network 10/ 100 Base-T Ethernet * Operating Systems supported : Windows 2000 Professional Windows XP Professional / Windows XP Home Edition 2.4.
  • Page 10 NVC 800 User’s Guide Fig.2-1 detailed view of nvc800 -Connector 100 Base T : RJ-45 connector for connecting LAN (100 Base-T) Pin Name Description 1 Relay output Relay_CM . Use the two pins to connect the alarm annunciating device such as sirens, Relay_NO flashing light, etc., to network camera.
  • Page 11 . Power adapter which is compliant to the specification for NVC 800 should DC12V be used. Misuse of power supply can cause damage to NVC 800. INSCAPE DATA assumes no responsibility for misuse of the power supply. Ground 2.4.2 Dimension and basic parts of NVC 800 Fig 2.2 Dimension of NVC 800 (unit : mm)
  • Page 12 NVC 800 User’s Guide Type Dual CCD moving IR Camera 1/3"Sony super HAD CCD Image Sensor 1/3" EX-View CCD for B/W Number of NTSC 786(H) * 494(V) Pixels 752(H) * 582(V) NTSC 6.35µm(H) x 7.4µm(V) Cell Size 6.5µm(H) x 6.25µm(V) More Than 500TV Lines (Ex-View B/W up to 600 Lines) Horizontal resolution TV type...
  • Page 13: Quick Installation Guide

    2.6. Quick Installation Guide Brief information for rapid installation is provided in this section. For more detailed information you are recommended to refer to pertinent documentations provided with the product or refer to Inscape Data’s home page (http://www.inscapedata.com) 1. Apply power to NVC 800 and Connect NVC 800 to LAN like the following picture.
  • Page 14 NVC 800 User’s Guide mode can be found in [5. Configuring NVC 800 in Administrative Mode]. Among the parameters, the parameters in the following table should be set-up with proper values. Detailed information for the parameters in Administrator Mode is found in [5.
  • Page 15 NVC 800 User’s Guide annunciating device Connect NVC 800 to the network, LAN, Network Network connection ADSL or Cable modem. Supply DC power Apply DC12V power to network camera DC12V 6. Remote video connection to NVC 800 Run NVR100 on your PC. Before connecting to NVC 800 it is needed to configure the connection information on the NVR100.
  • Page 16: Connecting Nvc 800 To Ip Network

    NVC 800 User’s Guide 3. Connecting NVC 800 to IP Network NVC 800 supports LAN, xDSL, and Cable modem. It also supports shared IP environment where single IP address is shared by at least 2 IP devices. Refer to [IP-Installer User’s Guide] for details of setting the IP address for NVC 800.
  • Page 17: Connecting To Xdsl/Cable Modem

    NVC 800 User’s Guide other IP sharing devices sit in-between the client and the IP video products. For more detailed information regarding the use of IP sharing device refer to the document [Use of Private IP network using IP-sharing- device]. ②...
  • Page 18 NVC 800 User’s Guide user over e-mail when the IP address is changed in floating IP environment, you have to assign the e- mail address when user name and password are input using IP-installer. (Management server provides a convenient way of connecting to your network camera under dynamic IP environment. Please refer to the Application note regarding “Management Server”...
  • Page 19: Ip-Installer

    NVC 800 User’s Guide 4. IP-Installer NVC 800 needs IP network parameters for connection to the network(Internet/Intranet). IP-Installer is a PC program for the initial network configuration to IP video products such as Network Camera or A/V Server. IP- Installer is provided in a CD supplied with NVC 800 or it can be downloaded from “http://www.inscapedata.com”. Detailed information of Installing and running IP-installer can be found in [IP-installer user’s guide] 4.1.
  • Page 20: Configuring Nvc 800 In Administrative Mode

    NVC 800 User’s Guide 5. Configuring NVC 800 in Administrative Mode 5.1. Log On There are 2 ways of connecting to NVC 800 administrative mode. One is through Internet Explorer and the other is through “NVR100” program. 1. Using Internet Explorer Type in the connection address of the network camera in the address window of the Internet Explorer as followings: http://[NVC 800 IP address]/admin.htm...
  • Page 21 NVC 800 User’s Guide 3. Input User Name and Password in the display screen shown in Fig. 5-2. Fig. 5-2 Log On Screen Factory default User Name and Password are set as ‘root’ and ‘root’, respectively. Click on “OK” button to enter into the Basic Setup page of Administrative Mode.
  • Page 22: Basic Setup

    NVC 800 User’s Guide 5.2. Basic Setup Setup the basic parameters of the NVC 800. This feature is not applicable. Fig. 5-3 Basic Setup Sub Field Field/Button Description /Button Language Select a language of your choice Logical name of the NVC 800. It is same as the one set-up by IP- System Name installer.
  • Page 23 NVC 800 User’s Guide Select the type of input audio. Audio Input Select Line In for using Line-out from audio devices. Selection Select Mic for using microphone. Input Video This filed is set by the factory. Source Select a video size for transmission NTSC (30frames/sec Max.) : 176x144 / 352x240 / 720x480.
  • Page 24: Network Configuration

    NVC 800 User’s Guide 5.3. Network Configuration Setup the network parameters appropriately in accordance with your network environment. Many of the parameters in this page are same as those set up by “IP-Installer”. Rev0.1 (Dec.2007)
  • Page 25 NVC 800 User’s Guide Fig. 5-4 Network Configuration Sub Field Field/Button Description /Button The network types supported by the NVC 800 are LAN(fixed IP), PPPoE, and DHCP(automatic IP allocation) When the network environment is fixed IP, select ‘LAN’ in the network type, and put the IP address, Subnet Mask, Gateway, DNS1 and Static IP Setup DNS2.
  • Page 26 NVC 800 User’s Guide this value to 255.255.255.255. If you check this, the IP address will be sent via E-mail whenever the Notify for IP IP address changes. It is sent to the E-mail address set by “Recv E- Change Mail Address”.
  • Page 27: User Admin & Time Setup

    NVC 800 User’s Guide 5.4. User Admin & Time Setup You can change the ID and password of users and also assign different attributes for each user. Fig. 5-5 User Administrator & Time Setup Sub Field Field/Button Description /Button User Admin ID.
  • Page 28 NVC 800 User’s Guide Username Administrator Admin password. The default password is “root”. password : Administrator Enter the password once more to confirm the password. Confirm Password Add User Enter the user ID you want to add. Up to 100 users are supported by Username NVC 800.
  • Page 29 NVC 800 User’s Guide Current Time It shows you the current time of NVC 800. Synchronize Synchronize the time with the internet time server at the right. When the with an time server is out of the reach from NVC 800, you can assign time server Internet Time by filling in Specific Time Server field.
  • Page 30: Sensor & Capture Setup

    NVC 800 User’s Guide 5.5. Sensor & Capture Setup This is the setup page for sensors and video capture conditions. Captured video can be sent to user by FTP or E- mail upon configuration. Fig. 5-7 Sensor & Capture Setup Sub Field Field/Button Description...
  • Page 31 NVC 800 User’s Guide Sensor Select Check to enable Sensor initiated capture. Motion Check to enable motion detection initiated capture. Detection Select Select a way of sending captured video. You can send captured video through FTP or E-mail, or both. Check to send captured video by e-mail.
  • Page 32: Alarm Device Setup

    NVC 800 User’s Guide 5.6. Alarm Device Setup Test the alarm output and describe the condition of alarm annunciation. Sensor related alarm operation, alarm device can operate only when the sensor is active at least over 2 seconds. Fig. 5-8 Alarm Device Setup Sub Field Field/Button Description...
  • Page 33 NVC 800 User’s Guide Check at the box at the left of to allow alarm generation upon sensor Sensor input. Check at the box at the left to allow alarm generation upon Motion Motion detection Set the duration of Alarm annunciation. Duration 10 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 30 min, 1 hour.
  • Page 34: Motion Region Setup

    NVC 800 User’s Guide 5.7. Motion Region Setup Set the motion detection regions. Up to 3 regions can be defined. Fig. 5-9. Motion Region Setup Rev0.1 (Dec.2007)
  • Page 35 NVC 800 User’s Guide Sub Field Field/Button Description /Button Channel Not applicable. Selection Set the sensitivity in motion detection for each channel. 1 is the most Channel Sensitivity sensitive, and 10 is the least sensitive. Set up to 3 the motion detection zone Enable each zone by checking the box at the left of each Region.
  • Page 36: Ptz Setup

    NVC 800 User’s Guide 5.8. PTZ Setup(Not applicable for NVC 1000, 3000, 910 PTZ Cameras) Fig. 5-10 PTZ Setup Sub Field Field/Button Description /Button Not applicable Channel Selection Choose the PTZ model. PTZ Model Selection Choose default model for proper operation. Delete Button Press this button to delete the setup of PTZ Your PTZ device needs an ID, input ID in this field.
  • Page 37 NVC 800 User’s Guide You can check the various operation of the PTZ devices. PTZ Operation “Left”/”Right”/”UP”/”DOWN” , Check “AUTO FOCUS”/”ZIN”/”ZOUT” PTZ Position Not applicable for NVC 800. Detailed set-up can be achieved by PTZ controller or virtual Setup controller of the viewer. Rev0.1 (Dec.2007)
  • Page 38: Encryption Set Up

    NVC 800 User’s Guide 5.9. Encryption Set up Fig. 5-11 Encryption Setup For additional security to the video and audio data transmitted from the network camera, you can set key codes and use them for encrypting the data from the network camera. You can selectively activate encryption for the video and audio data.
  • Page 39 NVC 800 User’s Guide regardless of the selection below. Video Check to enable encryption on the video data. Audio Check to enable encryption on the audio data. SAVE After the selection, click on SAVE button. You can use up to 20 different key codes for the encryption of the data To generate the key value click on “GENERATE”...
  • Page 40: Upgrade & Reset

    You can upgrade the NVC 800 via IP network. Fig. 5-12 Upgrade & Reset For each of the upgrade of the system component, upgrade code should be downloaded from Inscape Data’s home page before the system upgrade is performed. (Refer to [6.4.
  • Page 41 NVC 800 User’s Guide Upgrade Bootloader needed for the upgrade can be downloaded from Inscape Data’s home page. Refer to [6.4. How to upgrade NVC 800 firmware] Add PTZ File Not applicable for NVC 800 Re-initialize the network camera to factory default state. By checking on a Radio button “Except Network Configuration”, you can preserve the parameters for the network.
  • Page 42: Status Report

    NVC 800 User’s Guide 5.11. Status Report It shows you system records since the system started. Fig. 5-13 Status Report You can check the problems as well as the versions and event status of the whole system and each module. Rev0.1 (Dec.2007)
  • Page 43: Tips For Using Nvc 800

    NVC 800 User’s Guide 6. Tips for Using NVC 800 6.1. Alarm (for Sensor input) and AUX (for Relay output) Alarm terminal at the connector panel of NVC 800 is used to connect various sensing and alerting devices. Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, magnetic sensor, etc. Aux terminal is used for connecting alerting device such as loud speaker, flashing light, etc.
  • Page 44 NVC 800 User’s Guide 2. Relay Output from NVC 800 A Relay output is provided for connecting alarm devices or for remote on/off devices such as light control. Relay circuits are normal open and circuits are closed upon alarm output or remote on. The relay is capable of switching AC/DC 30V, 1A electrical signal.
  • Page 45 NVC 800 User’s Guide P ho to C o up l er N O /N C T yp e N O /N C T yp e N O /N C T yp e N O /N C T yp e O p en C o l l ecto rT yp e O p en C o l l ecto rT yp e O p en C o l l ecto rT yp e...
  • Page 46: Trouble Shooting

    NVC 800 User’s Guide 6.2. Trouble Shooting 1. After NVC 800 is successfully installed. • NVC 800 in viewing mode, neither channel name nor video is display and eventually timeout message is shown up. Check the power and network connection of NVC 800. To check if the network is properly operating, open the browser and try to connect to any server.
  • Page 47: Web Viewer

    NVC 800 User’s Guide Users are recommended to adjust resolution and frame rates to lower values for lower bandwidth network. 3. Additional Trouble Shooting Problem Solution * Check if the power cord and line connection between the camera and Nothing appears on the screen monitor are connected properly The image on the...
  • Page 48 NVC 800 User’s Guide Fig. 6-6 Web Viewer Control Panel of Web Viewer Enable bidirectional audio. When bidirectional audio is enabled, voice from your PC is delivered to NVC 800. Capture and store the still image on your desk top screen. Connect to NVC 800 in administrative mode.
  • Page 49: How To Upgrade Nvc 800 Firmware

    Followings are the procedure to apply for the manual upgrade 1) Save the upgrade system software to your PC. Upgrade software can be downloaded from Inscape Data’s home page or provided in CD.
  • Page 50 8) After rebooting, log on to the server in administrative mode again and click the “Status Report”. 9) Check the version number and release date of the NVC 800. You can download iCanView280 system software from Inscape Data’s homepage. http://http://www.inscapedata.com...
  • Page 51: Specification Of The Analog Camera Module

    NVC 800 User’s Guide Appendix 1. On Site Installation of NVC 800 A. Preparations for the installation How to install the NVC 800 1. Make a hole on the wall 2. Insert the screw anchors. 3. Fix the screws. Rev0.1 (Dec.2007)
  • Page 52 NVC 800 User’s Guide How to Set Lens Functionality Slide to Open the Top cover up 1. Focus control lever 2. Zoom control lever 3. BLC:Back Light Compensation ON/OFF Switch 4. FLK : Flickerless ON/OFF Switch 5. LED : IR LED Beam Strength Control Normal/Hi Switch 6.
