Product description
3.5

Product overview

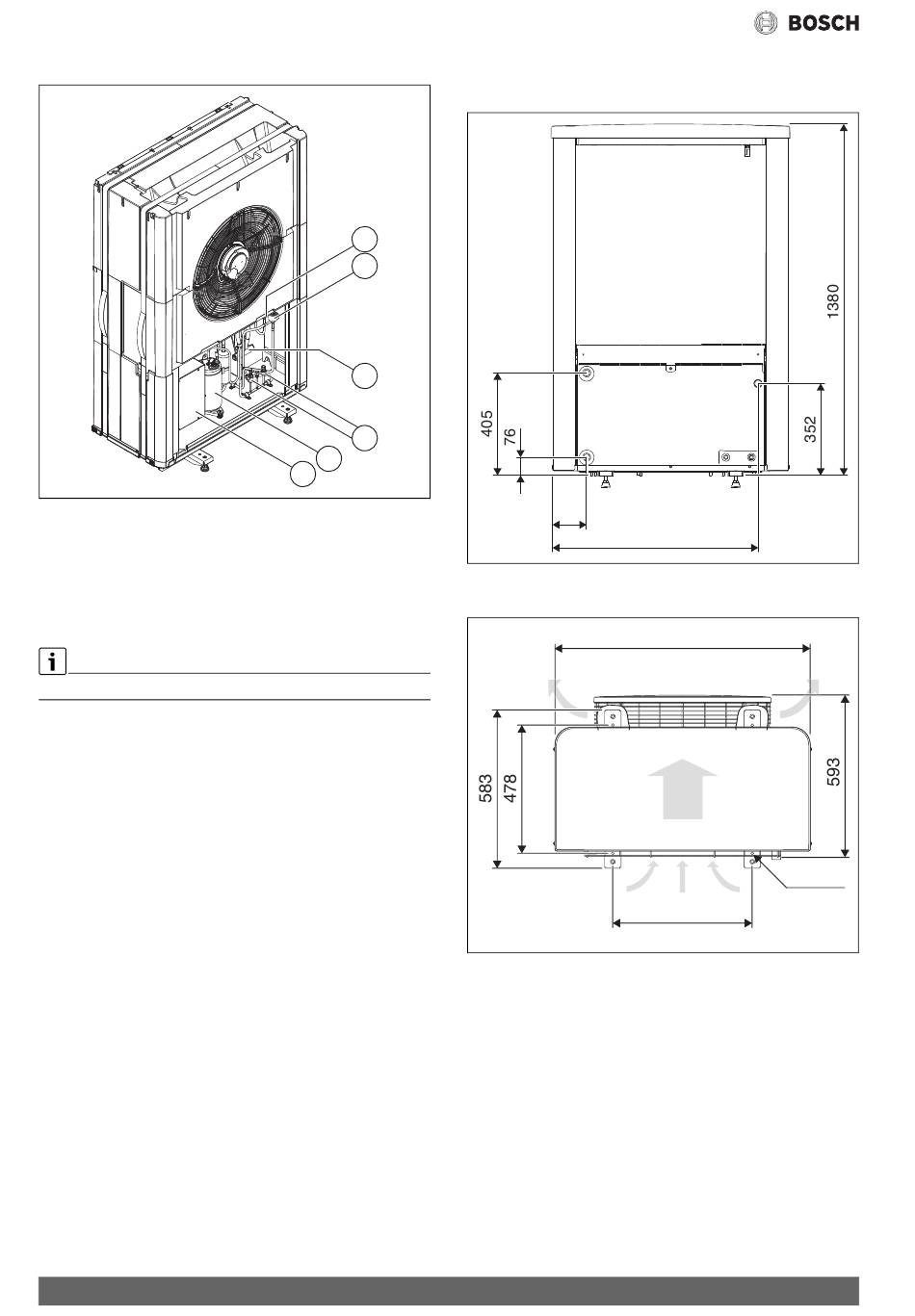

Fig. 3 Product overview
[1] Electronic expansion valve VR1
[2] Electronic expansion valve VR0
[3] Four-way valve
[4] Pressure switch/pressure sensor
[5] compressor
[6] Inverter
Description applies for all sizes.
6
3.6
3.6.1
1
2
3
4
5
6
Fig. 4
Fig. 5

Dimensions

Dimensions of heat pump models 5 OR, 7 OR

99
836
Dimensions and connections of heat pump models 5 OR-7 OR,
rear
934
510
Dimensions of heat pump models 5 OR-7 OR, view from top
Compress 7400i AW – 6721833372 (2021/09)
ø10,5
0010031841-002
