ATI Technologies Q-Card Quick Setup

. Q Card

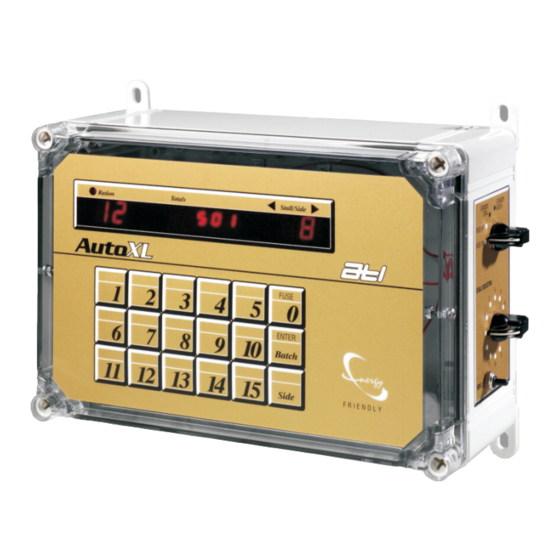

Auto XL
Quick Setup
Card
Version - February 2006
For Software Version V1.05
Part Number - 39-0015
General Specifications
Parlour Size: 16 or 24pt on main relay board.
38pt max. with Feeder Relay Extension Box.
Meridian: On board.
Electronic Fuse: 3Amps approximately: Software reset.
Diagnostic display shows stall message:
'Fuse'.
Diagnostic display shows PSU message:
'PS Fail'.
Relay Board: Relays:16Amp rating: Switched (+/-).
Address jumpers:
Main Board
No larger than 24pt:
Larger than 24pt:
Systems with Feeder Relay Extension Box: the
Extension Box controls feeders 1 through 24
and the main board 25 through 38.
Standby: Individual stall or batch
Batch running time set by jumpers:
12 seconds
1 second
6 seconds
2 seconds
Feeder OFF position on Mode Selector Switch
Quick Setup
Function Mode Key Sequence:
Press the Side key
Press the Batch(ENTER) key
Press the 0(FUSE) key
Key the Function Number
Press the Batch(Enter) key.
Set Number of Feeders/Stalls per Side: Function 82
Run the Function Mode Key Sequence.
Message ='St'
Key the number of feeders/Stalls using the 0-9 keys.
Max=19.
Press Batch(ENTER)
Set Number of Feeders to Run: Function 83
Run the Function Mode Key Sequence.
Message ='Fr'
Key the number of feeders to run using the 0-9 keys.
Extension Box
Safe=4
N/A
Press Batch(ENTER)
Set Type of Feeder: Function 84
Run the Function Mode Key Sequence.
Message ='PU'
Key the feeder type. Key '0' for timed electric. Key 1, 2,
3 or 4 for number of pulses for pulsed feeder.
Press Batch(ENTER)
Set Feeding Mode: Function 81
Run the Function Mode Key Sequence.
Message ='SF'
Press key 0(FUSE) to toggle Stored Mode 'on' or 'off'.
Select 'off' for normal Sequential feeding.
Press Batch(ENTER)
Bleep Enable/Disable: Function 89
Run the Function Mode Key Sequence.
Message ='bL'
Press key 0(FUSE) to toggle between 'on' and 'off'
Press Batch(ENTER)
