- Page 1 Model Q45H/62 Free Chlorine Measurement System Training Handout European Office Analytical Technology Unit 1&2, Gatehead Business Park Delph New Road, Delph Saddleworth OL3 5DE 01457 873 318 01457 874 468 Email sales@atiuk.com...
-
Page 2: User Interface

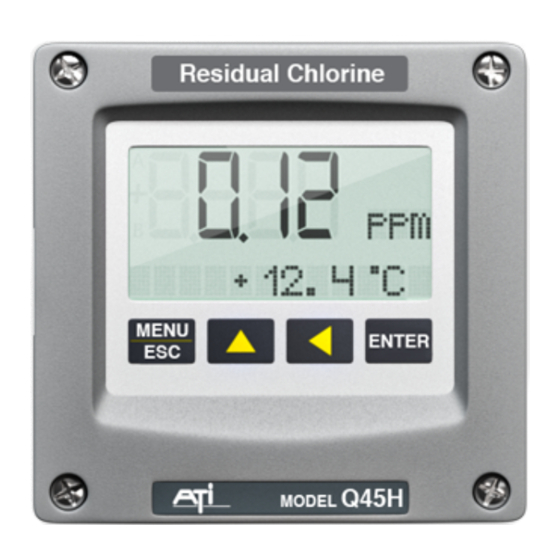

Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com User Interface The user interface for the Q45 Series instrument consists of a custom display and a membrane keypad. All RELAY 4-DIGIT INDICATOR... -
Page 3: Chlorine Sensor Preparation
Chlorine Sensor Preparation The chlorine sensor supplied with the Q45H is shipped dry. It will not operate until it is prepared by adding electrolyte and a membrane. Preparation of the sensor for operation must be done carefully. A qualified technician should do the procedure and it should only be done when the system is ready for operation. -
Page 4: Chlorine Calibration
Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com Chlorine Calibration Once power is applied and sample water is running past the sensor (via the flow cell) a good 6-8 hours should be allowed for complete polarization ‘of a brand new sensor’... - Page 5 Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com Chlorine Span Cal “1 Ref” Span calibration of the system must be done against known value of chlorine in the sample ‘at the point in which you are calibrating the unit and no longer than a couple of minutes to prevent an alteration in the process that could lead to an incorrect cal’.
- Page 6 Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com Short Guide for Calibration of pH corrected Q45H62 chlorine monitor This guide is intended for use for routine calibration only. If problems during calibration occur please consult the full O&M manual.
- Page 7 Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com ENTER Wait, X.XXX ppm “Wait” flashes If the “wait” does not stop flashing Wait until display reads Adjust value press ENTER Adjust Cl2 value using left arrow to select digit and to ∆...
- Page 8 Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com allow for stabilization of the pH probe. An independent pH meter, lab test or colorimeter is required to get this reading for the 1 point cal, if you do not have a portable pH monitor or a method of measuring pH, you will need to continue using the 2 point cal with buffers for future calibration.
- Page 9 Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com THIS DATA WAS PRODUCED BY PALINTEST See above for readings from Palintest. 25 x dpd tests were taken. The average of which are displayed.
- Page 10 Analytical Technology Unit 1 & 2 Gatehead business PK, OL3 5DE Phone +44 145 783 2800 Fax +44 145 783 9500 Sales@atiuk.com Quick Reference Guide (PRINT OFF AND DISPLAY) Observation Checklist 1. Flow through the cell going over weir. 2. Check the pH reading is the same and correct. 3.
- Page 11 Q45H-62 OPERATIONAL LOG (PRINT OFF AND USE) Q45H pH Portable Q45H CL DPD CL Pre-Cal. Post-Cal. Date Maintenance Value pH Value Value Value Slope Slope Q45H Training Handout Page 10 of 11...
