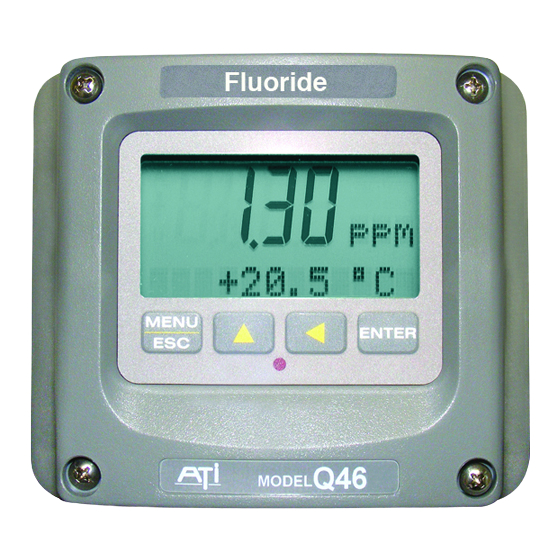

Direct fluoride monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Direct Fluoride Monitor
Home Office
Analytical Technology, Inc.
6 Iron Bridge Drive
Collegeville, PA 19426
Phone: 800-959-0299
610-917-0991
Fax:
610-917-0992
Email: sales@analyticaltechnology.com
O & M Manual
Model Q46F/82
European Office
ATI (UK) Limited
Unit 1 & 2 Gatehead Business Park
Delph New Road, Delph
Saddleworth OL3 5DE
Phone: +44 (0)1457-873-318
Fax:
+ 44 (0)1457-874-468
Email: sales@atiuk.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q46F/82 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies Q46F/82

Summary of Contents for ATI Technologies Q46F/82

  • Page 1 O & M Manual Model Q46F/82 Direct Fluoride Monitor Home Office European Office Analytical Technology, Inc. ATI (UK) Limited 6 Iron Bridge Drive Unit 1 & 2 Gatehead Business Park Collegeville, PA 19426 Delph New Road, Delph Phone: 800-959-0299 Saddleworth OL3 5DE...

  • Page 2: Table Of Contents

    PART 1 - INTRODUCTION ........4 PART 6 – PID CONTROLLER DETAILS ..36 General............4 PID Description ........36 Q46F/82 System Specifications ....6 PID Algorithm ......... 36 Q46F/82 Performance Specifications ..7 Classical PID Tuning ....... 38 PART 2 – MECHANICAL INSTALLATION ..8 Manual PID Override Control ....
  • Page 3 Table of Figures 1 – T ..................5 IGURE YPICAL LUORIDE ONITORING YSTEM 2 - Q46F E ..................... 9 IGURE NCLOSURE IMENSIONS 3 - W ..................... 9 IGURE ALL OR IPE MOUNT RACKET 4 - W ......................10 IGURE OUNTING IAGRAM 5 - P ......................

  • Page 4: Part 1 - Introduction

    Part 1 - Introduction General The Q46F/82 Direct Fluoride System is an on-line monitoring system designed for the continuous measurement of fluoride ion in solution. The system is designed to measure fluoride ion directly without the use of chemical buffers and is suitable for potable water systems with stable pH and conductivity.

  • Page 5: Figure 1 - Typical Fluoride Monitoring System

    Part 1 – Introduction Q46F/82 Direct Fluoride Monitor Figure 1 – Typical Fluoride Monitoring System O&M Manual Rev-G (11/18)

  • Page 6: Q46F/82 System Specifications

    Part 1 – Introduction Q46F/82 Direct Fluoride Monitor Q46F/82 System Specifications Displayed Parameters Main input, 0.01 ppm to 2000 ppm dissolved fluoride Sensor mV Sample Temperature Loop current, 4.00 to 20.00 mA Sensor slope & zero offset Model number and software version...

  • Page 7: Q46F/82 Performance Specifications

    Part 1 – Introduction Q46F/82 Direct Fluoride Monitor Analog Outputs Two 4-20 mA outputs. Output one programmable for PPM F PID. Output 2 programmable for PPM or temperature. Maximum load 500 Ohms for each output. Outputs ground isolated and isolated from each other.

  • Page 8: Part 2 - Mechanical Installation

    Part 2 – Mechanical Installation General Mechanical installation of a Q46F/82 fluoride system involves mounting of the Q46F electronic assembly, mounting of the sample flowcell, and connection of sample and drain tubing. If the optional panel assembly has been supplied, the system comes assembled with flow controls to allow operators to properly adjust sample flow to a low value.

  • Page 9: Wall Mount Bracket

    Part 2 – Mechanical Installation Q46F/82 Direct Fluoride Monitor Figure 2 - Q46F Enclosure Dimensions Wall Mount Bracket A PVC mounting bracket with attachment screws is supplied with each transmitter (see Figure 3 for dimensions). The multi-purpose bracket is attached to the rear of the enclosure using the four flat head screws.

  • Page 10: Figure 4 - Wall Mounting Diagram

    Part 2 – Mechanical Installation Q46F/82 Direct Fluoride Monitor Figure 4 - Wall Mounting Diagram Figure 5 - Pipe Mounting Diagram O&M Manual Rev-G (11/18)

  • Page 11: Panel Mount, Ac Powered Monitor

    Part 2 – Mechanical Installation Q46F/82 Direct Fluoride Monitor Panel Mount, AC Powered Monitor Panel mounting of the Q46F monitor uses the panel mounting flange molded into the rear section of the enclosure. Figure 6 provides dimensions for the panel cutout required for mounting.

  • Page 12: Flowcell Mounting

    Part 2 – Mechanical Installation Q46F/82 Direct Fluoride Monitor Flowcell Mounting The flowcell for the fluoride sensor is a sealed assembly with twist-lock connection. The sensor is inserted into the top of the flowcell by aligning the retainer pins on the sensor with the slots in the flowcell.

  • Page 13: Fluoride Sensor

    Part 2 – Mechanical Installation Q46F/82 Direct Fluoride Monitor Fluoride Sensor The fluoride sensor used in the Q46F system is a combination style electrode containing a lanthanum fluoride sensing element and a sealed silver/silver chloride reference electrode. Fluoride sensor are suitable for monitoring fluoride ion concentration in potable water systems when the source water has a very stable pH and conductivity.

  • Page 14: Part 3 - Electrical Installation

    Part 3 – Electrical Installation General The Q46F electronics contains a universal power supply operating on voltages between 90 and 265 VAC, 50/60 cycle. An optional version of this instrument operates from a DC power input between 12 and 24 VDC. The label on the outside of the Q46F enclosure indicates the input ...

  • Page 15: Figure 9 - Line Power Connection

    Part 3 – Electrical Installation Q46F/82 Direct Fluoride Monitor The analog outputs from the system are present at terminals TB1. The loop-load limitation in this configuration is 500 Ohms maximum for each output. Also note that these two outputs are completely isolated from each other to insure that ground loops do not result from the connection of both outputs to the same device such as a PLC or DCS.

  • Page 16: Q46F Sensor Wiring

    Part 3 – Electrical Installation Q46F/82 Direct Fluoride Monitor Q46F Sensor Wiring The interconnection between the fluoride sensor and the Q46F electronics is a 4-conductor cable. The sensor cable has a coaxial cable with the center conductor and shield separated for connection to terminals 1 and 3.

  • Page 17: Relay Wiring

    Part 3 – Electrical Installation Q46F/82 Direct Fluoride Monitor Relay Wiring Three SPDT relays are provided on the power supply board. None of the relay contacts are powered. The user must supply the proper power to the contacts. For applications that require the same switched operating voltage as the Q46 (115 or 230 V), power may be jumpered from the power input terminals at TB7.

  • Page 18: Part 4 - Configuration

    Part 4 – Configuration User Interface The user interface for the Q46 Series instrument consists of a custom display and a membrane keypad. All functions are accessed from this user interface (no internal jumpers, pots, etc.). RELAY 4-DIGIT INDICATOR MAIN DISPLAY MENU ICONS MENU ICONS SIGN...

  • Page 19: 4.11 Keys

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor 4.11 Keys All user configurations occur through the use of four membrane keys. These keys are used as follows: MENU/ESC To scroll through the menu section headers or to escape from anywhere in software.

  • Page 20: Software

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor Icon Area The icon area contains display icons that assist the user in set-up and indicate important states of system functions. The CAL, CONFIG, and DIAG icons are used to tell the user what branch of the software tree the user is in while scrolling through the menu items.

  • Page 21: Software Navigation

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor 4.21 Software Navigation Within the CAL, CONFIG, CONTROL, and DIAG menu sections is a list of selectable items. Once a menu section (such as CONFIG) has been selected with the MENU key, the user can access the item list in this section by pressing either the ENTER key or the UP arrow key.

  • Page 22: Figure 13 - Software Map

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor Start MENU MENU MENU MENU MENU MENU MEASURE CONFIG CONTROL DIAG SECTIONS ES C ES C ES C ES C ES C (display only) ENT ER ENT ER ENT ER ENT ER...

  • Page 23: Measure Menu [Measure]

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor 4.22 Measure Menu [MEASURE] The default menu for the system is the display-only menu MEASURE. This menu is a display-only measurement menu, and has no changeable list items. When left alone, the instrument will automatically return to this menu after approximately 30 minutes.

  • Page 24: Calibration Menu [Cal]

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor 4.23 Calibration Menu [CAL] The calibration menu contains items for frequent calibration of user parameters. There are three items in this list: Cal Fluoride, Cal Temp. and Set Range. The fluoride calibration function allows the user to adjust the transmitter span reading to match a reference solution, or to set the sensor zero point.
  • Page 25 Part 4 – Configuration Q46F/82 Direct Fluoride Monitor means for possible adjustment due to aging at extreme ranges. addition, the display has an automatic temperature compensation network. Press ENTER to initiate user entry mode, and the value will flash. Use arrow keys to modify the value; range is 0 to 8 (0 being lightest).

  • Page 26: Control Menu [Control]

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor *Iout#2 Mode This function sets analog output #2 for either temperature or fluoride. Press ENTER to initiate user entry mode, and the entire value will flash. Use the UP arrow key to modify the desired value; selections include: 1- ppm for temperature, or 2-PPM for fluoride.
  • Page 27 Part 4 – Configuration Q46F/82 Direct Fluoride Monitor key to select the first digit to be modified. Then use the UP and LEFT arrow keys to select the desired numerical value. Press ENTER to store the new value Set PID 0%...
  • Page 28 Part 4 – Configuration Q46F/82 Direct Fluoride Monitor The entry value is limited to a value between 0 and 55°C if it is set for temperature. The 4 mA and the 20 mA point must be at least 20 units away from each other.

  • Page 29: Figure 14 - Control Relay Example

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor When value rises to ≥ 1.050 ppm, relay opens. When value rises to ≥ 1.000 ppm, relay closes. 1.000 ppm 1.050 ppm HYSTERESIS HYSTERESIS PHASE: HI PHASE: LO “DEAD BAND” “DEAD BAND”...

  • Page 30: Diagnostics Menu [Diag]

    Part 4 – Configuration Q46F/82 Direct Fluoride Monitor If Relay B Mode is set to CON (see Relay B Mode), then Relay B will *B Setpoint function identically to Relay A. Relay B settings appear in the CONFIG *B Hysteresis...
  • Page 31 Part 4 – Configuration Q46F/82 Direct Fluoride Monitor After 30 minutes or if power to the transmitter is cycled, the failure for calibration will be cleared until calibration is attempted again. If the problem still exists, the calibration failure will re-occur. Press ENTER to initiate view of the highest priority failure.
  • Page 32 Part 4 – Configuration Q46F/82 Direct Fluoride Monitor Fail Out #2 This function sets the fail-mode of current loop output #2 under a FAIL condition. The settings and operation are identical to Fail Out for output Fail Val #2 This function sets the value of current loop output #2 under a FAIL condition.

  • Page 33: Part 5 - Calibration

    Part 5 – Calibration Calibration Calibration of a fluoride analyzer requires the use of two standards with about 1 decade (10X) concentration difference. For many applications, values of 1 and 10 PPM are used. However, high range applications may require the use of 10 and 100 PPM or other values depending on the application.

  • Page 34: 5.12 Single Point Calibration

    Part 5 – Calibration Q46F/82 Direct Fluoride Monitor 5. When the monitor determines that the signal is stable, the display will switch to a concentration number and the first digit will be flashing. Set the value on the display to 1.00 and press Enter to store that value.
  • Page 35 Part 5 – Calibration Q46F/82 Direct Fluoride Monitor 4. The calibration data gathering process will begin. The message Wait will flash as data is accumulated and analyzed. The °C or °F symbol may flash periodically if the reading is too unstable.

  • Page 36: Part 6 - Pid Controller Details

    Part 6 – PID Controller Details PID Description PID control, like many other control schemes, are used in chemical control to improve the efficiency of chemical addition or control. By properly tuning the control loop that controls chemical addition, only the amount of chemical that is truly required is added to the system, saving money.
  • Page 37 Part 6 – PID Controller Details Q46F/82 Direct Fluoride Monitor The most notable feature of the algorithm is the fact the proportional gain term affects all components directly (unlike some other algorithms - like the “series” form.) If a pre-existing controller utilizes the same form of the algorithm shown above, it is likely similar settings can for made if the units on the settings are exactly the same.

  • Page 38: Classical Pid Tuning

    Part 6 – PID Controller Details Q46F/82 Direct Fluoride Monitor Classical PID Tuning Unlike many high speed position applications where PID loops are commonly used, the chemical feed application employed by this instrument does not require intense mathematical exercise to determine tuning parameters for the PID.
  • Page 39 Part 6 – PID Controller Details Q46F/82 Direct Fluoride Monitor addition, if a chemical process is not symmetrical, that means it responds differentially to the addition and subtraction of chemical. It is important in these applications to study steady-state impact as well as step-change impact to process changes. In other words, once the process has apparently been tuned under normal operating conditions, the user should attempt to force a dramatic change to the input to study how the output reacts.

  • Page 40: Part 7 - System Maintenance

    Part 7 – System Maintenance General The Q46F/82 Fluoride System requires minimal maintenance for reliable operation. Keep in mind that preventive maintenance on a regular schedule is much less troublesome than emergency maintenance that always seems to come at the wrong time.

  • Page 41: Part 8 - Troubleshooting

    Part 8 – Troubleshooting General The information included in this section is intended to be used in an attempt to quickly resolve an operational problem with the system. During any troubleshooting process, it will save the most time if the operator can first determine if the problem is related to the analyzer, sensor, or some external source.

  • Page 42: Display Messages

    Q46F/82 Direct Fluoride Monitor Part 8 Troubleshooting 2. Using the Simulate feature, check operation of analog outputs and relays with a DMM. 3. Check TC drive circuit. Place a wire-short between the GREEN and RED terminals. With a digital voltmeter (DVM), measure the voltage between the BLACK and GREEN terminals on the monitor to verify that the TC drive circuit is producing about 4.8-5.1 Vdc open circuit.

  • Page 43: Spare Parts

    Spare Parts Part No. Description Q46 Electronic Assembly 03-0430 Q46F front lid assembly 07-0365 100-240 VAC monitor electronics assembly 07-0367 100-240 VAC monitor electronics assembly with Profibus 03-0407 P/S Assy, 100-240 VAC 03-0408 P/S Assy, 100-240 VAC with 3 4-20mA output 03-0409 P/S Assy, 100-240 VAC with 3 relay exp.
  • Page 44 PRODUCT WARRANTY Analytical Technology, Inc. (Manufacturer) warrants to the Customer that if any part(s) of the Manufacturer's products proves to be defective in materials or workmanship within the earlier of 18 months of the date of shipment or 12 months of the date of start-up, such defective parts will be repaired or replaced free of charge.
  • Page 45 WATER QUALITY MONITORS GAS DETECTION PRODUCTS Dissolved Oxygen Ammonia Carbon Monoxide Free Chlorine Hydrogen Combined Chlorine Nitric Oxide Total Chlorine Oxygen Residual Chlorine Dioxide Cl2 Phosgene Potassium Permanganate Bromine Chlorine Dissolved Ozone Chlorine Dioxide pH/ORP Fluorine Conductivity Iodine Hydrogen Peroxide Acid Gases Peracetic Acid O Ethylene Oxide...
