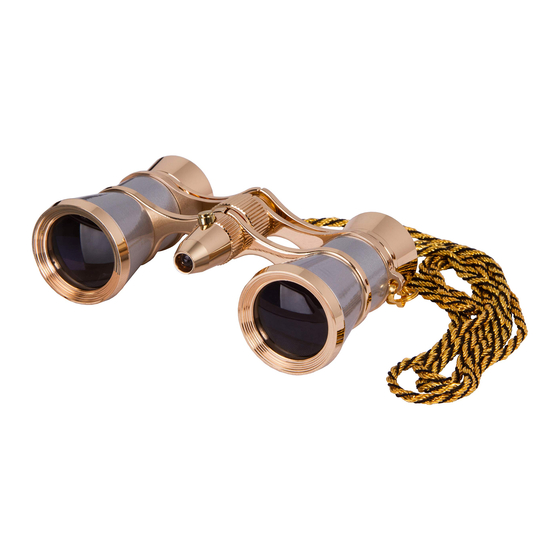

Levenhuk Broadway binoculars: replacement of batteries
1

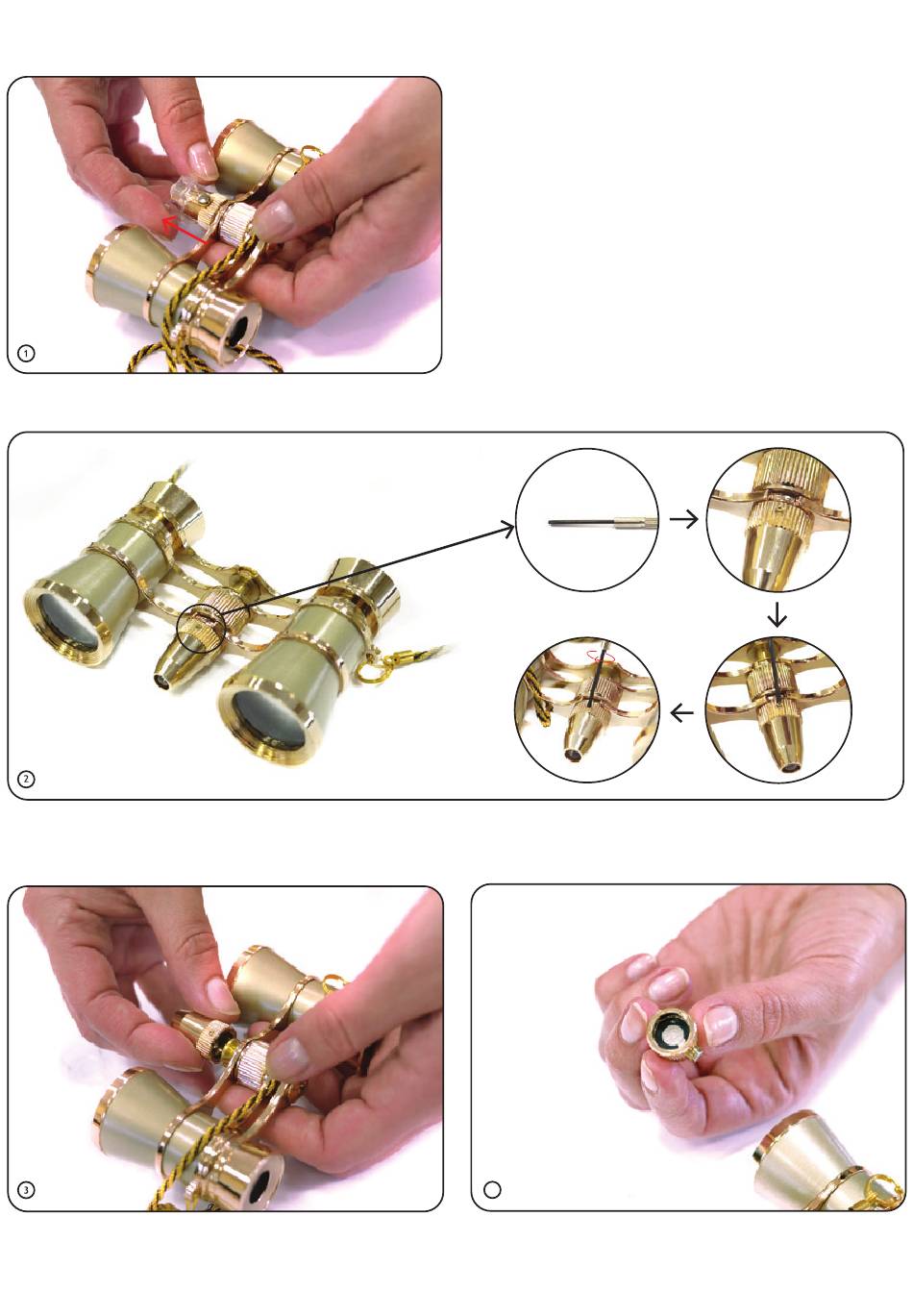

1. Remove the plastic protective ring from the battery compartment.
1.5mm
2. Slightly loosen the screw with a 1.5mm screwdriver (not included in the kit). Do not remove
the screw completely because you will risk losing it.
4
3. Remove the battery compartment from the binoculars body. You will see a black sleeve inside.
Advertisement
Table of Contents
Related Manuals for Levenhuk Broadway 325F
Summary of Contents for Levenhuk Broadway 325F
- Page 1 Levenhuk Broadway binoculars: replacement of batteries 1. Remove the plastic protective ring from the battery compartment. 1.5mm 2. Slightly loosen the screw with a 1.5mm screwdriver (not included in the kit). Do not remove the screw completely because you will risk losing it.
- Page 2 4. Remove the sleeve from the battery compartment. 2 * LR41 5. Insert 2 LR41 batteries (included in the kit) into the sleeve and place it into the battery compartment as shown. The cut on the sleeve should be located exactly opposite the LED button. 6.
- Page 3 7. Remount the battery compartment and tighten the screw. When the binoculars are not in use, install the plastic ring to avoid accidentally pressing the LED button – doing so will extend the battery life. Levenhuk, Inc. 924-D East 124th Ave. Tampa, FL 33612 USA Levenhuk is a registered trademark of Levenhuk, Inc.
