1.6 Connector and Interface Description

The RJ45 connection jet is used for CLI commands for system configurations and controlling

functions in the IVD. The jet is used for initialization of the IVD during the preliminary installation.

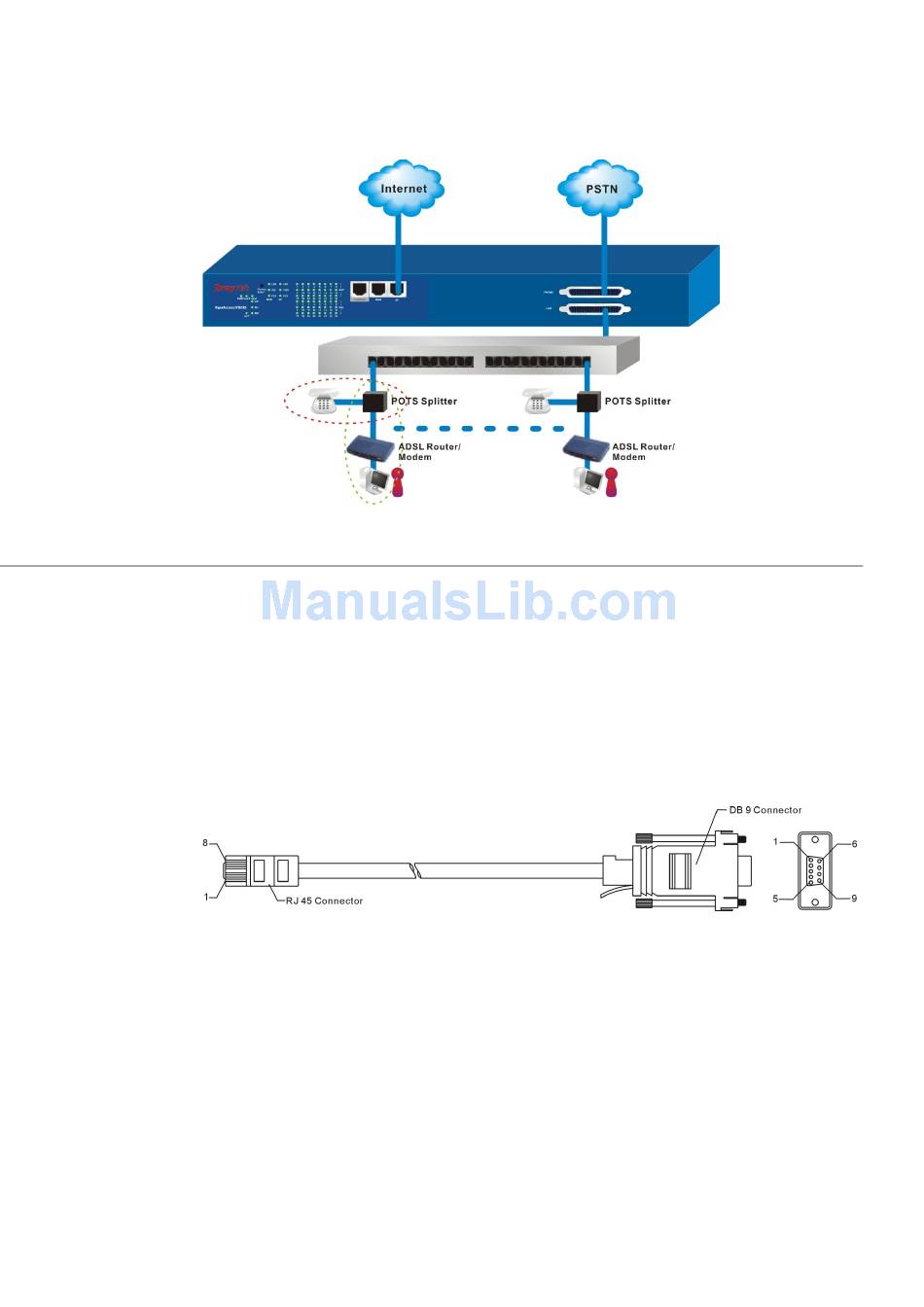

The "management cable", as shown in Figure 1-14, converts the RJ45 to the RS232 interface. The

RJ45 jet connects to a console interface in the IVD, while the RS232 DB9 connecting to a console

port on the computer. The default setting of the console port is "baud rate 9600, no parity, and 8

bit with 1 stop bit (N81)".
