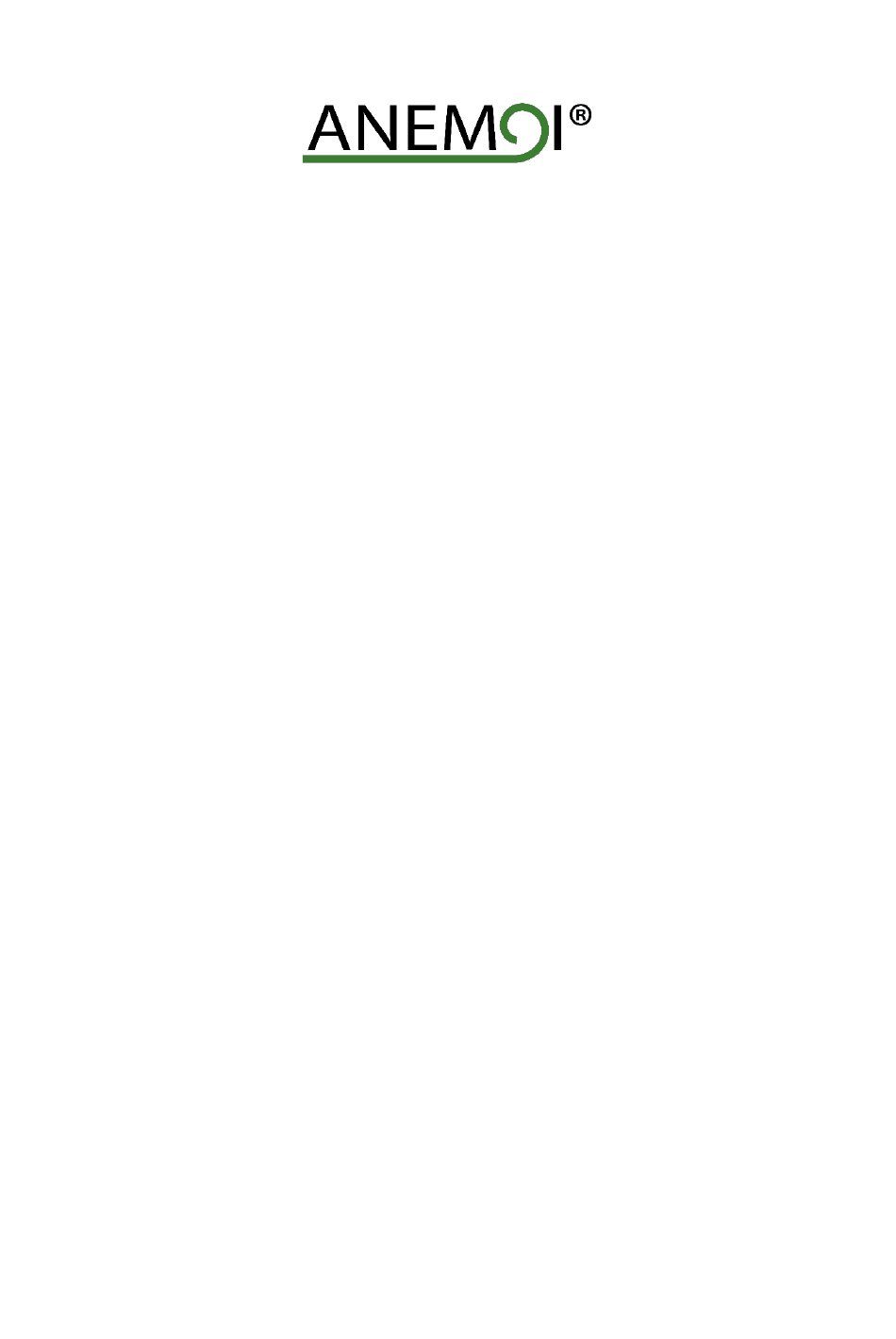

- Page 1 AIRPOLE Installation Manual Issued January 2020 ANIM17AI Rev. A...
- Page 2 AIRPOLE UPDATES DATE UPDATE DESCRIPTION 16 / 01 / 2020 First Edition Technical documents are regularly updated. Anemoi reserves the right to modify the contents of this manual, in full or in part, without warning.
-
Page 3: Table Of Contents
AIRPOLE TABLE OF CONTENTS SAFETY .................................. 4 INTRODUCTION ............................5 TECHNICAL CHARACTERISTICS ....................... 6 DELIVERY ..............................8 Packing List ............................8 MECHANICAL INSTALLATION ........................9 Clearances ............................10 Pole Requirements ..........................11 Floor Fixation ............................13 Motor Assembly ........................... 13 Blades Assembly .......................... -
Page 4: Safety
AIRPOLE SAFETY Before the installation, read the following warning and caution instructions: WARNING! Do NOT install, repair or clean the fan while it is in operation or connected to the power supply. Failure to do so may result in serious injury or death. Do NOT install, handle, repair or clean the fan with wet hands. -
Page 5: Introduction

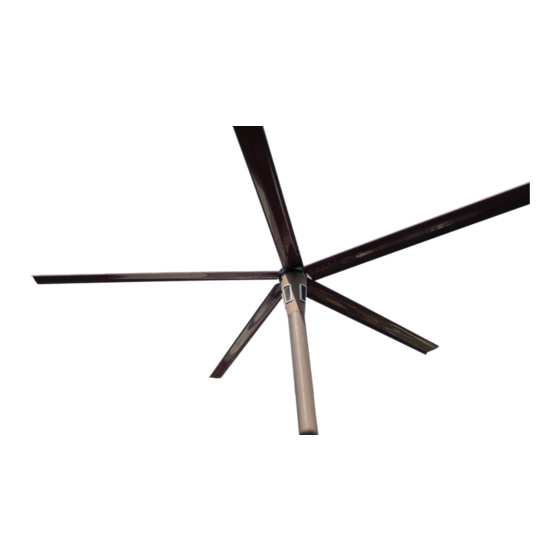

1 INTRODUCTION The Anemoi AIRPOLE fan is perfect for indoor and outdoor applications where it is not possible to make ceiling installations. It has been designed to generate a huge amount of air from the ceiling thanks to the motor power. -
Page 6: Technical Characteristics
AIRPOLE 2 TECHNICAL CHARACTERISTICS AIRPOLE 250 AIRPOLE 300 AIRPOLE 350 AIRPOLE 400 AIRPOLE 450 GENERAL CHARACTERISTICS Diameter 2.5m 3.0m 3.5m 4.0m 4.5m Blades number 6 aluminium blades MOTOR CHARACTERISTICS Motor power 270W 270W 270W 540W 540W Supply voltage 230VAC I, 50~60 Hz Maximum current (A) 1.2 A... - Page 7 AIRPOLE AIRPOLE 500 AIRPOLE 550 AIRPOLE 650 AIRPOLE 730 GENERAL CHARACTERISTICS Diameter 5.0m 5.5m 6.5m 7.3m Blades number 6 aluminium blades MOTOR CHARACTERISTICS Motor power 820W 820W 1100W 1100W Supply voltage 230VAC I, 50~60 Hz Maximum current (A) 3.6 A 3.6 A Maximum speed 70rpm...
-
Page 8: Delivery
AIRPOLE 3 DELIVERY The Anemoi AIRPOLE fan is delivered in two wood boxes, one including the motor parts and the other the blades. Handle the fan boxes carefully and with proper lifting equipment to avoid any damage. CAUTION! Use proper lifting equipment to handle the motor and blade boxes. Otherwise, the fan could be damaged and there is risk of accident. -
Page 9: Mechanical Installation
The Anemoi AIRPOLE fan is designed for floor installation. Ensure that the floor area chosen can hold the weight of the fan and that there are no obstacles in its operating range. The maximum weight of the fan is about 320kg depending on the pole’s weight. -
Page 10: Clearances
4.1 Clearances In order to ensure the maximum coverage of the Anemoi AIRPOLE, all obstacles that may be encountered within the radius of the fan and the roof (if there is any roof) should be considered before installation, ensuring that the fan has an appropriate clearance in all directions when running. -
Page 11: Pole Requirements
AIRPOLE 4.2 Pole Requirements The Anemoi AIRPOLE requires a pole that can be ordered to Anemoi or can be manufactured in the installation country to avoid high transport costs. Dimensions of the tube are as follows:... - Page 12 AIRPOLE Recommended dimensions for the floor fixation part are:...
-
Page 13: Floor Fixation
AIRPOLE 4.3 Floor Fixation The Anemoi AIRPOLE should be fixed to the floor using at least M22 bolts. It is recommended to use the recommended floor fixation piece. The fan cannot be installed in inclined floors. CAUTION! Ensure that the M22 bolts are properly tightened. Failure to do so may result in equipment damage. -
Page 14: Blades Assembly
AIRPOLE 4.5 Blades Assembly To assemble the blades, it is necessary to screw the plastic end caps, and introduce and fix them to the motor guides. Insert the blade into the motor bracket and fix it using the M6 bolts and the blades retainer. It is necessary to tighten the outside bolts first and then the inside bolts using the retainers. -
Page 15: Motor Ventilation Grid Fixation
AIRPOLE 4.6 Motor ventilation Grid Fixation The motor conical protection includes a special grid for ventilation that ventilates it. Use the screws provided to fix it as follows: 4.7 Cover Fixation The motor includes a special cover to protect the fan hub bolts. Use the screws provided to cover the motor as follows:... -
Page 16: Control Box Installation
4.8 Control Box Installation The Anemoi AIRPOLE is controlled through a variable speed drive installed inside the control box The control box is designed to be screwed directly onto a wall. To that end, it includes a hole on each corner. -
Page 17: Electrical Installation
Do not change the VFD configuration. Otherwise, the warranty would be voided. The Anemoi AIRPOLE engine must be connected to the power supply with an electrical voltage of 230V (I, 50/60Hz) through the control VFD. The control box includes a terminal box to allow for smooth connection to the power supply. -
Page 18: First Switch On Test
AIRPOLE 6 FIRST SWITCH ON TEST Installers must follow the following procedure for the first-time operation of the Anemoi AIRPOLE fan because even if all fans are tested before shipping, they can be damaged during storage or shipping. Before operation, it is recommended to recheck that all bolts and nuts are correctly fastened. -
Page 19: Operation
AIRPOLE 7 OPERATION The Anemoi AIRPOLE fan is operated through a VFD control panel. Once the fan is powered, follow the next steps to start the fan: 1- Change the main switch to the start position. 2- Adjust the potentiometer to the required speed. -
Page 20: Maintenance
AIRPOLE 8 MAINTENANCE WARNING! Do NOT repair or clean the fan while it is in operation or connected to the power supply. Doing so may result in serious or fatal electrical shock. Please maintain the fan as follows: Every three months: •... -
Page 21: Troubleshooting
AIRPOLE 9 TROUBLESHOOTING In case of failure, refer to the following table for quick solutions: Observation Probable cause Inspection method Reset the variable frequency drive The main switch is not working The fan can't start normally Check control wires connections correctly Replace the main switch Reset the variable frequency drive... - Page 22 www.anemoifans.com...
