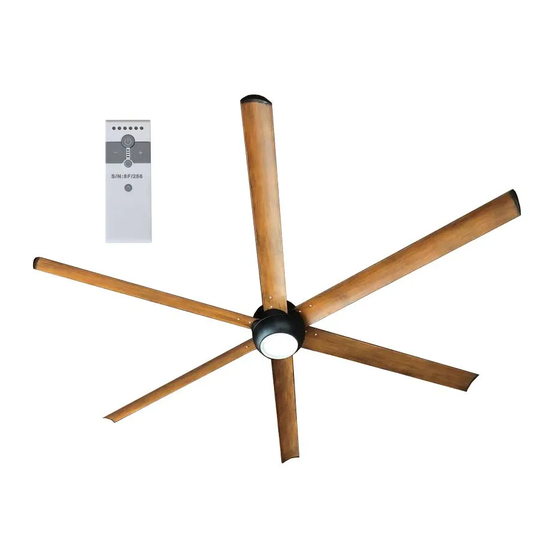

- Page 1 AIRLUX Installation Manual Issued April 2018 ANIM03BI Rev. B...
- Page 2 DATE UPDATE DESCRIPTION 02 / 10 / 2017 First Edition 04 / 04 / 2018 Trim details Technical documents are regularly updated. Anemoi reserves the right to modify the contents of this manual, in full or in part, without warning.
-
Page 3: Table Of Contents
AIRLUX TABLE OF CONTENTS SAFETY ................................4 INSTALLATION ............................... 5 Ceiling Mounting ............................5 Mounting the LED Lamp ........................... 5 Mounting the Trims........................... 6 Preparing the Wires..........................6 Securing the Down Rod to the Engine ..................... 6 Securing the Fan to the Ceiling ........................ 7 Electrical Connections to Receiving Unit .................... -
Page 4: Safety
AIRLUX 1 SAFETY WARNING! Do NOT install, repair or clean the fan while it is in operation or connected to the power supply. Doing so may result in serious or fatal electrical shock. Do NOT install, handle, repair or clean the fan with wet hands. Doing so may result in serious or fatal electrical shock. -
Page 5: Installation
2 INSTALLATION The Anemoi AIRLUX fan is designed for ceiling installation. Ensure that the ceiling area chosen can hold the weight of the fan and that there are no obstacles in its operating range. Ensure that the fan is installed at a height greater than 2.6 m. -
Page 6: Mounting The Trims
AIRLUX 2.3 Mounting the Trims Before running the power cables through the fan, mount the trims on the down rod. The down rod has two trims: One on the upper side and another on the lower side. To distinguish the upper side from the lower side, check the form of the rubber ball joint. -
Page 7: Securing The Fan To The Ceiling
AIRLUX 2.6 Securing the Fan to the Ceiling To secure the fan to the ceiling, just place the black ball joint of the down rod at the centre of the mounting bracket. Mounting bracket Ball Joint After securing the fan, insert the reception unit of the remote control just above the ball joint and carry out the wiring as explained in Section 2.7. -
Page 8: Mounting The Blades
AIRLUX 2.8 Mounting the Blades The engine has six projections to secure the blades. One of the end of the blades has two holes on it. Use this end to insert the blade in the projection. Secure the blade to the engine using the two screws, nuts and... -
Page 9: Operation
AIRLUX 3 OPERATION The Anemoi AIRLUX fan is operated through a remote control. You must pair the remote control to the fan before using it, as explained in Section 2.9 above. The remote control has the following switches and buttons: ON/OFF: Press it once to turn the fan on or off. -
Page 10: Maintenance
4 MAINTENANCE Please maintain the fan as follows: Every three months: • Clean up the dust of the fan with a dry cloth • Verify that the fan is working properly • Ensure that the fan does not make any noises or vibrations •... - Page 11 www.anemoifans.com P.E. Táctica C/ Correjer, 71-10 | C.P. 46980 Paterna, Valencia (Spain) | Tel: +34 96 134 12 24 | info@anemoifans.com...
