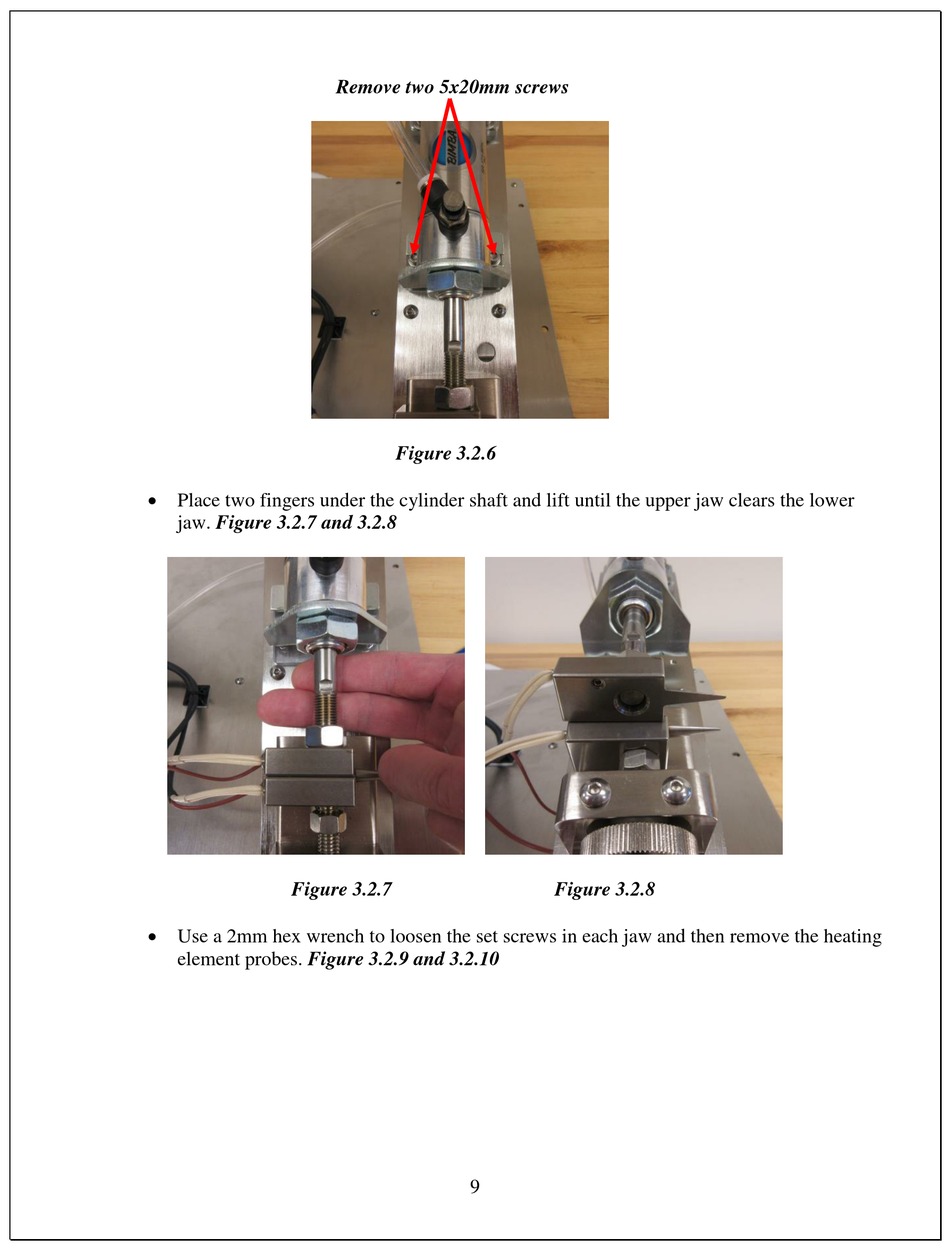

Place two fingers under the cylinder shaft and lift until the upper jaw clears the lower
jaw. Figure 3.2.7 and 3.2.8
Figure 3.2.7
Use a 2mm hex wrench to loosen the set screws in each jaw and then remove the heating
element probes. Figure 3.2.9 and 3.2.10
Remove two 5x20mm screws
Figure 3.2.6
9
Figure 3.2.8
