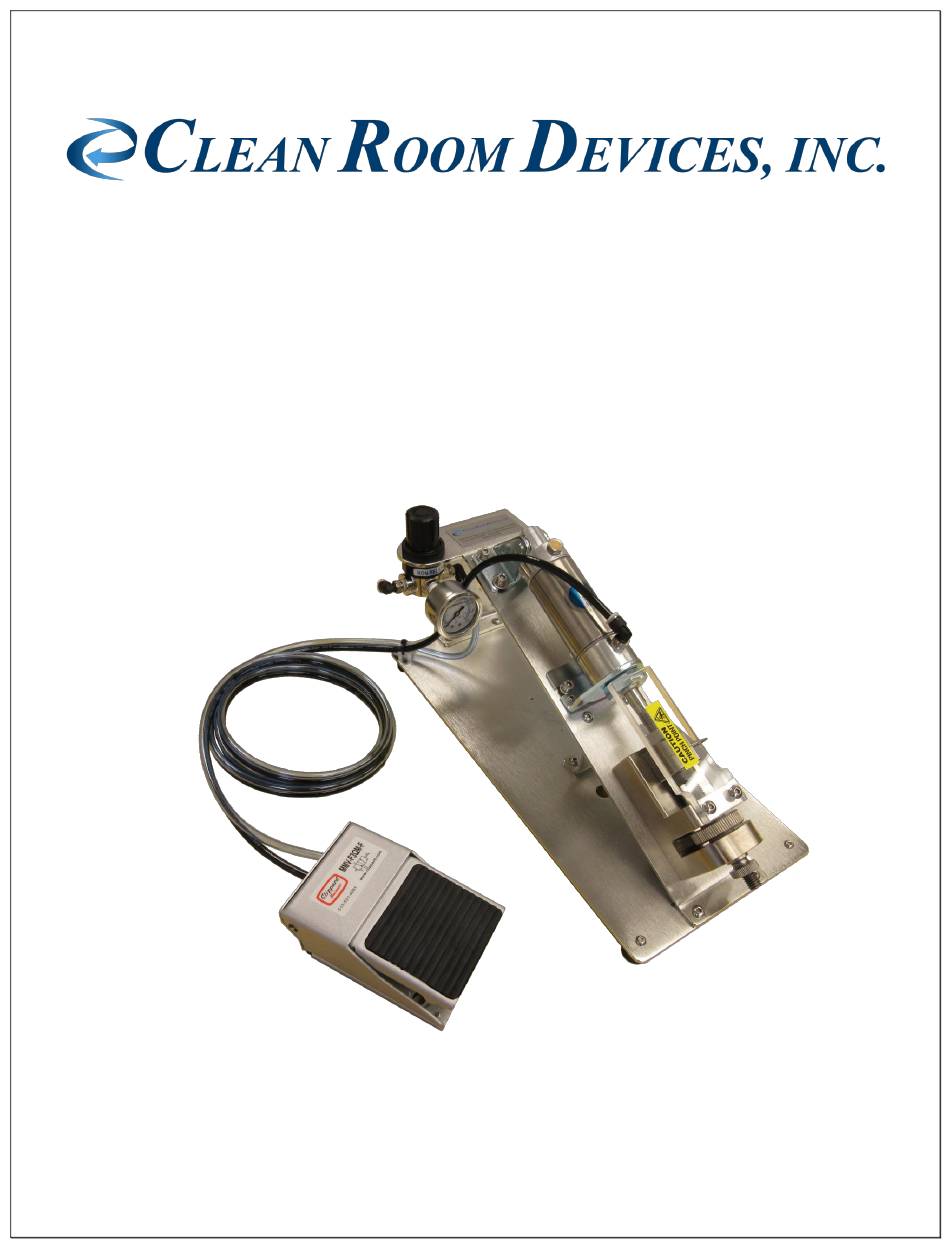

- Page 1 CRD200SS TUBE EXPANDER OPERATIONS MANUAL VERSION 4.5 LAST EDITED 09.12.2019 cleanroomdevices.com...
-
Page 2: Table Of Contents
Table of Contents Table of Contents…………………….………………………………………………………..1 General Product & Safety Information…………………………………………….…..2 Product Information Safety Information Installation………………………………………………….………………..….……….3 Air Supply Operation…………………………………………………………………..……...…..…3 Tube Expanding Jaw installation and removal Parts List………………………………………………………………………………...7 Troubleshooting………………………………………….……………….…………..…8 Maintenance…………………………………………………………………….…….…8 Periodic Cleaning (annually) Safety…………………………………………………………………………………….8 Product specifications……………………………………………………………………9 Durometer Scale…………………………………………………………………………9 10.0 Warranty….........................10 10.1 Warranty 10.2 Warranty Period... -
Page 3: General Product & Safety Information
.040” to 1/2". Other jaw sets are available that are optimized for a specific size (see accessories page at www.cleanroomdevices.com or call Clean Room Devices, Inc.). The device features simple yet reliable tool-less jaw adjustment, which can be made by the operator. -
Page 4: Installation
2.0 Installation Ensure all five (5) rubber feet are completely stabilized on your work surface prior to applying air pressure to the unit. Air Supply Connect a 1/4” air supply hose to the inlet on the pressure regulator. The air supply should be free of moisture and contaminates and provide a minimum of 100 psi (+/- 10%) ... -
Page 5: Jaw Installation And Removal
Safety Guard Jaw Set Thumb Wheel Lock Nut Figure 3.1.1 3.2 Jaw installation and removal Tools required are 9/16 open wrench, 11/16 open wrench, 3mm, 4mm and 3/32nd hex wrench Remove jaw guard by removing two 5x10mm screws using a 3mm hex wrench. ... - Page 6 Using a 11/16 open end wrench break the upper jaw nut loose by turning counter clockwise. Figure 3.2.2 Using a 9/16 open end wrench break the lower jaw nut loose by turning clockwise. Figure 3.2.3 Figure 3.2.2 Figure 3.2.3 ...
- Page 7 Remove the Knurled lock nut and grab threaded rod by hand and rotate threaded rod counter clockwise while holding the lower expander jaw until the jaw is removed. Figure 3.2.6 Rotate rod while holding lower jaw Figure 3.2.6 Select replacement jaw set and assemble them in the reverse order of previous operations. ...
-
Page 8: Parts List
Parts List Item Part Number Description CD002-002 Base Assembly P00026 Rubber Foot P00057 Threaded Rod P00059 3/8-16 Hex Nut P00056 Steel Flat Washer P00086 Nylon Flat Washer CD002-137 Thumb Knob P00059 3/8-16 Hex Nut CD002-138 Lower Jaw Block P00058 7/16-20 Hex Nut CD002-055 Jaw Guard P00085... -
Page 9: Troubleshooting
5.0 Troubleshooting Operating Error Action 1. Check the facility air. Unit does not operate. 2. Check all air hose connections on the unit. 1. Ensure there are no obstructions keeping the jaws from expanding. Jaws do not expand. 2. Completely depress the foot pedal to actuate. 3. -
Page 10: Product Specifications
Product Specifications Unit Weight 12.0 LBS / 5.44 KG 14.5”l x 7.0”w x 7.0”h Overall Dimensions Minimum Facility Air Supply 100 PSI (+/- 10%) Unit Air Regulator Setting 80-120 PSI 9.0 Durometer Scale... -
Page 11: Warranty
For additional information contact: www.cleanroomdevices.com Clean Room Devices, Inc. 10855 Dover Street, Suite 100 Westminster, CO 80021...
