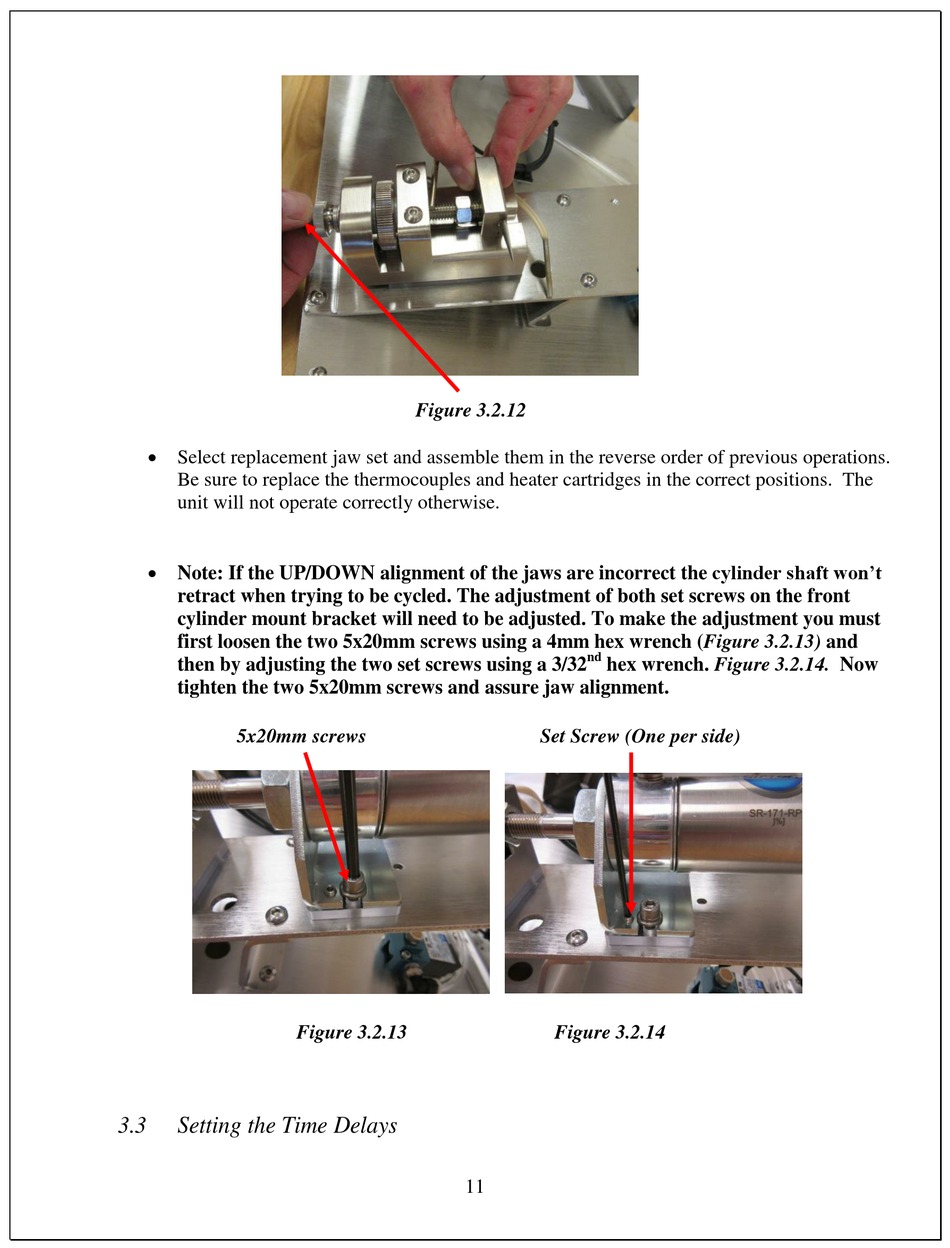

 Select replacement jaw set and assemble them in the reverse order of previous operations.
Be sure to replace the thermocouples and heater cartridges in the correct positions. The
unit will not operate correctly otherwise.
 Note: If the UP/DOWN alignment of the jaws are incorrect the cylinder shaft won't
retract when trying to be cycled. The adjustment of both set screws on the front
cylinder mount bracket will need to be adjusted. To make the adjustment you must
first loosen the two 5x20mm screws using a 4mm hex wrench (Figure 3.2.13) and
then by adjusting the two set screws using a 3/32
tighten the two 5x20mm screws and assure jaw alignment.
5x20mm screws
Figure 3.2.13
3.3

Setting the Time Delays

Figure 3.2.12
nd
Set Screw (One per side)
Figure 3.2.14
11
hex wrench. Figure 3.2.14. Now
