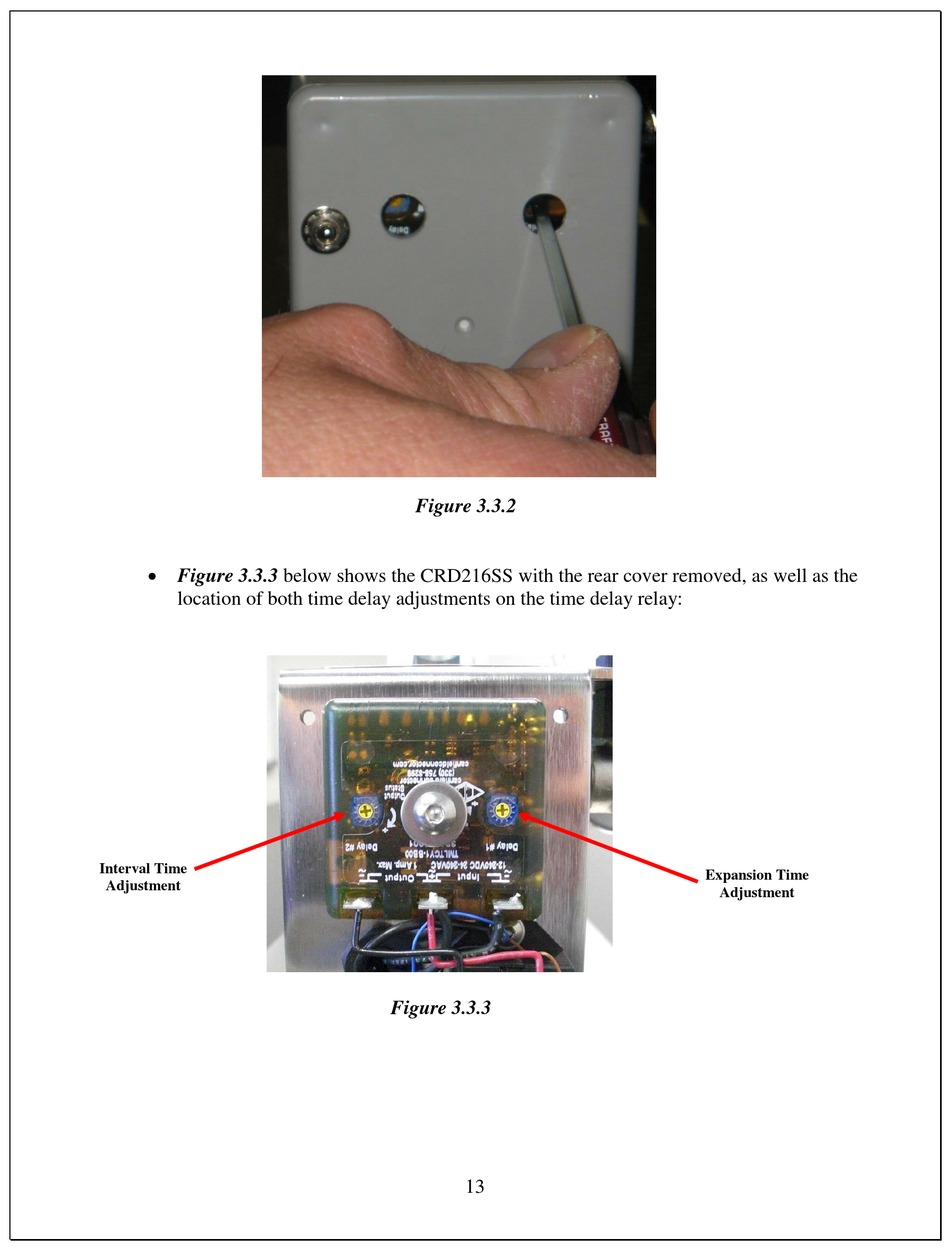

CLEAN ROOM DEVICES CRD216SS Operation Manual page 13

Figure 3.3.2
 Figure 3.3.3 below shows the CRD216SS with the rear cover removed, as well as the
location of both time delay adjustments on the time delay relay:
Interval Time
Expansion Time
Adjustment
Adjustment
Figure 3.3.3
13
