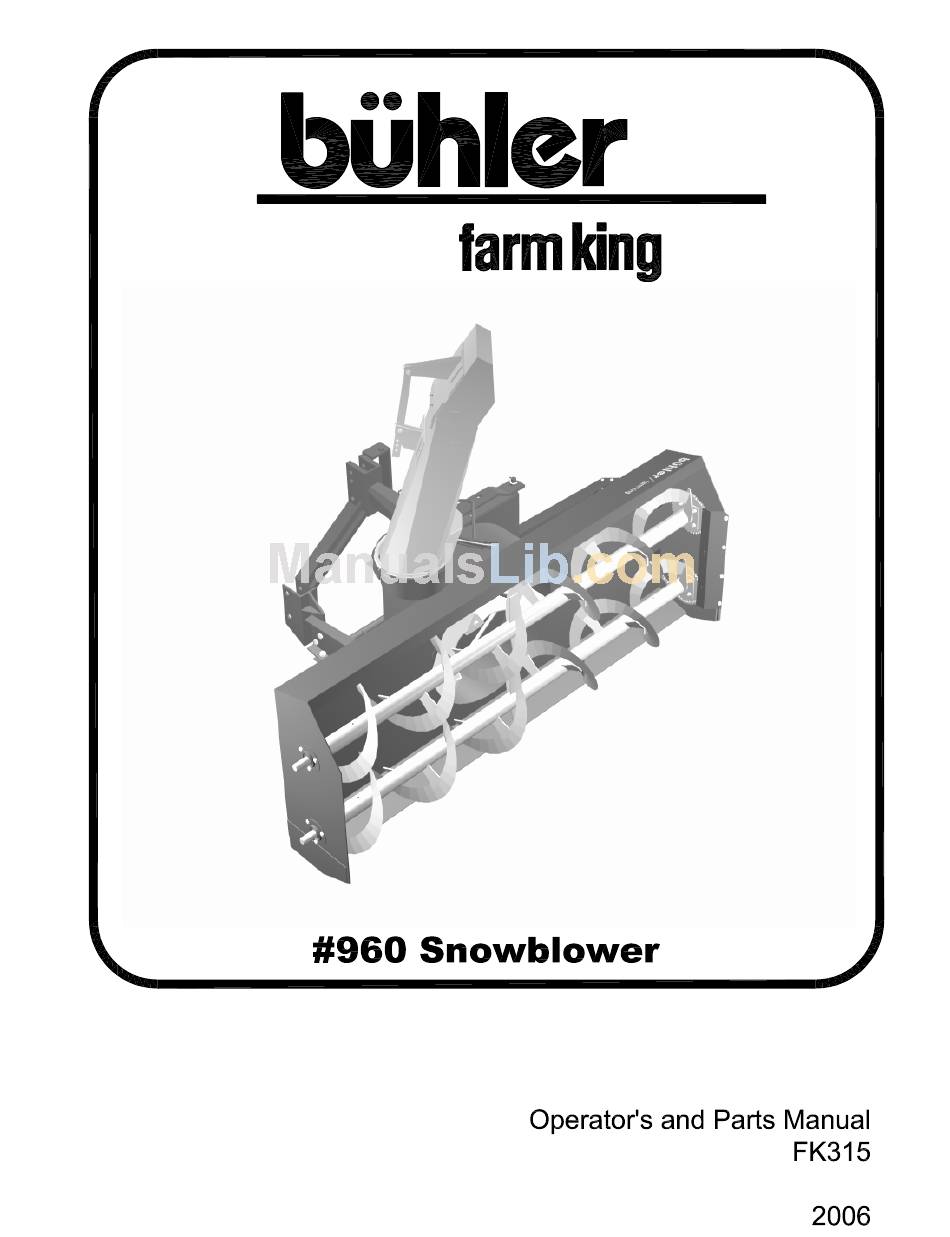

- Page 2 #960 Snowblower TABLE OF CONTENTS DESCRIPTION PAGE Warranty ...1 Safety Instructions & Safety Sign Locations ...2 Operating Instructions ...3 Assembly Instructions ...5 Snowblower w/Quick Hitch Drawings ...8 960 Snowblower Parts List...10 Snowblower PTO Shaft Drawing...12 Snowblower PTO Shaft Parts Lists ...13 Gearbox Drawing &...
-
Page 3: Warranty Policy
960 Snowblower WARRANTY POLICY Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for commercial application) from original date of purchase, by original purchaser, to be free from defects in material and workmanship under correct, normal agricultural use and proper applications. - Page 4 960 Snowblower SNOWBLOWER This manual is for 96" Farm King Snowblower with a quick coupling hitch. With this hitch, the blower can be mounted on a tractor with either a quick hitch or the standard three-point hitch. All 96" Farm King snowblowers have a sealed oil bath gearbox. The snowblower is the push type and will mount to a tractor with 540 rpm PTO.
- Page 5 OPERATING INSTRUCTIONS Do not operate the blower in the fully raised position. The three-point hitch on some tractors rises high enough to cause the PTO shaft to bind. This can cause damage to the PTO shaft and/or to the hitch and pins. Depth of cut can be partially controlled by tilting the blower forward or backward.
- Page 6 OPERATING INSTRUCTIONS – cont’d. Danger: Always stop blowing for servicing or unplugging. The PTO should be disengaged before dismounting from the tractor. Caution: Always check to see that both ends of the PTO shaft are securely attached as per instructions every time you are preparing to use the Snowblower.
- Page 7 ASSEMBLY INSTRUCTIONS Fasten the two quick hitch arms (#57 & #58, left and right) to the main body. Use eight 5/8” x 1 ¼” hex bolts, lock washers and hex nuts. Note: Lift arms for quick coupling hitch are 30 ¾” long versus 35” for the standard three point hitch.
- Page 8 ASSEMBLY INSTRUCTIONS – cont’d. Mounting blower on tractor: The pins supplied with the snowblower are for a category 2 quick hitch. The quick coupling hitch has two holes both at the top of the hitch and at each lift arm. When using a quick coupler, the pins must be in the inside set of holes.
- Page 9 960 Snowblower ASSEMBLY INSTRUCTIONS – cont’d. PTO SHIELD All snowblowers are supplied with a PTO shield (#61). To install, remove the two rear bolts at the top of the gearbox (#38). Bolt the PTO shield to the gearbox by the hinges using these same bolts. A utility spring (#62) keeps the shield in place.
- Page 10 960 Snowblower 96” SNOWBLOWER W/QUICK HITCH - 8 -...
- Page 11 960 Snowblower 96” SNOWBLOWER W/QUICK HITCH - 9 -...
- Page 12 WHEN ORDERING PARTS Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part. ITEM PART # DESCRIPTION 902403...
- Page 13 965923 Swivel Arm 967140 1'' x 10ga Narrow Rim Washer (pl) BU50505 Gearbox Complete w/o Oil F0585 PTO Shaft Complete 965925 Drive Shaft 968807 3/8'' x 3/8'' x 2'' Key 81627 1/2'' x 3'' Hex Bolt (pl) 902377 3/8'' x 3/8'' x 4 3/4'' Key 81552 5/16'' x 1 1/4'' Gr.
- Page 14 960 Snowblower 96” FARM KING SNOWBLOWER PTO (Standard and Optional Long) - 12 -...
- Page 15 960 FARM KING SNOWBLOWER PTO (Standard) Item # Part # Description F0585 Shaft Complete 907987 Tractor Half of PTO (Shear) 907988 Implement Half of PTO (Clamp Yoke) 907989 Shear Assembly 936199 Safety Slide Lock Repair Kit (Collar, Spring, Ret. Ring, 2-Pawls) 936249 Shear Assembly Repair Kit (3/8"...
- Page 16 960 FARM KING SNOWBLOWER PTO (Optional Long) Item # Part # Description F0586 Shaft Complete 907996 Tractor Half of PTO (Shear) 907997 Implement Half of PTO (Clamp Yoke) 936429 Shear Assembly 936199 Safety Slide Lock Repair Kit (Collar, Spring, Ret. Ring, 2-Pawls) 936249 Shear Assembly Repair Kit (3/8"...
- Page 17 96” FARM KING SNOWBLOWER GEARBOX 960 FK, 74", 85", & 96" ALLIED SNOWBLOWER GEARBOX PARTS LIST Item # Part # BU50505 BU50310 BU500089-3 BU50457 BU500167-1 BU50458 BU50507 BU50502 BU50329 BU50331 BU50428 BU50444 BU50422-1 BU50415 BU575902 BU575901 BU50429 BU50210X BU575907 BU575906 BU500397-6 BU50417-1 Description...
- Page 18 1.75 X 5 CYLINDER ASSEMBLY Item # Part # 24930 115367 112104 X2669 3.5 x 8 CYLINDER ASSEMBLY Item # Part # 24803 24804 113934 X2098 Description Cyl Complete Tube Weldt Shaft Weldt 1.0 Dia Seal Kit Description Cyl Complete Tube Weldt Piston Rod 1.5 Dia Seal Kit...
- Page 19 96” FARM KING SNOWBLOWER BUNDLES QUANTITY BUNDLE NO. 96” Farm King Snowblower w/Hydraulic Chute Control & 3-Blade Fan – Y960Q F0624 F9203 F9211 F0585 96” Farm King Snowblower w/Hydraulic Chute Control & 4-Blade Fan – Y960Q-4 F9203 F9211 F0625 F0585 96”...
- Page 20 SK, Regina (306) 781-2300 ON, Woodstock (519) 539-0435 ON, Jasper (613) 283-1758 QC, Dorion (450) 455-4840 Buhler Manufacturing “ a partnership” 301 Mountain Street S. Morden MB. R6M 1X7 Ph.: (204) 822-4467 Fax: (204) 822-6348 www.buhler.com U.S. WAREHOUSES ND, Bismarck...
