85” Snowblower TABLE OF CONTENTS DESCRIPTION PAGE Warranty ...1 Safety Instructions ...2 Safety Sign Locations ...3 Assembly Instructions ...4 Operating Instructions ...5 85” Allied Snowblower Drawings...6 85” Allied Snowblower Parts List...8 Manual Chute Control Instructions & Drawing ...10 Manual Chute Control Parts List ...11 Hydraulic Chute Control Instructions &... -
Page 3: Warranty
85” Snowblower WARRANTY POLICY Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for commercial application) from original date of purchase, by original purchaser, to be free from defects in material and workmanship under correct, normal agricultural use and proper applications. -
Page 4: Safety Instructions
Always review operator’s manual before starting new machine. Do not let inexperienced operators or children run this equipment. Never service or clean unit while it is running. Do not remove shields. Stay clear of augers. Stay clear of discharge chute. Rocks can be picked up and thrown. Poor judgment results in accidents. -
Page 5: Safety Sign Locations

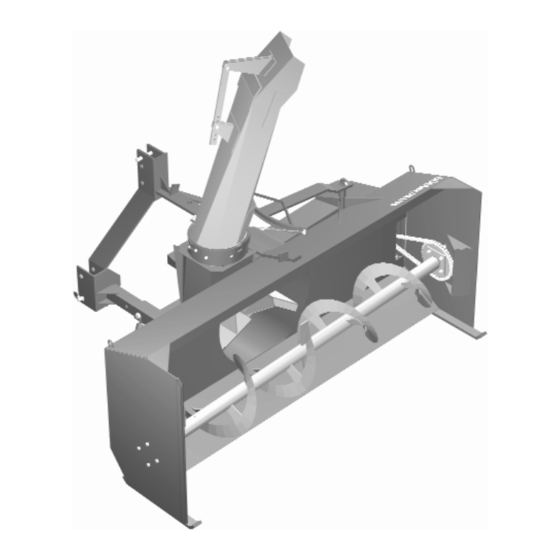

85” Snowblower SNOWBLOWER This manual covers the 85” model snowblower. When ordering parts, be sure to list the serial number of your unit and blower width. The snowblower is the push type and will mount to a tractor with a category 1 or 2 three point hitch and 540 rpm PTO. The 85" model has a single auger and comes with a hydraulic control for the chute with a manual control available as an option. -
Page 6: Assembly Instructions
BASIC ASSEMBLY INSTRUCTIONS STEP 1. Assemble the snow chute, referring to instructions under the appropriate heading for “manual chute” or “hydraulic chute”. STEP 2. Check the gearbox and fill to the lower level with a winter grade transmission oil. STEP 3. The snowblower is shipped with lower three point hitch pins for a category 2 hitch. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Adjust the top link of the tractor hitch so that the snowblower is level when resting on the ground. Adjust the lower link sway chains or blocks on the tractor to restrict side movement of the blower when operating. Run the blower at low RPM to check operation. -
Page 8: 85" Allied Snowblower Drawings
85” Snowblower 85" ALLIED SNOWBLOWER - 6 -... - Page 9 85” Snowblower - 7 -...
-
Page 10: 85" Allied Snowblower Parts List
WHEN ORDERING PARTS Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part. 85'' ALLIED SNOWBLOWER PARTS LIST Item # Part # Description... - Page 11 81636 1/2'' Hex Nut (pl) 812364 1/2'' Lock Nut (pl) 81592 3/8'' Hex Nut (pl) 84217 3/8'' Wing Nut (pl) 812362 5/16'' Lock Nut (pl) 81701 3/4'' Lock Washer (pl) 81678 5/8'' B.S. Flat Washer (pl) 81637 1/2'' Lock Washer (pl) 81593 3/8'' Lock Washer (pl) 936402...
-
Page 12: Manual Chute Control Instructions & Drawing
Remove spout clamp and install chute. Mount handle brackets to snowblower & hitch. Insert handle extension, placing a 1” flat washer on both sides of the front handle bracket; secure with 3/16 cotter pin. Attach handle to handle extension. Turn chute away from handle. Attach end of cable with cable bolt. -
Page 13: Manual Chute Control Parts List
85'' Manual Chute Control Item # Part # 965648 965970A 102157 108014 108015 108020 108019 108265 81207 811631 961658 812363 81552 81568 81569 84522 84498 965646 961876 961012 903523 Description Spout Weldment Spout Clamp Crank Handle Handle Extension Handle Bracket Handle Bracket Cable Bolt Chute Cable 3/16'' x 66''... -
Page 14: Hydraulic Chute Control Instructions & Drawing
NOTE: Before mounting chute, apply a heavy coating of light grease to chute ring. Remove spout clamp and mount chute. Mount pivot arm. NOTE: Flat Washers are supplied for height spacer if required. Connect one end of cable to pivot arm with cable clamp. Wrap cable completely around chute ring. -
Page 15: Hydraulic Chute Control Parts List
85'' Hydraulic Chute Control Item # Part # 965648 965970A 108979 107780 961658 965646 961876 961012 967140 812435 81552 81569 81568 903523 Description Discharge Chute Spout Clamp Cable Pivot Arm Chute Cable 1/4'' Cable Clamp Spout Adjustment Bar 1/2'' x 1 3/8'' Clevis Pin #16 Hair Pin Clip 1'' Flat Washer 1/4'' x 1 3/4'' Cotter Pin... -
Page 16: 85" Allied Snowblower Pto Drawing
85” Snowblower 85” ALLIED SNOWBLOWER PTO - 14 -... -
Page 17: 85" Allied Snowblower Pto Parts Lists
SNOWBLOWER PTO (STANDARD) Item # Part # Description F842 Shaft Complete 936263 Tractor Half of PTO (Shear) 936264 Implement Half of PTO (Clamp Yoke) 936277 Shear Assembly 936199 Safety Slide Lock Repair Kit (Collar, Spring, Ret. Ring, 2-Pawls) 936249 Shear Assembly Repair Kit (3/8'' x 1/2'' Bolt, Lube, Blank, 31 - 1/4'' Balls) 903296 Shear Bolt - 5/16"... - Page 18 SNOWBLOWER PTO (OPTIONAL LONG) Item # Part # Description F844 Shaft Complete 936285 Tractor Half of PTO (Shear) 936280 Implement Half of PTO (Clamp Yoke) 936277 Shear Assembly 936199 Safety Slide Lock Repair Kit (Collar, Spring, Ret. Ring, 2-Pawls) 936249 Shear Assembly Repair Kit (3/8'' x 1/2'' Bolt, Lube, Blank, 31-1/4'' Balls) 903296...
-
Page 19: Gearbox Assembly Drawing
85” Snowblower GEAR BOX ASSEMBLY - 17 -... -
Page 20: Gearbox Assembly Parts List
GEARBOX ASSEMBLY PARTS LIST - BU50505 Item # Part # BU575901 BU575902 BU50444 BU50417-1 BU50310 BU50502 BU50507 BU50422-1 BU50415 BU50414-1 BU50414-2 BU50414-3 BU50458 BU500397-6 BU50429 BU50329 BU50457 BU500089-3 BU500167-1 BU50428 BU50331 BU575906 BU575907 BU278811 Description Bearing Cone (13687) Bearing Cup (13620) Staking Lock Nut Gear Box Casting Pinion Shaft... -
Page 21: Cylinder Assembly Drawings & Parts Lists
1.75 X 5 CYLINDER ASSEMBLY Item # Part # 24930 115367 112104 X2669 3.5 x 8 CYLINDER ASSEMBLY Item # Part # 24803 24804 113934 X2098 Description Cyl Complete Tube Weldt Shaft Weldt 1.0 Dia Seal Kit Description Cyl Complete Tube Weldt Piston Rod 1.5 Dia Seal Kit... -
Page 22: Shipping Bundles
85" ALLIED SNOWBLOWER BUNDLES QUANTITY BUNDLE NO. 85" SNOWBLOWER W/HYDRAULIC CONTROL - YC8520 FX0091 FX9700 OPTIONS AVAILABLE FX8044 - Hand Crank Kit for 85” only FX7880 - Hydraulic Chute Control Kit (85") F842 - Standard PTO for 85” only F844 - 36" Optional Long PTO F9116 - Hydraulic Cylinder &... - Page 23 SK, Regina (306) 781-2300 ON, Woodstock (519) 539-0435 ON, Jasper (613) 283-1758 QC, Dorion (450) 455-4840 Buhler Manufacturing “ a partnership” 301 Mountain Street S. Morden MB. R6M 1X7 Ph.: (204) 822-4467 Fax: (204) 822-6348 www.buhler.com U.S. WAREHOUSES ND, Bismarck...
