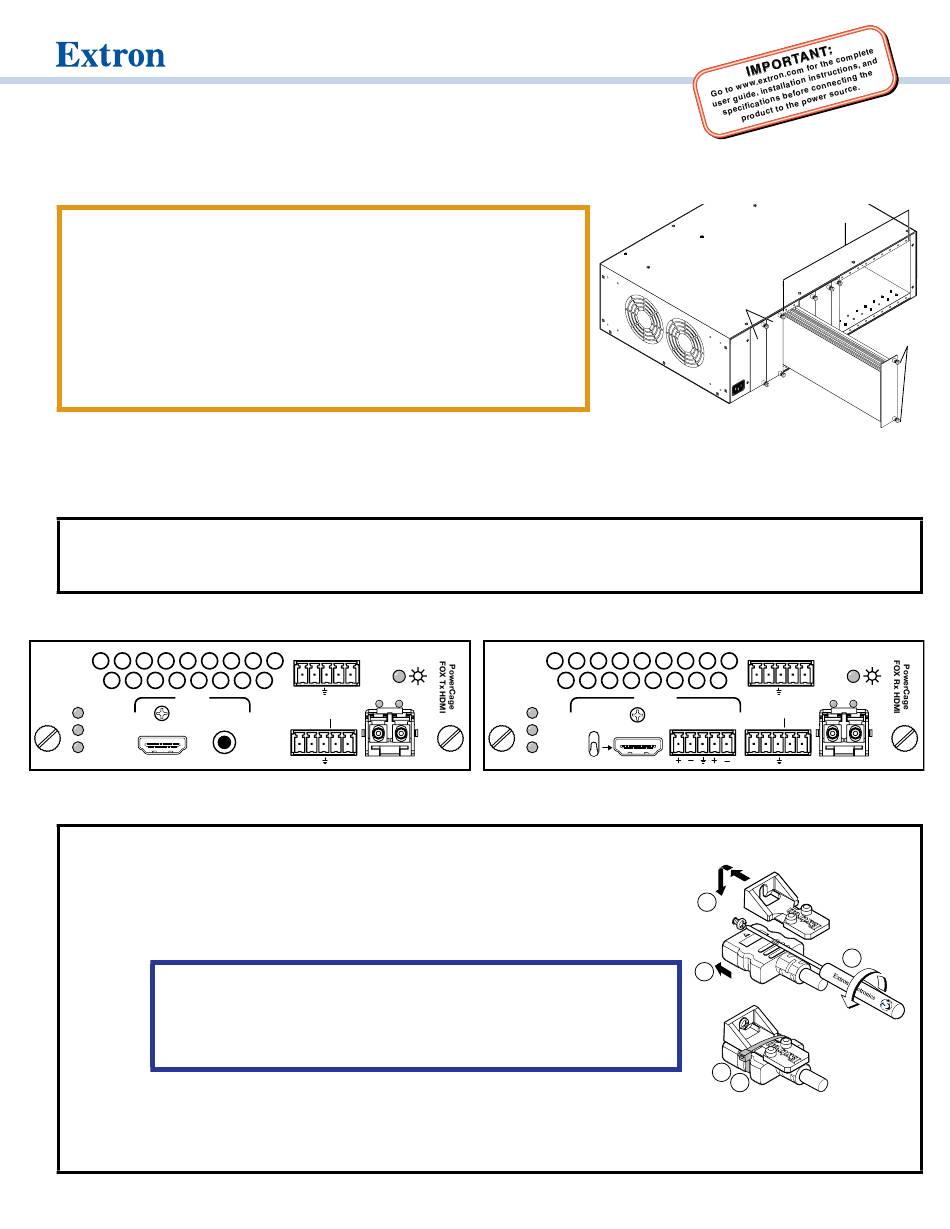

PowerCage FOX HDMI • Setup Guide
This guide provides quick start instructions for an experienced installer to set up and operate the Extron PowerCage FOX HDMI fiber optic
extenders.
CLASS 1 LASER PRODUCT, see
www.extron.com
CAUTION:
•
These units output continuous invisible light, which may be harmful to the
eyes; use with caution. For additional safety, plug the attached dust caps
into the optical transceivers when the fiber optic cable is unplugged.
•
Ces produits émettent une lumière invisible continue, qui peut être
dangereuse pour les yeux ; à utiliser avec précaution. Pour une sécurité
renforcée, associez les bouchons anti-poussière à l'ensemble émetteur/
récepteur optique lorsque le câble fibre optique est débranché.

Installation

Step 1 — Mounting
Install the Tx, Rx, or both units into PowerCage enclosures as required.
NOTES:
•
PowerCage boards are hot-swappable.
•
Ensure the boards are flush with the rear of the enclosure and the screws are tightened securely before applying power.
Step 2 — Input and Output Connections
INPUT
HDMI
HDCP
AUDIO
HDMI
a.
Connect an HDMI video source to the transmitter HDMI connector.
b. Connect an HDMI video display to the receiver HDMI Output connector.
NOTE:
Use a LockIt™ Lacing Bracket to
1. Plug the HDMI cable into the panel connection
2. Loosen the HDMI connection mounting screw from the panel enough to allow the
LockIt lacing bracket to be placed over it. The screw does not have to be removed.
3. Place the LockIt lacing bracket on the screw and against the HDMI connector, then
tighten the screw to secure the bracket.
ATTENTION:
•
Do not overtighten the HDMI connector mounting screw. The shield it
fastens to is very thin and can easily be stripped.
•
Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage
auquel elle est attachée est très fin et peut facilement être dénudé.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing
bracket as shown.
5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then
remove any excess length.
PowerCage FOX HDMI
RS-232
OVER FIBER
Tx Rx
Tx
REMOTE
RS-232 ALARM
1 2
AUDIO Tx Rx
securely fasten an HDMI cable to each device as follows
User Guide at
Rx
HDMI
HDCP
AUDIO
16 available single board slots or
8 double board slots
Power
Supply
/60 Hz
50
V
40 MA X.
10 0-2 5A
RS-232
OVER FIBER
Tx Rx
OUTPUT
AUDIO
REMOTE
AUDIO
L R RS-232
ON
OFF Tx Rx
HDMI
.
3
1
3
4
5
Screws
Tx Rx
ALARM
1 2
2
1
