Matrix COSEC ARGO Manual page 6

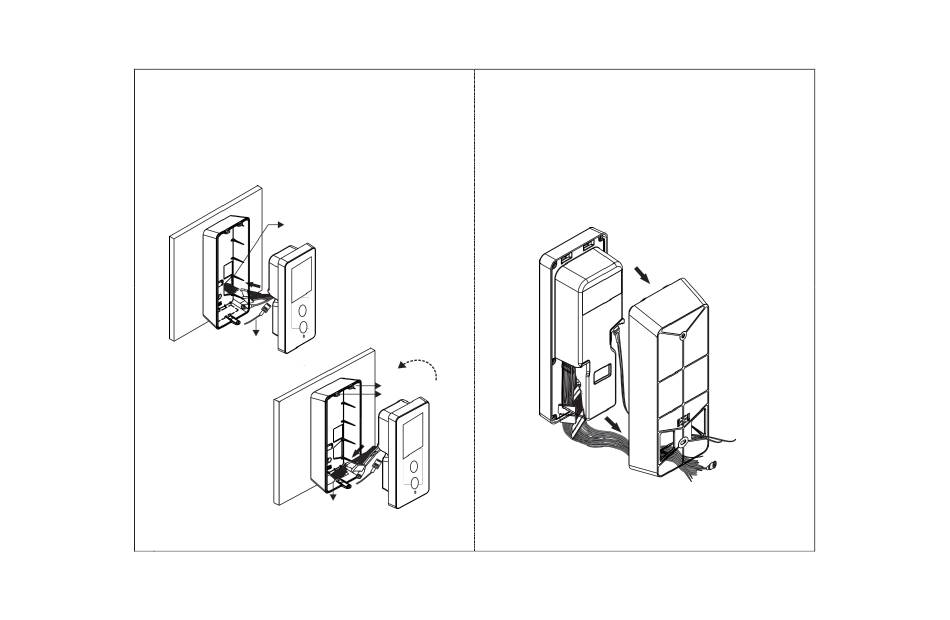

Step 3: Connect the cables of the COSEC ARGO unit and lead all
the cables through the duct of the Wall Mounting plate into the
electrical box recessed in the wall i.e. concealed wiring or through
the bottom of the device in non-concealed wiring.
Duct for Concealed
Wiring
Cable
Connectors
Knock Out Area
for Non-Concealed Wiring
11
Keep all the cables parallel to the side of the COSEC ARGO
•
body in such a way that it should not cover the back
portion of the unit as illustrated in figure below.
Radially curve all the cables and lead it through the duct to fit
•
the wall mounting plate easily with COSEC ARGO.
Mounting
Slots
12
