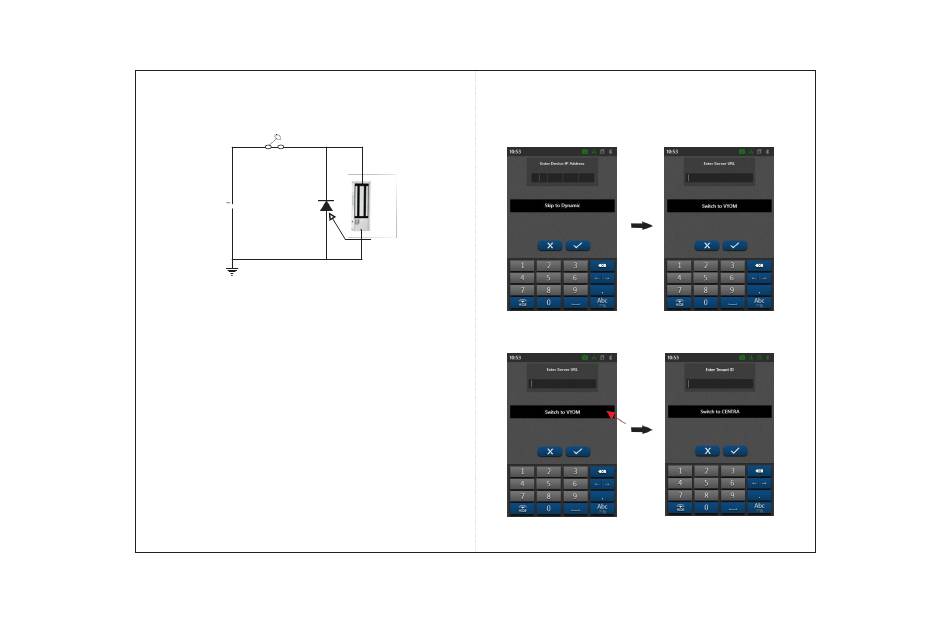

Diode Connection for Back EMF Protection
Relay Relay
Pin 1 Pin 2
Cathode
+
Power
-
Anode
GND
Connect the Overswing diode in reverse biased condition
•
parallel to the EM Lock for better lifetime contact and to
protect the device from inductive kickback.
23
Configuring the Settings from ARGO FACE
Assigning IP/ Server Address to Device
EM
Lock
Reverse biased
Diode
Figure 17: Set IP Address
(Static/ Dynamic)
In case of COSEC VYOM
Figure 19: Tap Switch to VYOM
(For first time user only)
Figure 18: Set Server Address
(COSEC CENTRA)
Figure 20: Tenant ID (COSEC VYOM)
