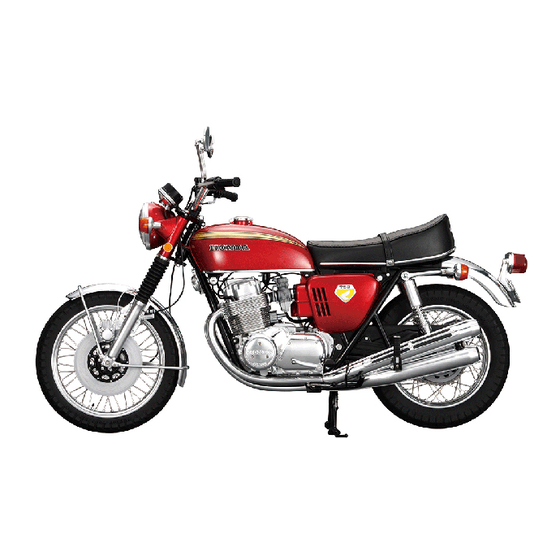

Deagostini MODEL SPACE Honda CB750 FOUR Assembly Manual

Pack 07
Hide thumbs Also See for MODEL SPACE Honda CB750 FOUR:

Advertisement

Quick Links

Download this manual
BUILD YOUR OWN
TM
Pack 07
97

Advertisement

loading
Need help?

Need help?

Do you have a question about the MODEL SPACE Honda CB750 FOUR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deagostini MODEL SPACE Honda CB750 FOUR

Summary of Contents for Deagostini MODEL SPACE Honda CB750 FOUR

  • Page 1 BUILD YOUR OWN Pack 07...
  • Page 2 CONTENTS Assembly Guide Stage 21: The right outer exhaust pipe Stage 22: The first shock absorber Stage 23: The second shock absorber Stage 24: The rear wheel Editorial and design by Continuo Creative, 39-41 North Road, London N7 9DP. Published in the UK by De Agostini UK Ltd, Battersea Studios 2, 82 Silverthorne Road, London SW8 3HE.
  • Page 3 Honda CB750 FOUR: Assembly Guide Stage 21 The right outer exhaust pipe Locate the ‘B’ stamped on the right outer exhaust pipe (circled). Remove the masking tape holding the two halves of the upper right silencer together. Your parts Diffuser Right outer exhaust pipe Place the hole in the end of the exhaust pipe over the circled hole in the lower right...
  • Page 4 Honda CB750 FOUR: Assembly Guide Place a type P screw into the aligned holes. Tighten the type P screw into place, securing the exhaust pipe to the silencer outside. Align the three arrowed projections and holes of the two halves of the lower right silencer and push them together.
  • Page 5 Honda CB750 FOUR: Assembly Guide Hold the two silencer halves together and insert a type P Tighten the screw into the hole. screw into the hole nearest the exhaust pipe. Tighten a type P screw into the middle hole.
  • Page 6 Honda CB750 FOUR: Assembly Guide Locate the circled projection at the end of the silencer Align the projection and notch, and push the diffuser into and the notch in the diffuser, both circled. the end of the silencer. Loosen the middle screw a little if the diffuser is a tight fit.
  • Page 7 Honda CB750 FOUR: Assembly Guide Locate the indicated holes on the upper and Align the two sets of holes on the upper and lower silencers. lower silencers. Place a type G screw into the indicated hole.
  • Page 8 Honda CB750 FOUR: Assembly Guide Tighten the type G screw into place. Place a type B screw into the aligned holes at the ends of the silencers. Stage complete Tighten the type B screw into the holes to fix the silencers together.
  • Page 9 Honda CB750 FOUR: Assembly Guide Stage 22 The first shock absorber Apply a small amount of grease, provided with Stage 6, to the end of a toothpick. Your parts Shock absorber Screw (type F) Threaded pin Prepare Grease (Stage 6) Toothpick This is the right amount of grease.
  • Page 10 Honda CB750 FOUR: Assembly Guide Locate the join between the case and the damper Firmly grasp the shock absorber at each end. (red line). Push the ends closer together and then release. This will spread the grease. Insert the toothpick between two turns at the end of the spring and apply the grease to the join highlighted in the previous step.
  • Page 11 Honda CB750 FOUR: Assembly Guide Stage 23 The second shock absorber Apply a small amount of grease, provided with Stage 6, to the end of a toothpick. Your parts Shock absorber Threaded pin Screw (type F) Prepare Grease (Stage 6) Toothpick This is the right amount of grease.
  • Page 12 Honda CB750 FOUR: Assembly Guide Locate the join between the case and the damper Firmly grasp the shock absorber at each end. Push the (red line). ends closer together and then release. This will spread the grease. Insert the toothpick between two turns at the end of the spring and apply the grease to the join highlighted in the previous step.

  • Page 13: The Rear Wheel

    Honda CB750 FOUR: Assembly Guide Stage 24 The rear wheel Right Left Your parts Rear wheel When viewed from the front, as shown here, the rear wheel should be almost symmetrical, with the Tools exception of the left side, where Soft cloth there is a larger projection.
  • Page 14 Honda CB750 FOUR: Assembly Guide Locate the square projection inside the cylindrical Locate the small hole next to the projection on the projection on the left side of the rear wheel. right side of the rear wheel. Check each of the spokes. Hold the centre and gently If parts need gluing, it is best to use a non-whitening move the spoke back and forth.
  • Page 15 Honda CB750 FOUR: Assembly Guide Apply a small amount of superglue to the end of the Wipe away any marks with a soft cloth. spoke. You may find this easier if your glue bottle has a fine nozzle, like the one shown here. Stage complete Place the wheel back into the packaging that it came in, to prevent any damage.
  • Page 16 Honda CB750 FOUR:...
