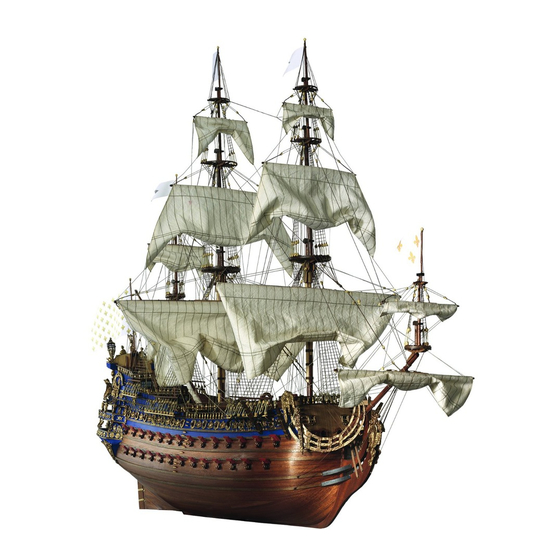

- Page 1 BUILD THE Soleil Royal Soleil Royal Pack 4 The flagship of King Louis XIV www.model-space.com...
- Page 2 Contents Contents Assembly Guide Page Stage 30: Dummy gun mounts, gun and barrels Stage 31: Dummy gun mounts, guns and grating pieces Stage 32: Dummy gun mounts, guns and barrels Stage 33: Gun port strips, nails and dummy gun mounts Stage 34: Gun port strip and ladder parts Stage 35: Gun port strip and nails Stage 36: Gun port strips, dummy gun mounts and barrels...
- Page 3 Stage 30 Assembly Guide Dummy gun mounts, gun and barrels 1 Guns. 2 Barrels. 3 Dummy gun mounts. 4 Gun carriages. Take the two barrels and paint them with a clear varnish. Retrieve the leftover grating pieces and assemble them as before.
- Page 4 Smooth the sides of the grating piece with sandpaper. Cut lengths of 2 x 3mm wooden strip and glue to the sides of the grating piece. Smooth the surface of the grating and slightly round the corners on one side. Apply glue to the grating and place onto the quarterdeck, between the other two gratings, as shown.
- Page 5 Stage 31 Assembly Guide Dummy gun mounts, guns and grating pieces 1 Gun carriages. 2 Guns. 3 Dummy gun mounts. 4 Wooden strip 2 x 3 x 300mm. 5 Grating pieces. Assemble the grating pieces received with this stage, as you did before. Retrieve the leftover grating piece from the previous stage and position it next to the piece from this stage, as shown.
- Page 6 Smooth the edges of the two grating pieces with sandpaper. Then cut and glue another two shorter lengths to complete the frame. Once dry, smooth the edges and round the corners as with previous gratings. Paint the grating with clear varnish. Cut a length of 2 x 3 x 300mm wooden strip to fit between the two grating pieces.
- Page 7 Stage 32 Assembly Guide Dummy gun mounts, guns and barrels 1 Guns. 2 Barrels. 3 Dummy gun mounts. 4 Gun carriages. Retrieve the wooden strip from Stage 15. Cut eight 12mm lengths from the strip. There are two ways to build ladders, and this is the first. Start by glueing one of the 12mm lengths into the end groove of one of the ladder sides.
- Page 8 Then glue the other ladder side to the free ends of the Apply a drop of glue to each of the grooves in the sides and 12mm lengths. then slide in the remaining 12mm lengths. Use sandpaper to smooth the edges and corners of the assembled ladder.
- Page 9 Stage 33 Assembly Guide Gun port strips, nails and dummy gun mounts 1 Nails. 2 Gun port strips. 3 Dummy gun mounts. Cut the two strips from the fret boards and remove the squares from them. Smooth the edges of the strips with sandpaper.
- Page 10 Paint the inside of the strip that will be visible above the forecastle deck with wood stain, as shown. Apply glue to the contact points between the strip and the frames and deck, then hold the strip in place. The front of the strip should be flush with the frame, matching the curvature exactly, as shown.
- Page 11 Stage 34 Assembly Guide Gun port strip and ladder parts Remove the squares from the gun port strip. 1 Ladder sides. 2 Gun port strip. 3 Wooden strips 1 x 4 x 100mm. Smooth the strip with sandpaper. Test-fit the strip along the port side of the ship, aft of the strip fitted in the previous stage.
- Page 12 This is how the front of the strip should fit with the one in front of it. Apply glue to the contact points and place the strip into position. Fix the aft end of the strip with nails, as indicated by the arrows. This is how the inside of the strip should look from the other side of the ship.
- Page 13 Stage 35 Assembly Guide Gun port strip and nails Remove the squares from the gun port strip. 1 Gun port strip. 2 Nails. Smooth the strip with sandpaper. Test-fit the strip along the port side of the ship, aft of the strip fitted in the previous stage. Check that it is flush with the surrounding parts and adjust the shape if necessary.
- Page 14 Fix the strip to the frames with nails, as with the other strips. Apply glue to the contact points on the decks and frames. Cut the strips so they are flush with the transom, as indicated by the red lines. Here you can see how the strip should look when in place.
- Page 15 Stage 36 Assembly Guide Gun port strips, dummy gun mounts and barrels 1 Dummy gun mounts. 2 Gun port strips. 3 Barrels. Remove the gun port strips from the fret and then remove the squares from them. Smooth the strips with sandpaper. Mark the points where the frame blocks some of the gun port.
- Page 16 Apply glue to the sides of the frames and deck that will be Fit the strip into place and then nail into position in contact with the strip. to secure it. Glue two more mounts over the inside of the two rear Repeat Steps B-H to fit the second strip to the port side.
- Page 17 Stage 37 Assembly Guide Gun port strip and guns Smooth the edges of the strip received with this stage. 1 Guns. 2 Gun port strip. 3 Gun carriages. Paint the inner surface of the strip with wood stain. Test-fit the strip in place, above the strip from the previous stage, engaging it with the one in front.
- Page 18 This is what the strip should look Remove the part of like from the inside. the strip that extends past the transom using a sanding block or file. Here you can see that the strip is flush with the transom; Use a file to smooth the surface of the strips along the this is how your parts should look.
- Page 19 Stage 38 Assembly Guide Gun port strip and guns 1 Guns. 2 Gun port strip. 3 Gun carriages. Smooth the edges of the strip received with this stage. Apply glue to the sides of the frames and decks that will be in contact with the strip.
- Page 20 Sand the strips to prepare them for the coating strips. You Starting from the bow, file the frames to try and create a need to make the surface as smooth and flush as possible. Sand smooth curve in preparation for the planking. along the strips, working from bow to stern.
- Page 21 Stage 39 Assembly Guide Planking strips Before proceeding, check that you have removed any nail heads from the strips to create an even surface. Take a 2 x 5 x 250mm strip and immerse it in warm water. After a couple of minutes, remove it and wipe away excess water from it.
- Page 22 Repeat Steps A-F on the other side of the hull. Cut the strip so that it is aligned with the front of the transom piece. Take another strip and fix it above the first. You need to make sure that the two rows of planks are staggered (indicated by...
- Page 23 Stage 40 Assembly Guide Ladder parts, guns and nails 1 Guns. 2 Gun carriages. 3 Wooden strips 1 x 4 x 100mm. 4 Ladder sides. 5 Nails. Glue a plank aft of the one in the previous stage. Glue two more strips in the same row, one short and one long, to keep them staggered.
- Page 24 Glue another strip aft of the first. Fit another strip that ends 5mm forward of frame 11. Once dry, cut away the parts of the strips that are covering the gun ports. This is what the port side of your model should Repeat Steps A-G on the starboard side of the ship.
- Page 25 Stage 41 Assembly Guide Planking strips Glue and nail a fourth strip around the port bow. 1. Wooden strips 2 x 5 x 250mm. Glue a full strip (1) aft of the first and then an 80mm strip (2) aft of that. Glue and nail a final strip to this row.
- Page 26 Bend another strip around the bow, with the other end Fit another two strips to complete this row. positioned above the strip fitted in Step E. This should create a wedge-shaped gap between the two strips at the bow. Secure the strip with glue and nails. Complete the rest of the row, back to the transom.
- Page 27 Stage 42 Assembly Guide Ladder parts and grating pieces Cut nine 10mm lengths from the strip. 1 Ladder sides. 2 Wooden strips 1 x 4 x 100mm. 3 Wooden strip 2 x 3 x 300mm. 4 Grating pieces. Then glue the other ladder side to Glue a 10mm strip into the grooves the free ends of the 10mm lengths.
- Page 28 Secure the strip with glue and nails. Use another three strips to complete the row. Place another row of strips above the previous one. Cut the surplus from the strips at the bow and stern. Repeat This stage is now complete. Steps E-I on the Keep any materials you haven’t starboard side of...
