Snapshot

Snapshot mode enables you to capture sensor readings every time
time intervals.
Snapshot

Timing

Timing is used to set up and store simple time and speed measurements using digital switch type sensors.
Connect either one sensor to Input 1:A or two to Input 1:A and 2:B before selecting Timing. The options
available will depend on whether one or two sensors are connected.
For V-Log to be able to calculate speed or acceleration you will need to enter a measurement of the
apparatus used in the experiment e.g.

For Speed A to B this is the distance between the sensor connected to input A and the sensor
connected to input B (0.10 m to 6.00 m in steps of 0.10 m).

For Speed at A, using a single interrupt card, select the width of the card that will pass through the
Light gate (30 mm to 120 mm).
Upon completion of a timing event the measurement will be displayed on the LCD display.
Timing options are:

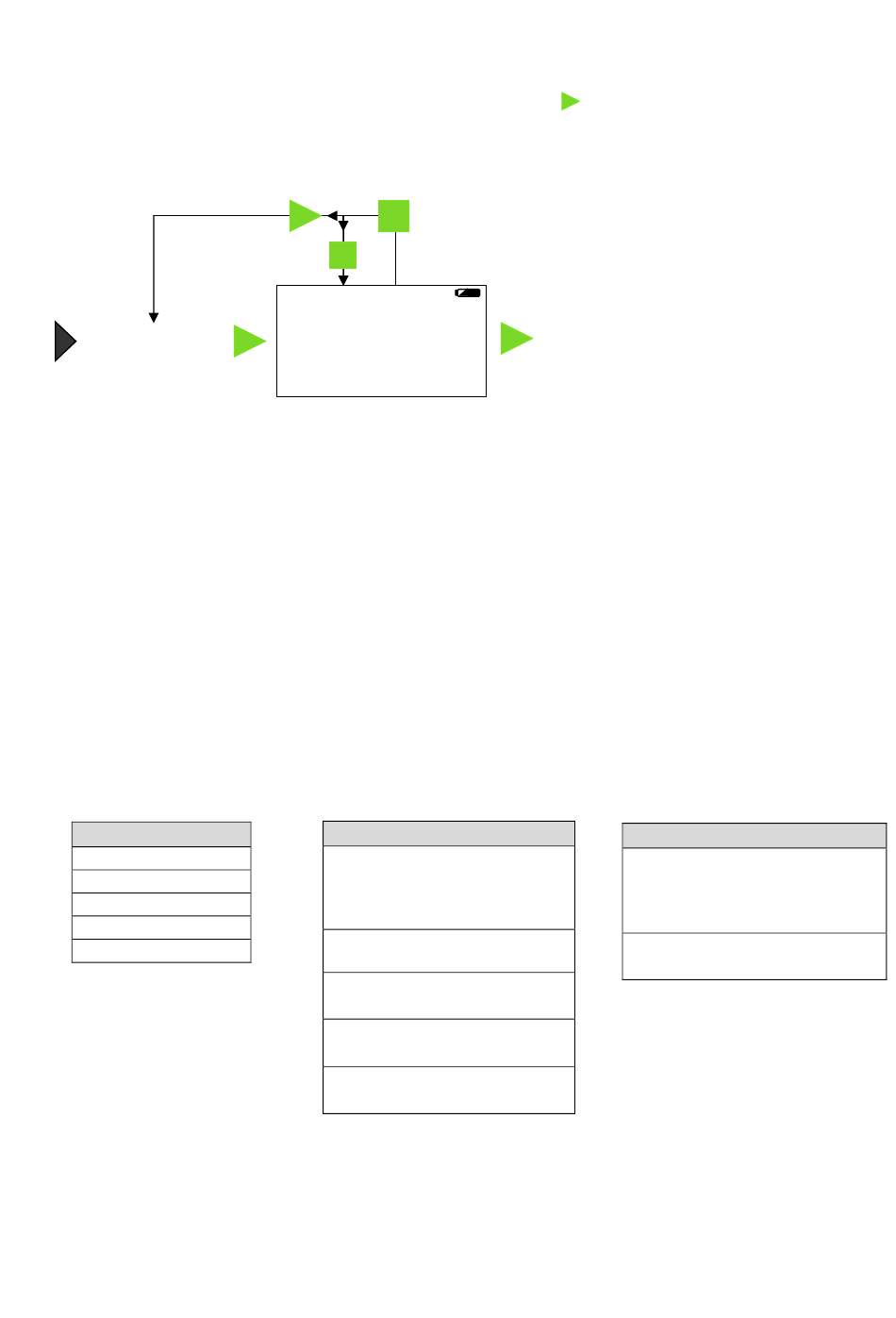

Time menu
Time at A
Time at A or B
Time from A to B
Period at A
Stopwatch A to A
 Data Harvest Group Ltd, 2014
Press stop to exit, then either enter to confirm
your choice or stop to continue logging
▼
5) 48.8
dBA
6) 356
lx
˚C
7) 24.0
Samples taken 8
Speed menu
Speed at A using:

Double Interrupt card

Picket fence

Spoked pulley
Speed at A or B using:

Single Interrupt card
3 Speeds at A or B using:

Single Interrupt card
Speed from A to B using

D
istance A to B
Speed at A then B using:

Single Interrupt card
is pressed, rather than at regular
Press the enter button to
take a sample
7
DS133 (5)
Acceleration menu
Acceleration at A using:

Double Interrupt card

Picket fence

Spoked pulley
Acceleration A to B using:

Single Interrupt card
