Wyrestorm NHD-250-RX Quick Start Manual

NetworkHD™ 200 Series AV over IP
H.264 Multiview Processor

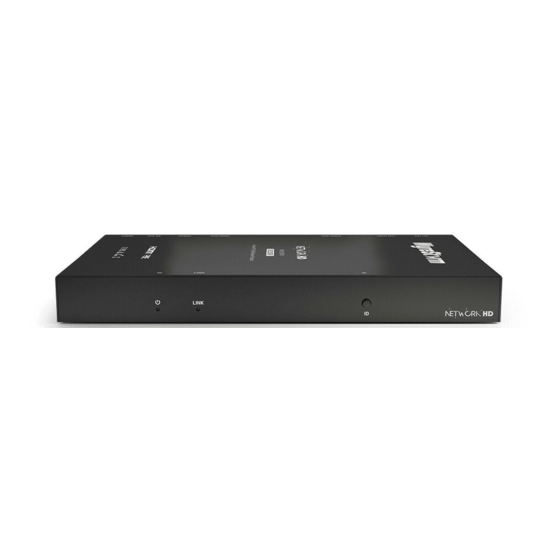

NHD-250-RX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the NetworkHD product pages download section at wyrestorm.
com to check for the latest firmware, document versions, and WyreStorm
Management Suite configuration tools.
• Install the latest firmware onto all encoders and decoders using the
Maintenance Tool found in the Management Suite and via the NHD-000-
CTL web interface. Full firmware update instructions are included with the
firmware download.
• NetworkHD requires a Layer 2+ or Layer 3 managed switch network with
support for Multicast & IGMP snooping enabled.
• WyreStorm highly recommends using network switches listed in the
NetworkHD Switch Recommendation Guide.
verified by WyreStorm to meet the requirements of a NetworkHD system.
In the Box
1x NHD-250-RX Decoder
1x 12V DC Power Supply (US | UK | EU)
3x 3-pin Phoenix Connectors
2x Rack Mounting Brackets
2x Wall Mounting Brackets
1x Quick Start Guide (This Document)

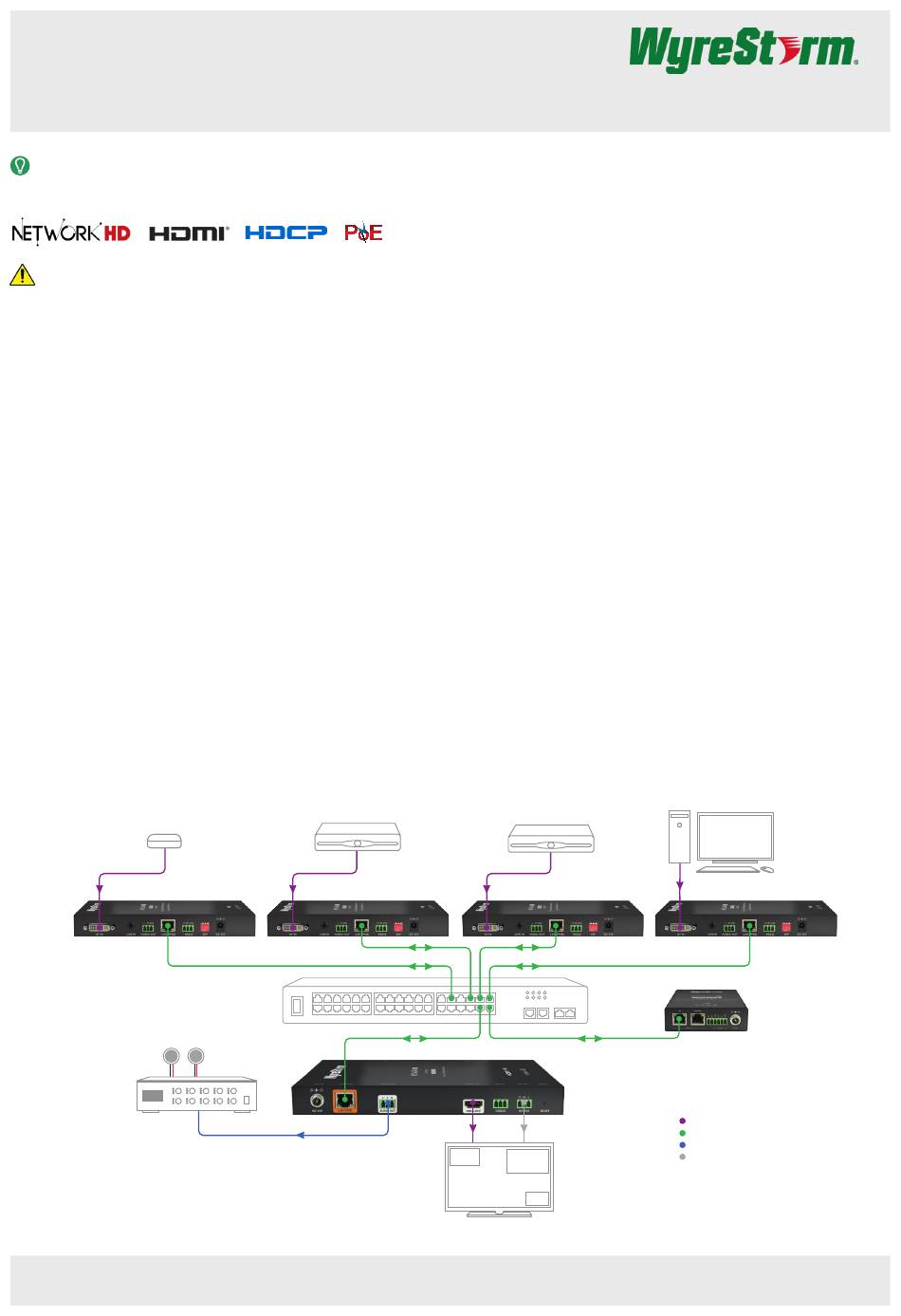

Basic Wiring Diagram
Media Player
Digital Video
Copyright © 2019 WyreStorm Technologies |
NHD-250-RX v1 Quickstart Guide | 19220
These switches have been
Satellite Box 1
Digital Video
NHD-200-TX
Network
Switch
Analog Audio
wyrestorm.com
• Configure all network switches to the exact specification of the guides at
wyrestorm.com prior to connecting any NetworkHD devices.
• NetworkHD uses stateless address autoconfiguration (auto-IP) to assign
link-local IP addresses in the range of 169.254.x.x to encoders and decoders
out of the box. Your PC must be set to an address in this range in order to
discover the encoders, decoders and NHD-000-CTL.
• WyreStorm recommends the use of the NHD-000-RACK4 for installations
containing multiple NetworkHD devices. Use of this product provides an
enclosure to mount and secure all NetworkHD devices in a standard 19-inch
rack frame (EIA-310).
Additional Information
More information and required software can be found within the Download
section of the product page on
• Management Suite v1.4 or Higher
• NetworkHD Switch Recommendations
• NetworkHD Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• NetworkHD Touch Installation Guide
• NetworkHD Touch User Guide
• Drivers for Popular Control Systems
Satellite Box 2
Digital Video
NHD-200-TX
Ethernet Ethernet
Ethernet
Digital Video RS-232
Satellite
Media
Box 1
Player
Satellite
Box 2
PC
1 of 4
Quickstart Guide
wyrestorm.com.
