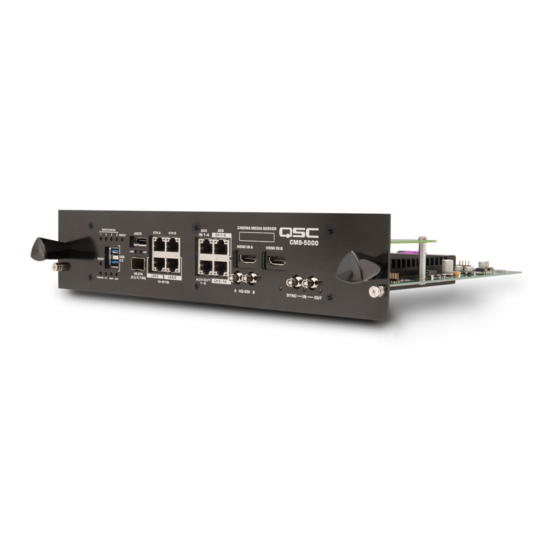

Summary of Contents for QSC CMS-5000

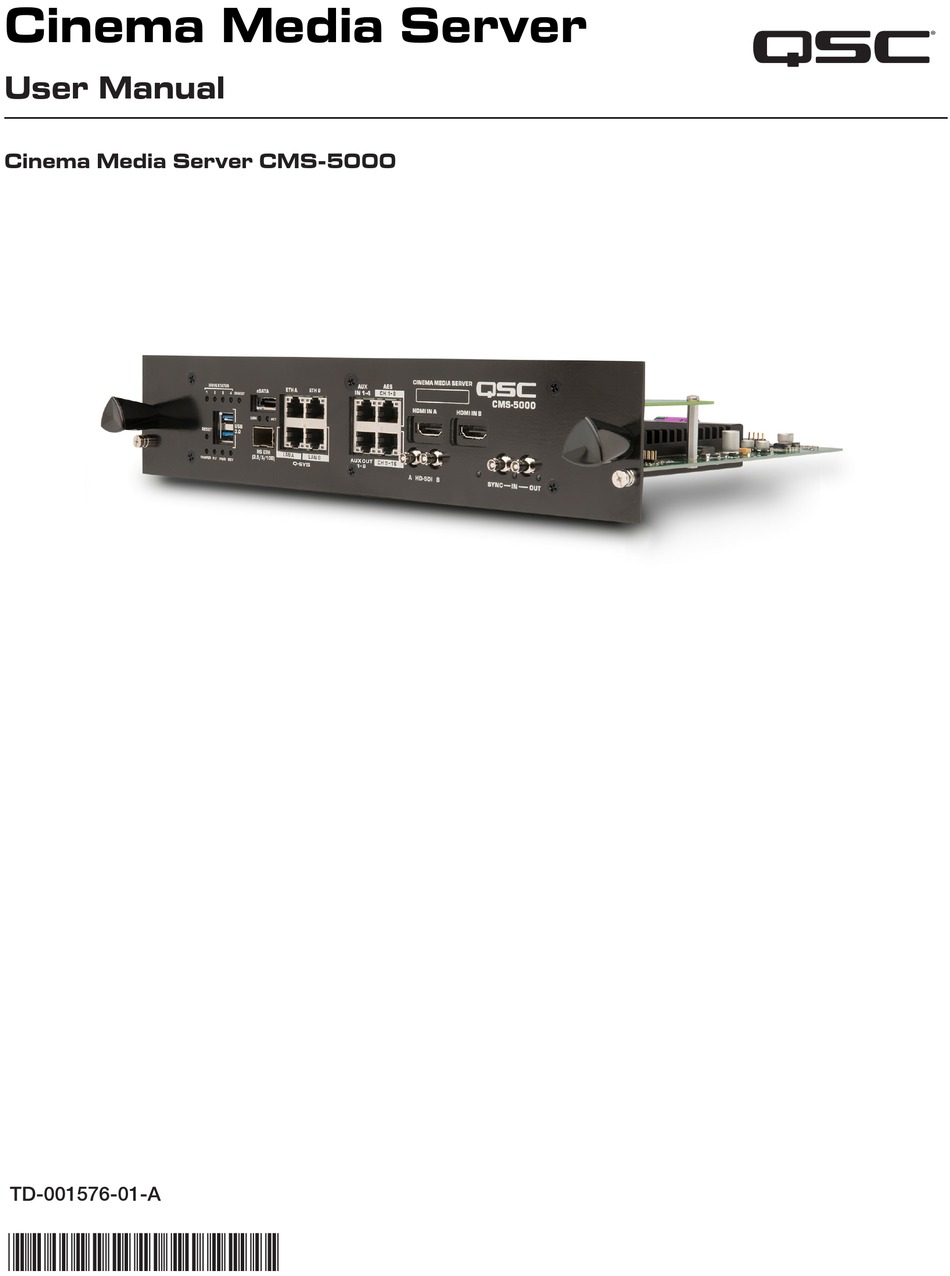

- Page 1 Cinema Media Server ® User Manual Cinema Media Server CMS-5000 TD-001576-01-A *TD-001576-01*...
-
Page 2: Explanation Of Terms And Symbols
QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs. -
Page 3: Lithium Battery Warning
The CMS-5000 is a FIPS-140-2 Certified device. It contains cryptographic devices and keys and must be handled correctly while in use and when removed from service. The end user of the CMS-5000 is classified by FIPS as a Cryptographic Officer and is responsible for placing and maintaining the projector system into a FIPS approved mode. -
Page 4: Rohs Statement
Cinema Media Server CMS-5000 is in compliance with European Directive 2015/863/EU. ® The QSC Cinema Media Server CMS-5000 is in compliance with “China RoHS” directives per GB/T26572. The following table is provided for product use in China and its territories: QSC CMS-5000 系列... -
Page 5: Table Of Contents
Projector Marriage with CMS-5000 . . . . . . . . . . . . . . . . . . - Page 6 CMS-5000 System Licenses . . . . . . . . . . . . . . . . . . .
- Page 7 Building Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Creating Schedules .
-
Page 8: Package Contents
The innovative CMS-5000 Cinema Media Server supports JPEG-2000 decoding of high frame rate 4K and 2K images with advanced solid state storage. In addition to an eSATA port and 1G Ethernet ports, the CMS-5000 includes two USB 3.0 ports and a 10G Ethernet port to enable accelerated content ingest. -
Page 9: Installation
• • Solid Red – Indicates a tamper event or non-recoverable error. The CMS-5000 is non-functional and will need to be returned to QSC. 10. FLT LED – Yellow indicates an error occurred during self-test. See the Troubleshooting Guide for more information. -
Page 10: Installing The Cms-5000 Into A Projector
The CMS-5000 is not “hot pluggable” so be sure power to the projector is turned off. With ESD protection in place, remove the CMS-5000 from its anti-static bag and slide it into the IMB slot on the projector. Make sure you properly seat the CMS-5000 in its slot. -
Page 11: Power-Up
12. For systems that have a Data network, typically used for transferring content between systems, install the data network Ethernet cable into ETH A, ETH B or the HS ETH port on the CMS-5000. Refer to Figure 1 for the location of these ports. For the HS ETH port an SFP+ module is required. -
Page 12: Setup
HS ETH : Not configured To change the IP: After marriage is complete, log in to the CMS-5000 UI and go to System ->Network to modify the IP settings. Alternately you can access the network settings via Q-SYS Configurator. You must be logged in as administrator or installer to modify the network settings. -
Page 13: Logging In
Navigation Buttons — Figure 6 — OVERVIEW – Navigates to the Overview page. Here you can log in and view information about your CMS-5000, as well as export DCI certificates and log packages. PLAYER – Navigates to the player page. Here you can control content playback, toggle the input source and manually trigger automation cues. -
Page 14: Server Setup
Updating the CMS-5000 Software To update the CMS-5000 software, you must first download a valid installation file from QSC.com. To perform the update, click on the Update Server button in the Server Tools panel and follow instructions to perform the software update. The update will take several minutes. -
Page 15: Adding Or Modifying User Credentials
Network and FTP Server Settings Network and FTP settings can be accessed by logging in to the CMS-5000 UI application with installer or administrator privileges and navigating to System->Network. There are six network ports available on the CMS: ETH A and ETH B –... -
Page 16: Automation Tcp/Ip Connection
300m) and Copper modules (RJ45 connection, supports distances to 30m). Whatever type of module is used on the CMS-5000, the other end needs to be of the same type (SR to SR, Copper to Copper, etc.). The CMS-5000 does not examine the manufacturer ID so any brand of module that meet the specifications shown below will work in the CMS-5000. -
Page 17: Audio Settings
Q-SYS. All CMS include DTS:X™ immersive audio rendering up to 16 channels and 64 channels rendering is available with an additional software license. Audio configuration can be accessed by logging in to the CMS-5000 UI application with installer or administrator privileges and navigating to System->Audio. -
Page 18: Q-Sys Channel Assignments
The VBAP configuration file describes speaker placement within your auditorium in order to correctly render sound from a DTS:X or IAB soundtrack. Please contact QSC Support or DTS support for help in generating the VBAP configuration file. Detailed measurements of the Auditorium shape, speaker locations and heights are required to correctly generate this configuration. -
Page 19: Automation Settings
To make device cues visible in the Builder and Player pages, the device must be activated during setup. The Automation device configuration can be accessed by logging in to the CMS-5000 UI application with installer or administrator privileges and navigating to System->Automation. -
Page 20: Editing And Testing Cues
• To enable other devices' cues, the device must be activated by adding valid network IP and port values. Open the Edit Devices page, select the device, then enter the IP address and click Save. The ethernet port will be populated with the correct port number for the device but can be edited if needed. -
Page 21: Restoring The Default Configuration
Q-SYS component and audio from the CMS-5000 in your designs! Once added, set the CMS-5000 properties to Dynamic Pairing = Yes, and use the Core manager page for your Q-SYS core to pair the CMS-5000 by network name. Your CMS should be available in the list once network name mode is selected. -
Page 22: Front Panel Leds
— Table 6 — Content Storage Drive configuration Effective Memory The CMS-5000 includes local storage for content to be played. The storage consists of 4 x 500MB 1.5 TB 4 SSD memory cards configured to provide RAID 5 redundancy, providing a high level of... -
Page 23: Ingesting Content
TMS Control A TMS may be used to control the CMS-5000. The API used provides all of the above functionality to allow automated TMS control. Note that using the CMS-5000 User Interface to manually edit and control the CMS may interfere with the TMS intended functionality. -
Page 24: Troubleshooting Guide
QSC support in order to expedite and improve response. If you encounter a malfunction it is important to note whether the error was a feature not working correctly, or the CMS-5000 becoming unresponsive. Information such as whether power cycling the projector restored functionality is very useful. Check the front panel status LEDs as described below for current status. -
Page 25: Rebooting The Cms
Force Boot to Factory Image A factory default version of the CMS firmware is stored on the CMS-5000. This version will allow you to use the CMS, but is primarily recommended for re-installing the main firmware in cases of error. You can force the CMS to boot up to the factory default firmware... -
Page 26: Reseat Board
If the CMS does not power on when the projector main power is applied, or if an undiagnosable error in color output during playback should occur, it may be necessary to reseat the CMS-5000 in the IMB slot of the projector. Note that this will break marriage with the projector. -
Page 27: Specifications
In/Out, 2 x HD-BNC Network 2 x RJ-45 Q-LAN A & B (for Q-SYS) and 2 x RJ-45 Ethernet (TMS, control etc) Reset Push button As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice. TD-001576-01-A... - Page 28 (Immediate email response times not guaranteed) © 2020 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. Q-SYS, Q-LAN and, Q-SYS Designer are trademarks of QSC, LLC. Patents may apply or be pending.
