Summary of Contents for QSC CMS-5000

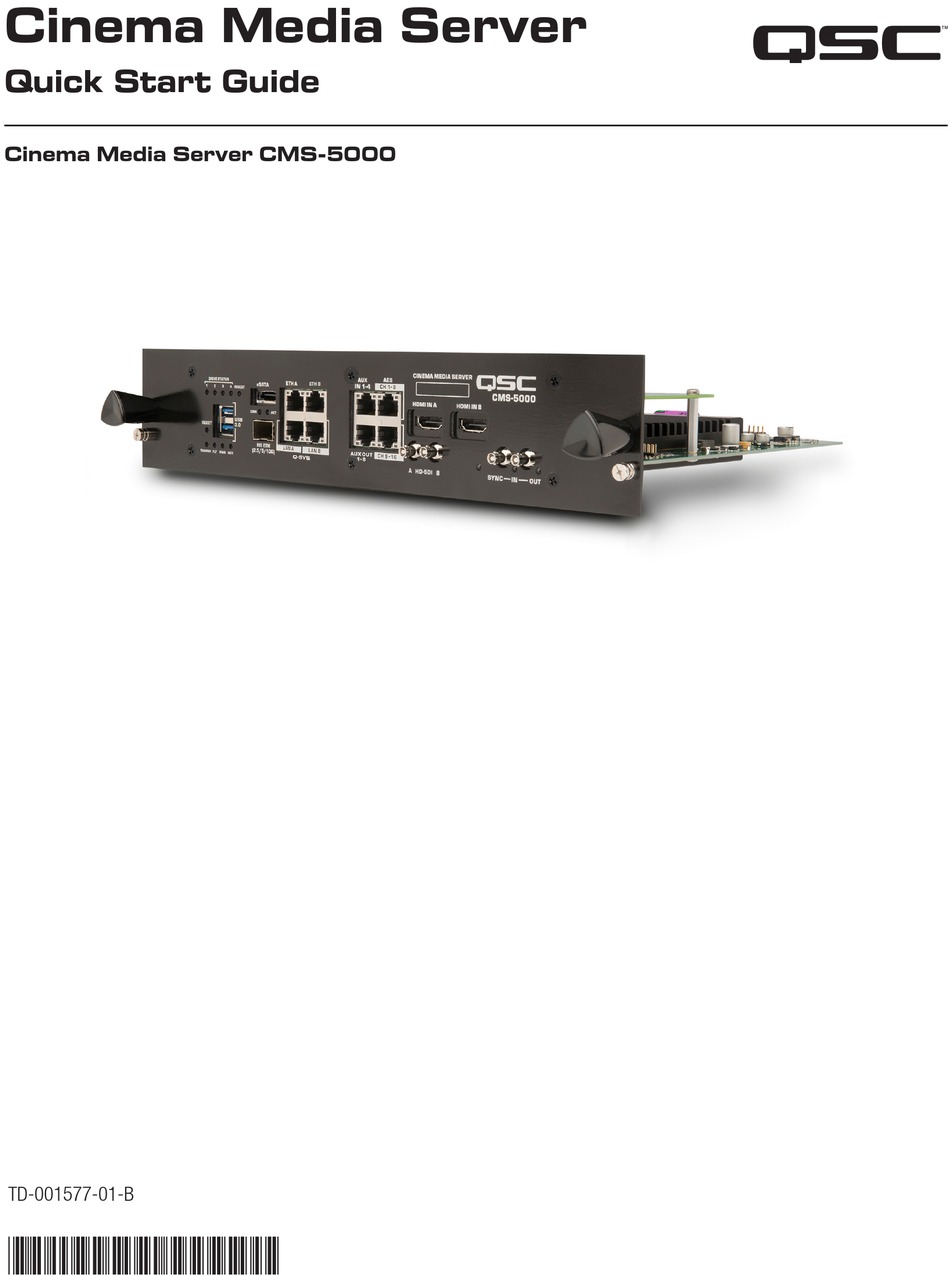

- Page 1 Cinema Media Server Quick Start Guide Cinema Media Server CMS-5000 TD-001577-01-B *TD-001577-01*...
-
Page 2: Important Safety Instructions
EXPLANATION OF TERMS AND SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. -
Page 3: Maintenance And Repair
The CMS-5000 is a FIPS-140-2 Certified device. It contains cryptographic devices and keys and must be handled correctly while in use and when removed from service. The end user of the CMS-5000 is classified by FIPS as a Cryptographic Officer and is responsible for placing and maintaining the projector system into a FIPS approved mode. -
Page 4: Product End Of Life Information
Product End of Life Information This product was designed and built by QSC to provide many years of service, and is backed by our commitment to provide high-quality support. When it eventually reaches the end of its serviceable life, it should be disposed of in accordance with local or national legislation. -
Page 5: Package Contents
The innovative CMS-5000 Cinema Media Server supports JPEG-2000 decoding of high frame rate 4K and 2K images with advanced solid state storage. In addition to an eSATA port and 1G Ethernet ports, the CMS-5000 includes two USB 3.0 ports and a 10 Gb Ethernet port to enable accelerated content ingest. -
Page 6: Required Tools
16. HS TOH – This location has an SFP+ cage for connection to a 2.5G-10G fiber or Cat6 Ethernet network. This network is used primarily for transfer of the DCP from the library server or between CMS-5000s. See the CMS-5000 User Manual or contact Technical Services for a list of approved SFP+ modules. -
Page 7: Ip Address Setup
With ESD protection in place, remove the CMS-5000 from its anti- static bag and slide it into the IMB slot on the projector. Make sure you properly seat the CMS-5000 in its slot. Install front panel mounting screws. a. For Barco projectors, install the two 6 mm mounting screws on each side of the front panel to secure the CMS-5000 in its slot (See Figure 2-1). -
Page 8: Faceplate Options
Detailed information about CMS setup and usage can be found in the CMS-5000 User Manual available at QSC.com. Security Guide (TD-001589) Information on default user accounts and passwords can be found in the CMS-5000 Security Guide that is shipped with the CMS. Faceplate Options... -
Page 9: Specifications
In/Out, 2 x HD-BNC Network 2 x RJ-45 Q-LAN A & B (for Q-SYS) and 2 x RJ-45 Ethernet (TMS, control etc) Reset Push button As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice. TD-001577-01-B... - Page 10 FAX: +1.714.754.6173 © 2018 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. Q-SYS, Q-LAN and, Q-SYS Designer are trademarks of QSC, LLC. Patents may apply or be pending.
