Alfa Laval FM-OS Instruction Manual

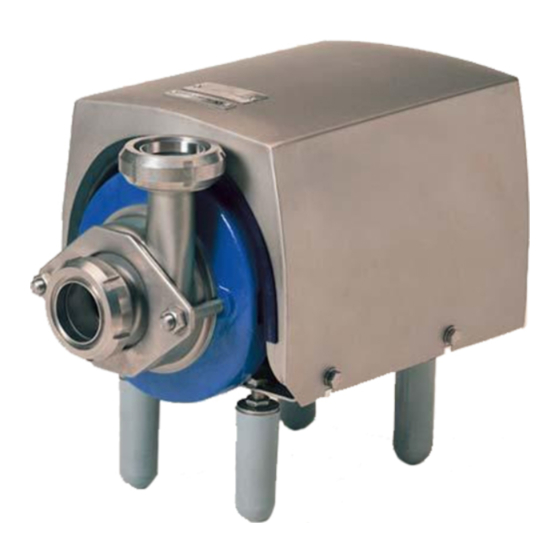

Centrifugal pump
Hide thumbs Also See for FM-OS:
Table of Contents

Advertisement

Quick Links

Instruction Manual
FM-OS Centrifugal Pump
ESE02171-EN4
Original manual
3010-0009
2016-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-OS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alfa Laval FM-OS

Summary of Contents for Alfa Laval FM-OS

  • Page 1 Instruction Manual FM-OS Centrifugal Pump 3010-0009 ESE02171-EN4 2016-10 Original manual...

  • Page 3: Table Of Contents

    6.1. Technical data ..................6.2. Torque specifications ................6.3. Weight (kg) ..................6.4. Noise emission ..................7. Parts list and service kits ................7.1. Drawings ................... 7.2. FM-OS Centrifugal pump, single shaft seal ............ 7.3. FM-OS Centrifugal pump, flushed shaft seal ...........

  • Page 4: Ec Declaration Of Conformity

    1 EC Declaration of Conformity Revision of Declaration of Conformity 2009-12-29 The Designated Company Alfa Laval Kolding A/S Company Name Albuen 31, DK-6000 Kolding, Denmark Address +45 79 32 22 00 Phone No. hereby declare that Pump Designation FM-OS Type From serial number 10.000 to 1.000.000...

  • Page 5: Safety

    2 Safety Unsafe practices and other important information are emphasised in this manual. Warnings are emphasised by means of special signs. Always read the manual before using the pump! 2.1 Important information WARNING Indicates that special procedures must be followed to avoid serious personal injury. CAUTION Indicates that special procedures must be followed to avoid damage to the pump.

  • Page 6: Safety Precautions

    Always handle lye and acid with great care. Never use the pump for products not mentioned in Alfa Laval pump selection program. The Alfa Laval pump selection program can be acquired from your local Alfa Laval sales company. Maintenance: Always read the technical data thoroughly. (See chapter 6 Technical data) Never service the pump when it is hot.

  • Page 7: Installation

    Step 1 Check the delivery for: 1. Complete pump. CAUTION 2. Delivery note. Alfa Laval cannot be held responsible for incorrect unpacking. 3. Instruction manual. 4. Motor instructions. 5. Test certificate, IF ORDERED! Step 2 Remove any possible packing materials from the inlet and the outlet.

  • Page 8: Installation

    Alfa Laval cannot be held responsible for incorrect installation. WARNING: Alfa Laval recommends the installation of lockable repair breaker. If the repair breaker is to be used as an emergency stop, the colours of the repair breaker must be red and yellow.
  • Page 9 3 Installation Study the instructions carefully and pay special attention to the warnings! Always check the pump before operation. - See pre-use check in section 3.3 Pre-use check. Step 5 Risk of damage Avoid stresses to the pump. Pay special attention to: - Vibrations.

  • Page 10: Pre-Use Check

    3 Installation Study the instructions carefully and pay special attention to the warnings! Check the direction of rotation of the impeller before operation. - See the indication label on the pump. 3.3 Pre-use check Step 1 Always remove the impeller before checking the direction of rotation. Never start the pump if the impeller is fitted and the pump casing is removed.

  • Page 11: Recycling Information

    - At end of use, the equipment must be recycled according to relevant, local regulations. Beside the equipment itself, any hazardous residues from the process liquid must be taken into consideration and dealt with in a proper manner. When in doubt, or in the absence of local regulations, please contact your local Alfa Laval sales company.

  • Page 12: Operation

    4.1 Operation/control Step 1 Always read the technical data thoroughly. See chapter 6 Technical data CAUTION Alfa Laval cannot be held responsible for incorrect operation/control. Step 2 Danger of burns! Never touch the pump or the pipelines when pumping hot liquids or when sterilising.

  • Page 13: Trouble Shooting

    4 Operation Pay attention to possible faults. Study the instructions carefully. 4.2 Trouble shooting NOTE! Study the maintenance instructions carefully before replacing worn parts. - See section 5.1 General maintenance Remedy Problem Cause/result Overloaded motor - Pumping of viscous liquids - Larger motor or smaller impeller - Pumping of liquids with high density - Low outlet pressure (counter pressure) - Higher counter pressure (throttling)

  • Page 14: Recommended Cleaning

    4 Operation The pump is designed for cleaning in place (CIP). CIP = Cleaning In Place. Study the instructions carefully and pay special attention to the warnings! NaOH = Caustic soda. = Nitric acid. 4.3 Recommended cleaning Step 1 Caustic danger! Always handle lye and acid with great care.

  • Page 15: Maintenance

    See chapter 7 Parts list and service kits Ordering spare parts Contact your local Alfa Laval sales company. Note: If the pump is supplied with FEP O-rings, Alfa Laval recommends that the casing O-ring is replaced during maintenance of the pump.
  • Page 16 5 Maintenance Maintain the pump carefully. Study the instructions carefully and pay special attention to the warnings! Always keep spare shaft seals and rubber seals in stock. See separate motor instructions. Check the pump for smooth operation after service. Shaft seal Rubber seals Motor bearings Preventive maintenance...

  • Page 17: Dismantling - Single Shaft Seal

    5 Maintenance Study the instructions carefully. The items refer to the parts list and service kits section. Handle scrap correctly. 5.2 Dismantling - single shaft seal Step 1 Remove nuts (8) and yoke (5). Step 2 Remove pump casing (7) and O-ring (10) from back plate (9), (use a plastic hammer, if necessary). Step 3 Turn impeller (6) anticlockwise and remove it from pump shaft (26), (use a plastic hammer, if necessary).

  • Page 18: Dismantling - Flushed Shaft Seal

    5 Maintenance Study the instructions carefully. The items refer to the parts list and service kits section. Handle scrap correctly. 5.3 Dismantling - flushed shaft seal Step 1 1. Remove nuts (8) and yoke (5). 2. Remove pump casing (7) and O-ring (10) from back plate (9), (use a plastic hammer, if necessary). 3.

  • Page 19: Assembly - Single Shaft Seal

    5 Maintenance Study the instructions carefully. The items refer to the parts list and service kits section. Lubricate the rubber seals before fitting them. 5.4 Assembly - single shaft seal Step 1 1. Fit thrower (21) on pump shaft (26). 2.

  • Page 20: Assembly - Flushed Shaft Seal

    5 Maintenance Study the instructions carefully. The items refer to the parts list and service kits section. Lubricate the rubber seals before fitting them. 5.5 Assembly - flushed shaft seal Step 1 1. Fit pump shaft (42) on the motor shaft and lock it with pin (34). 2.

  • Page 21: Technical Data

    6.1 Technical data Centrifugal pump FM-OS is designed for use in food, pharmaceutical, chemical and other industries where acid-resistant steel is resistant to the products to be pumped. This instruction manual is part of the delivery. Study the instructions carefully. The standard delivery does not include the test certificate.

  • Page 22: Torque Specifications

    Always use the following torques if no other values are stated. This can be a matter of personal safety. Tightening torque Size lbf-ft 14.8 29.5 49.0 81.0 6.3 Weight (kg) Pump Type: FM-OS Motor Size 1,1kW FM-OS Weight can vary depending of configuration. Weihgt is only to be seen as a reference value during handling, transporting and packaging.

  • Page 23: Noise Emission

    MR-185 MR-200 MR-300 FM-OS The above LKH noise levels are the same for LKHPF, LKHI, LKH UltraPure, LKH Evap, LKHex. The above SolidC noise levels are the same for SolidC UltraPure. The noise measurements have been carried out using the original motor and shroud at the approximate Best Efficiency Point (BEP) with water at ambient temperature and at 50 Hz.

  • Page 25: Parts List And Service Kits

    7 Parts list and service kits The drawing shows FM-OS. The items refer to the parts list on the part on the page. 7.1 Drawings FM-OS, Single shaft seal FM-OS, Flushed shaft seal...

  • Page 26: Fm-Os Centrifugal Pump, Single Shaft Seal

    7 Parts list and service kits The drawing includes all items of the pump. 7.2 FM-OS Centrifugal pump, single shaft seal 3010-0014...
  • Page 27 7 Parts list and service kits The drawing includes all items of the pump. Parts list Pos. Denomination Motor IEC80 Screw Spring washer Adaptor Yoke Impeller Pump casing with sanitary fittings 51 mm inlet and outlet ISO male ISO clamp Pump casing flanges DN 50 inlet and outlet Pump casing flanges DN 50 inlet...

  • Page 28: Fm-Os Centrifugal Pump, Flushed Shaft Seal

    7 Parts list and service kits The drawing includes all items of the pump. 7.3 FM-OS Centrifugal pump, flushed shaft seal 35 32 29b 30 43 41 3010-0015...
  • Page 29 7 Parts list and service kits The drawing includes all items of the pump. Parts list Pos. Denomination Motor IEC Screw Spring washer Adaptor Yoke Impeller Pump casing with sanitary fittings ISO male ISO clamp Pump casing flanges DN 50 Pump casing flanges Back plate O-ring...
  • Page 32 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
