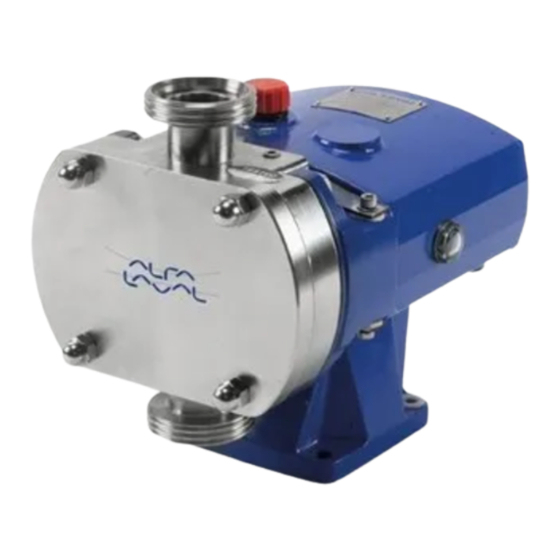

Instruction Manual
ATEX Addendum to SX Instruction Manual - Rotary Lobe Pumps - SX Range
IMPORTANT!
When ordering spare parts please quote Pump Serial No.
Read all of this pump manual and any instructions supplied for ancillary equipment before the unit is installed,
operated or maintained.
ESE02203-EN5
Original manual
TD 242-113_1
2020-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alfa Laval SX Series
Summary of Contents for Alfa Laval SX Series
- Page 1 Instruction Manual ATEX Addendum to SX Instruction Manual - Rotary Lobe Pumps - SX Range TD 242-113_1 IMPORTANT! When ordering spare parts please quote Pump Serial No. Read all of this pump manual and any instructions supplied for ancillary equipment before the unit is installed, operated or maintained.
-
Page 3: Table Of Contents
Table of contents The information herein is correct at the time of issue but may be subject to change without prior notice 1. EC Declaration of Conformity ............... 1.1. ATEX Directive 2014/34/EU ..............1.2. ATEX marking ..................2. Safety ....................2.1. -
Page 4: Ec Declaration Of Conformity
The person authorized to compile the technical file is the signer of this document Global Product Quality Manager Pumps, Valves, Fittings and Tank Equipment Lars Kruse Andersen Signature Title Name Alfa Laval Kolding, Albuen 31, DK 6000 Kolding 2020-02-11 Place Date (This Declaration of Conformity replaces Declaration of Conformity dated 2018-06-01) -
Page 5: Atex Directive 2014/34/Eu
1 EC Declaration of Conformity 1.1 ATEX Directive 2014/34/EU ATEX Directive 2014/34/EU The ATEX Directive 2014/34/EU covers equipment and protective systems that will be used in areas endangered by potentially explosive atmospheres created by the presence of flammable gases, vapors and dusts. Rotary Lobe Pumps supplied with an ATEX symbol are classified for use in potentially explosive atmospheres under ATEX Directive 2014/34/EU Group II, Categories 2 and/or 3. -
Page 6: Safety
2 Safety Unsafe practices and other important information are emphasized in this manual. Warnings are emphasized by means of special signs, see description in Standard Instruction Manual section 2.1 Special Conditions for Safe Use and 2.22.2 General Information. Always read the manual before using the pump! 2.1 Special conditions for safe use - Never operate pump outside max duty conditions specified in “Seal Operation Data”... -
Page 7: Installation
3 Installation 3.1 Installation Pumps and motorized pump units - Always follow the Installation instructions in the Standard Instruction Manual in conjunction with this addendum. - Always ensure that instructions for all ATEX compliant equipment and components are followed (motors, couplings, reduction gears etc.) - Always make sure that pump gearbox, base plate and motor are electrically earthed - Always read section 4 “Operation”... -
Page 8: Operation
4 Operation 4.1 Operation Pumps and pump units - Always read the operations instructions in the Standard Instruction Manual - Always read “Technical information” for shaft seals in section 6.1 - Always vent and purge the pump head and seal cavities of air/gas prior to start-up to avoid dry-run - Always make a visual inspection of the pump unit at startup to ensure there are no malfunctions e.g. - Page 9 4 Operation Daily checks (category 2 only) Shaft seal, all types - Ensure there is no unacceptable leakage Pump units - Ensure the oil levels to be correct with no signs of oil contamination. - Ensure there are no signs of overheating. - Ensure there are no abnormal running conditions such as loose components, abnormal noise, vibration, heat or oil leakage.
-
Page 10: Maintenance
5 Maintenance 5.1 Maintanance Maintenance - Always follow the Maintenance instructions in the Standard Instruction Manual - Always read “Technical information” section 6.1 and the “Seal Operation Data” section 6.2 - Always ensure that instructions of all ATEX compliant equipment and components are followed (motors, couplings, reduction gears etc.) - Always read section 4 “Operation”... -
Page 11: Heating/Cooling Devices
5 Maintenance 5.3 Heating/Cooling devices SX pumps have the option of being fitted with jackets to the rotorcase cover These are primarily used for heating the pumphead so as to maintain the pumped media temperature. They may also be used for cooling purposes. Corrections Jacket New picture... -
Page 12: Technical Information
6 Technical information 6.1 Technical data Shaft seals Mechanical seals are dependant upon lubrication and cooling of the sealing surfaces. Therefore dry-running of the seal faces must be avoided since this can cause excessive generation of heat and thus possibility of exceeding the specified temperature class. During normal operation a mechanical seal will generate a small but controlled leakage. - Page 13 6 Technical information 2. ATEX compliant single mechanical seal. There is NO monitoring device or protection built into this seal option. It relies on the process fluid to cool and lubricate the seal faces in order to stay within the stated temperature class. The process must be controlled/monitored in a way, which ensures the seal face not to exceed the temperature limit.
-
Page 14: Seal Operation Data Sheet
6 Technical information 6.2 Seal Operation Data Sheet 6.2 Seal Operation Data Sheet attached here. - Page 16 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
