Wiring Diagram - Zephyr Siena Use, Care And Installation Manual

ZSI-E30BS, ZSI-E36BS
R E MAR K S :C ONDE NS E R 11+11uF 250VAC AC 120V 60Hz
Power consumption shown for default 650 CFM blower configuration
ACT 390 CFM - Fan Max. 393W @ 3.3A
ACT 290 CFM - Fan Max. 365W @ 3.0A
VOLTS HZ
120 60

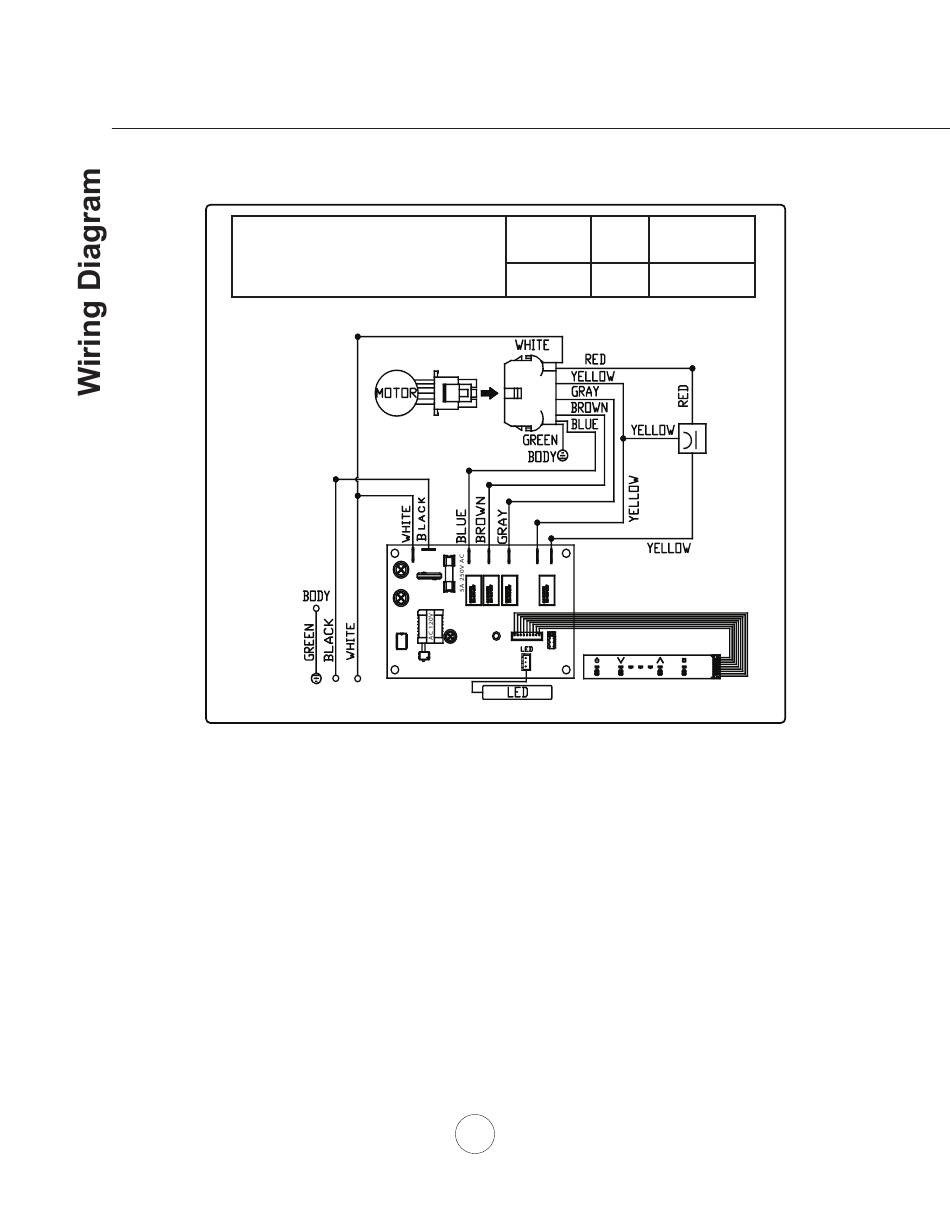

CIRCUIT DIAGRAM
TLO RD
ZSA -E30DS-P
20
www.zephyronline.com
MAX AMPS
4
