1.2 Description
•
•
Universal Power Supply Options
•
•
•
•
1.2
Description
The RUGGEDCOM RMC features various ports, controls and indicator LEDs on the
display panel for connecting, configuring and troubleshooting the device. The
display panel can be located on the rear, front or top of the device, depending on the
mounting configuration.
1
2
3
4
5
6
7
8
9

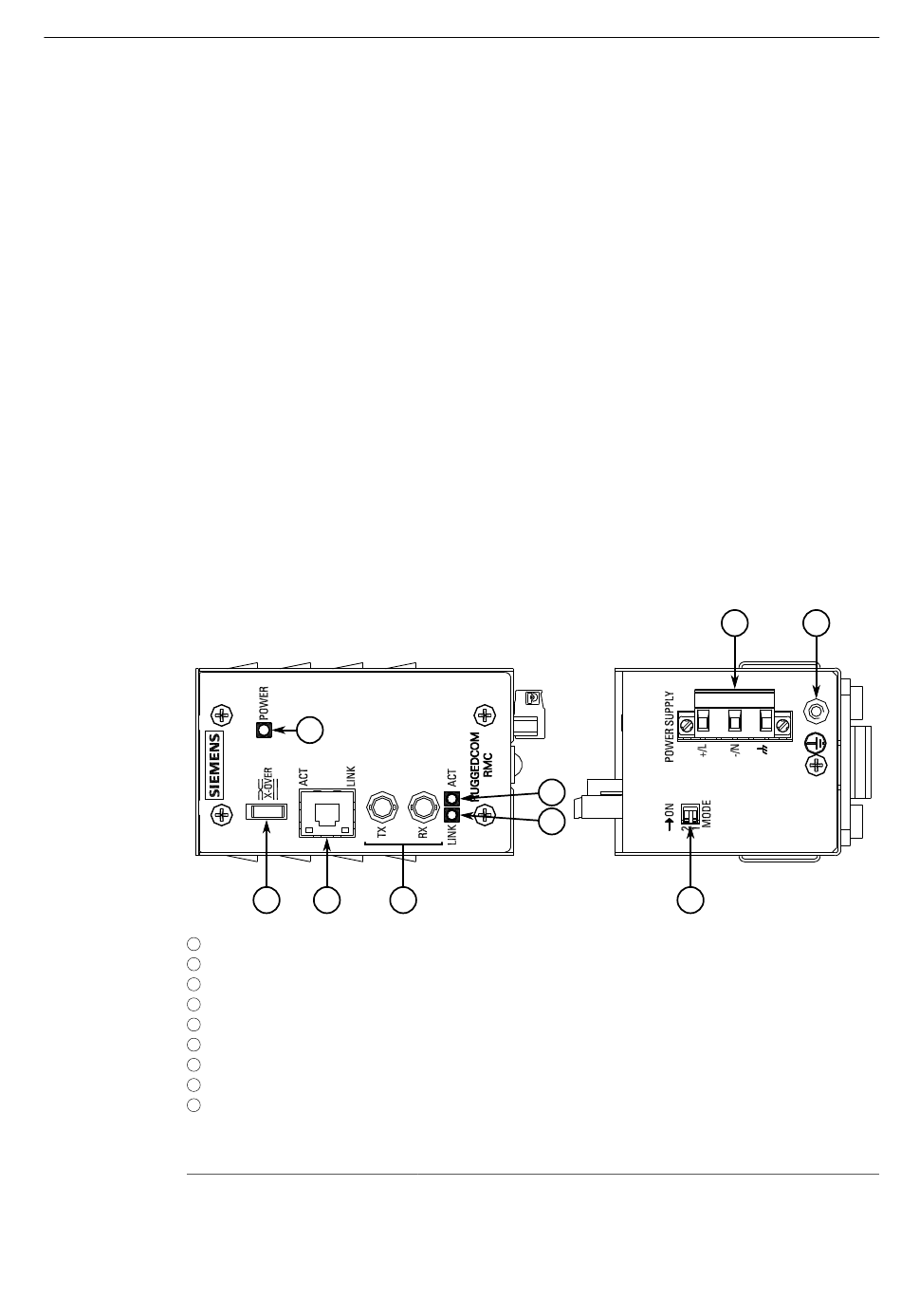

Figure 1.1
POWER LED
2
Transmit and receive data LED indicators for quick and easy troubleshooting
Fully integrated power supply connects directly to power source permanently for
reliable maintenance-free operation
24VDC, 48VDC or HI (88-300VDC / 85 - 264VAC) options for worldwide
operability
Integrated high-reliability power supply eliminates the need for external power
transformer
Screw down terminal blocks ensure reliable maintenance-free connections
All power supplies CSA/UL 62368-1 approved for 85 °C (185 °F) operation
1
2
3
POWER LED
X-Over Switch
Copper Ethernet Port with LEDs
Fiber Optic Ethernet Ports
ACT LED
LINK LED
MODE Switch
Power Terminal Block
Chassis Ground Terminal
RUGGEDCOM RMC
5
6
4
Illuminates when power is being supplied to the device.
8
7
RUGGEDCOM RMC
Installation Manual, 04/2021, C79000-G8976-1006-10
