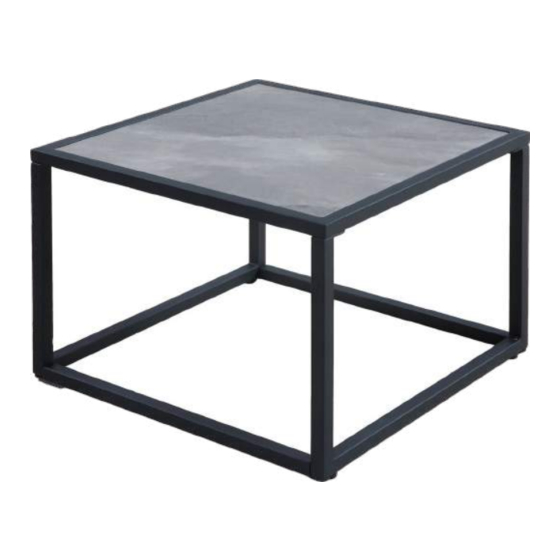

- Page 1 EAGLE BROOKE EAGLE BROOKE 21 IN. SQUARE TILE TOP SIDE TABLE ASSEMBLY INSTRUCTION ITEM#: TCS21LD SKU#: 810451920 Need help? We are here for you! 1.877.539.7436 Call us between 9:00 AM and 4:30 PM Eastern Time Monday through Friday For further assistance.
- Page 2 ASSEMBLY INSTRUCTIONS ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE INTENDED FOR RESIDENTIAL USE ONLY. TCS21LD PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY TCS21LD-CS05-1 13C??1B4100A001 TILE A 500*500*10 TABLE TOP 17C33A0706001YX TCS21LD-CS04-1 BOLT M6*15 62TCS21LDQ101 SUPPORT WASHER D6.5*D13*1.0 Tools...
- Page 3 FIGURE 3 FIGURE 4 PARTS REQUIRED: 1 & 4 Note: If any EVA foam pads on the table top are missing, there are extra EVA foam pads in the hardware kit. See Illustration A. Cleaning and Maintenance • Wash frame parts with mild soap and water, rinse thoroughly, and dry completely. Do not use bleach, acid, or other solvents on the frame parts.
