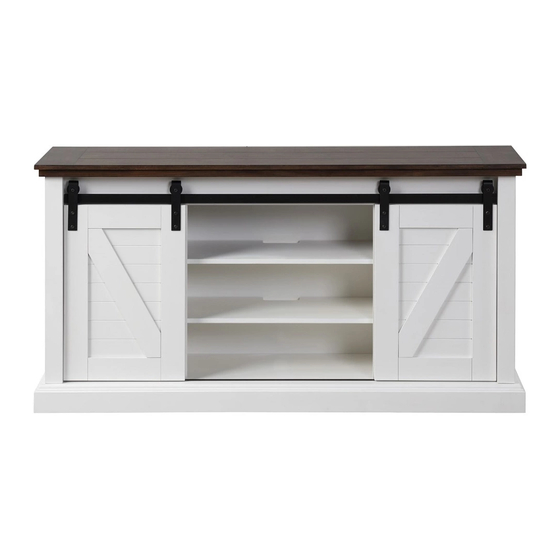

Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: Determine you have adequate space for assembly. Assembly by two adults is recommended. Assemble on soft surfaces to prevent damage to product finish. Keep children away during assembly. This item contains small parts which can be swallowed by children. -
Page 3: Parts List
PARTS LIST Top Panel Left Side Panel Left Middle Panel x 1 pc x 1 pc x 1 pc Right Middle Panel Right Side Panel Left Door x 1 pc x 1 pc x 1 pc Right Door Front Rail Side Back Panel x 1 pc x 1 pc... - Page 4 PARTS LIST Adjustable Shelves Center Back Panel Center Adjustable Shelves x 2 pcs x 1 pc x 2 pcs Bottom Panel Bottom Crossbar Connect Wood x 1 pc x 1 pc x 8 pcs Page 3 of 14...
-
Page 5: Hardware List
HARDWARE LIST Allen Bolt x 8 pcs Spring Washer x 38 pcs Allen Bolt x 38 pcs Ø1/4" *1mmT Ø1/4"*12mmL Ø1/4"*32mmL Flat Washer x 42 pcs Allen Key x 1 pc Wood Dowel x 18 pcs Ø1/4" *16mmW*1mmT Ø8*30mmL Sliding Hardware x 4 pcs Plastic Block x 8 pcs Screw x 8 pcs 30*14*8mm... - Page 6 STEP 1 Hardware needed With assistance, place the Bottom Panel (M) upside down on a smooth surface. Attach the Bottom Crossbar (N) to Bottom Panel (M) with Flat Washer (4), Spring Washer (3) and Allen Bolt (2) using Allen Key (5). Fully tighten all bolts.
- Page 7 STEP 2 Hardware needed Place the Left Side Panel (B) upside down on a smooth surface. Align the holes in Connect Wood (O) with the holes in Left Side Panel (B) as shown. Secure the Connect Wood (O) to Left Side Panel (B) with Flat Washer (4), Spring Washer (3) and Allen Bolt (2) using Allen Key (5).
- Page 8 STEP 3 Hardware needed Insert Wood Dowel (6) into Bottom Panel (M). Align the holes in Right Side Panel (E) and slide to place. Secure Right Side Panel (E) to Bottom Panel (M) with Flat Washer (4), Spring Washer (3) and Allen Bolt (2) using Allen Key (5). Fully tighten all bolts.
- Page 9 STEP 4 Hardware needed Open Center Back Panel (J). Insert Center Back Panel (J) down along the groove of Left Middle Panel (C) and Right Middle Panel (D). Insert Side Back Panel (I) down along the groove of Left Side Panel (B) and Left Middle Panel (C). Repeat the process for the remain Side Back Panel (I) to attach to Right Side Panel (E) and Right Middle Panel (D).
- Page 10 STEP 5 Hardware needed Insert Wood Dowel (6) into holes on the edge of Left Side Panel (B), Left Middle Panel (C), Right Middle Panel (D) and Right Side Panel (E). With assistance, align the holes in Top Panel (A) with the inserted wood dowels and lower into place. Secure the Top Panel (A) to Left Side Panel (B), Left Middle Panel (C), Right Middle Panel (D) and Right Side Panel (E) with Flat Washer (4), Spring Washer (3) and Allen Bolt (2)
- Page 11 STEP 6 Hardware needed Insert the Bottom Glider of Left Door (F) into the groove of the Bottom Panel (M) and lean the door against the Middle Panels. Hang the Sliding Hardware (9) on the Metal Rail so it rolls smoothly. Align the holes in Sliding Hardware (9) with the holes in the door and attach Sliding Hardware (9) to the door with Allen Bolt (1) using Allen Key (5).
- Page 12 STEP 7 Hardware needed Insert the Shelf Pin (11) into the pre-drilled holes as shown in the diagram. Place Adjustable Shelf (L) onto the Shelf Pins as shown. Repeat the process for the remaining Adjustable Shelf (L) and the Center Adjustable Shelves (K). You can adjust the position of shelf as needed.
- Page 13 STEP 8 Hardware needed Attach the Anti-tipping Strips (12) to the back top of the mantel with Screw (14) and Flat Washer (4). With assistance, place the console in the desired location and mark the wall just below the spot where the Aniti-tipping Strips are attached to the console.
- Page 14 WARNING The maximum diagonal Plasma/LCD television screen size is 60inch (152.40cm). For use with televisions weighing 135 lbs. (61.23 kg) or less. Using larger or heavier televisions may cause instability or tip-over which lead to serious injury or even death. WARNING - Death or serious injury may occur when children climb on audio and/or video equipment furniture.
- Page 15 ASSEMBLY IS COMPLETED PRINTED IN VIETNAM Page 14 of 14...
