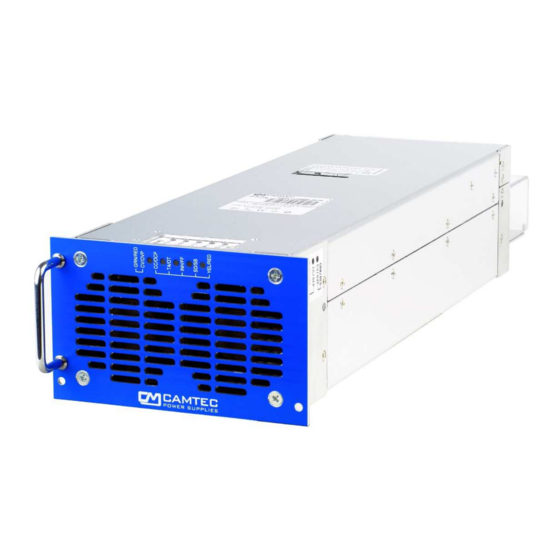

CPS-i2000
19" embedded 2U/3U or hardmount in all positions, PFC 0,99
Features:
3D Heat Dissipation
•
Real time I/V programming
•
Real time I/V-monitoring
•
Reference voltage f. autonomous programming
•
CSB Current Share Bus
•
Inhibit for safe interlocking & Remote Shutdown
•
Remote Shutdown
•
Power Good Relay AC-ok and DC-ok
•
Model
CPS-i2000.018
CPS-i2000.030
CPS-i2000.060
CPS-i2000.090
CPS-i2000.150
sales@powersolve.co.uk
2000W Lab Power Supply scalable
•
•
•
•
•
•
•
•
•
Voltage programmable
0 – 18Vdc
0 – 30Vdc
0 – 60Vdc
0 – 90Vdc
0 – 150Vdc
www.powersolve.co.uk
CPS-i2000(R2) MANUAL
Precise dynamics on load change
Series & parallel operation up to 100kW
EMC conducted class B, radiated class A
Efficiency 92-94%
PFC Powerfactor 0,99
Variable controlled fans from Papst
Long lifetime under hard operation
Fast down programming option PS
Solid 2U and 3U subframes available
Current programmable
0 – 165A
0 – 100A
0 – 50A
0 – 33A
0 – 20A
020321
Advertisement
Related Manuals for Camtec CPS-i2000
Summary of Contents for Camtec CPS-i2000

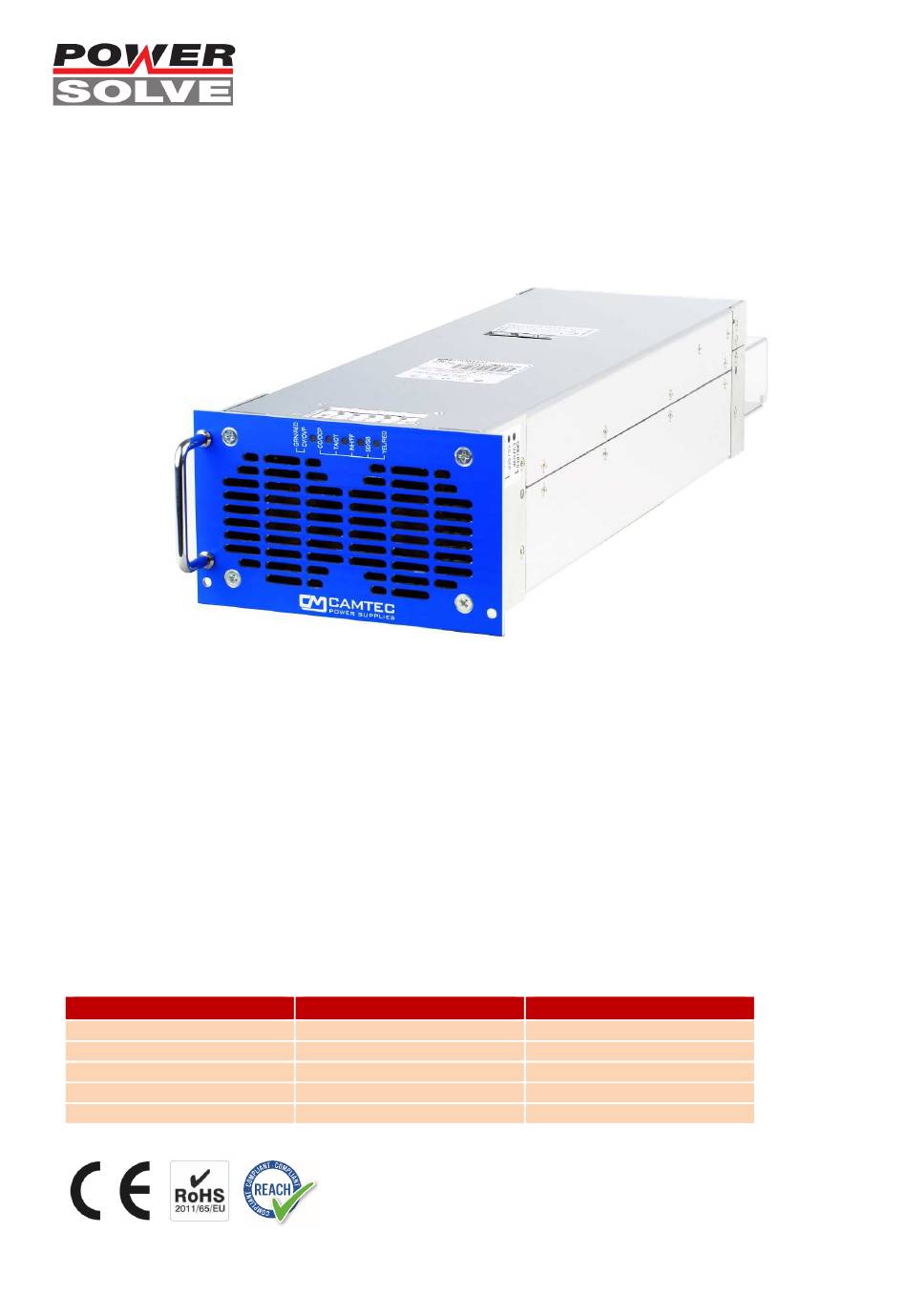

- Page 1 CPS-i2000(R2) MANUAL CPS-i2000 2000W Lab Power Supply scalable 19“ embedded 2U/3U or hardmount in all positions, PFC 0,99 Features: 3D Heat Dissipation Precise dynamics on load change • • Real time I/V programming Series & parallel operation up to 100kW •...
- Page 2 EN61010-1, EN61010-2-201, EN62368-1 and the EMC standards EN55032 conducted Class B, radiated Class A. The mechanical design of the CPS-i2000 device series is unique. It is the first power supply line in the world market, which can be flexibly adapted to any installation situation.
- Page 3 Most recorded failures in the field concern the signal interface of a power supply. to protect a connected defect load. The lock can be controlled remotely or Camtec offers new concept of design-to-service that allows the customer easily to repeal by disconnection from the mains again.
- Page 4 CPS-i2000(R2) MANUAL Technical Data Table AC Input Range 184-264Vac AC Input Frequency 47-63Hz DC Input Range 250-375Vdc AC Input Rated 230Vac <10A DC Input Rated 250Vdc <9,3A 375Vdc <6.2A DC Voltage Programmable 0 - 18Vdc 0 - 30Vdc 0 - 60Vdc...
- Page 5 CPS-i2000(R2) MANUAL Manual und Technical Details Analogue Interface CON1 (Connector Model Weidmueller 1277320000 = included) Name Type Function Signal Remarks AC OK-1 Output Closers, Signal AC OK Relay Potential-free DC OK-1 Output Closers, Signal DC OK Relay Potential-free AC OK-2...
- Page 6 CPS-i2000(R2) MANUAL Schematic oft he internal circuits analogue interface CON1-4 sales@powersolve.co.uk www.powersolve.co.uk 020321...
- Page 7 CPS-i2000(R2) MANUAL - Interface pluggable Push-Pull-Connectors from Weidmueller (included) - Input Power Connector Neutrik NAC3FCA (included) - Output Power Connection M8 Powerbars - Lock-Pins snap into the 2U/3U 19“ subrack CON1 0,14- Push In 1,5mm² CON2 AWG26-16 CON3 CON4 DC +/- 200A/60°C...
- Page 8 CPS-i2000(R2) MANUAL LED Operating Signal CV/OVP CV Constant Voltage Mode LED lights Green OVP Overvoltage maloperation or interference voltage LED lights Red CC/OCP CC Constant Current Mode LED lights Yellow OCP Over Voltage Protection LED flashes Red, also see >>Fuse Mode<<...
- Page 9 CPS-i2000(R2) MANUAL Programming V/C via Potentiometer (Uadj/Iadj) – Stand Alone Operation The power supply is equipped with 2 potentiometers Uadj and Iadj for setting voltage and current. To enable the setting on the potentiometer, configure the interface via the DIP switch for 0-5V. Connect each Uadj and Iadj of CON3 to the inputs Ureg-IN and Ireg-IN.
- Page 10 CPS-i2000(R2) MANUAL Compensation of Load Line Drop Voltage (Sense ++/--) battery charger operation mode Remote Sensing as a battery charger If the CPS-i power supply unit is used as a battery charger, it is recommended to refrain from sensing. It can lead to severe damage to the power supply, if the polarity of the sense line is confused (field experience: such error often occurs when system service is required, e.g., when the batteries are changed).
- Page 11 CPS-i2000(R2) MANUAL External Shutdown (SD) The power supply is set to the Shutdown mode, when the control input is either shorted via a relay contact, a switch contact or an NPN transistor with open collector (voltage drop <1V, current typ. 1,5mA). Alternatively, a voltage of 10 to 30V (typ.
- Page 12 CPS-i2000(R2) MANUAL Signal Inhibit (INH) Interlock INH is high as soon as the connection between the contacts of the control input INH is interrupted. Output Open Collector I =10mA, V ≤0,6V, V =30V. Auxiliary Voltage +12V (AUX) The power supply offers an auxiliary voltage 12V/500mA. The accuracy is ±500mV. Ripple & Noise 30mVpp.
- Page 13 CPS-i2000(R2) MANUAL CC-Mode & Over Current Protection in the Fuse Mode (OCP) The alarm signal OCP is high, when the constant current operation appears for more than typical 5s (Fuse Mode DIP switch S12=0). Output Open Collector I =10mA, V ≤0,6V, V...
- Page 14 CPS-i2000(R2) MANUAL C/V Chart and Operating Point The output voltage set Vout is always linear proportional to the control signal Ureg. The desired control signal is selected via the DIP switcher: 0-5V, 0-10V, 0-20mA oder 4-20mA. Model Value UA1 (V)
- Page 15 CPS-i2000(R2) MANUAL Open Collector Circuit Interface Between all the open collector outputs and power output is a reinforced isolation of max. 400Vdc and a basic isolation of max. 600Vdc working voltage. (Note: this applies to all signals from CON1 and CON2, regardless of whether...
- Page 16 CPS-i2000(R2) MANUAL sales@powersolve.co.uk www.powersolve.co.uk 020321...
-
Page 17: Analogue Interface
CPS-i2000(R2) MANUAL Electrical Safety (Factory-Test / Field-Test Owner) ¹) ≥60Vdc= 2800Vdc Type and factory test are the manufacturer. While repating damage can happen to the power supply unit. For the field test (owner) follow the below instruction: Use suitable test equipment, raising the voltage slowly Short circuit L1 and N, and all the DC output terminals. - Page 18 CPS-i2000(R2) MANUAL Mechanics Aluminium-housing IP20. Cooling is achieved via front-to-rear fans. To ensure adequate heat dissipation, 50mm to the front and 150mm blockade-free distance from the device back wall must be guaranteed. The harnesses are to be designed and installed to that the air outlet of the unit is not being blocked.
-
Page 19: Available Options
Certificate for each power supply can uniquely be assigned via the device serial number. A manufacturer calibration of a CPS-i can frequently be done via controlled recirculation on a regular basis. Please request the help of your local CPS-i dealer or contact us directly: service@camtec-gmbh.com sales@powersolve.co.uk www.powersolve.co.uk... - Page 20 CPS-i2000(R2) MANUAL 19“ Subrack 2U & 3U 2U Subrack for 1-3 CPS-i2000 with up to 6kW continuous power 3U Subrack for 1-5 CPS-i2000 with up to 10kW continuous power sales@powersolve.co.uk www.powersolve.co.uk 020321...
- Page 21 Wall Mount Option & 3D Heat Dissipation (3D-HD) Our aligned and controlled heat dissipation design opens possibilities that are formerly being reserved to custom design power supplies: Steplessly hard mount of the CPS-i2000/3000 power supply modules in a 3D- room.
- Page 22 CPS-i2000(R2) MANUAL Ordering Codes Product Code Information Article Number CPS-i2000.018(R2) 0-18Vdc model incl. analogue interface 3041106001CA CPS-i2000.030(R2) 0-30Vdc model incl. analogue interface 3041106002CA CPS-i2000.060(R2) 0-60Vdc model incl. analogue interface 3041106003CA CPS-i2000.090(R2) 0-90Vdc model incl. analogue interface 3041106004CA CPS-i2000.150(R2) 0-150Vdc model incl. analogue interface 3041106005CA CPS-i2000.018PS(R2)
