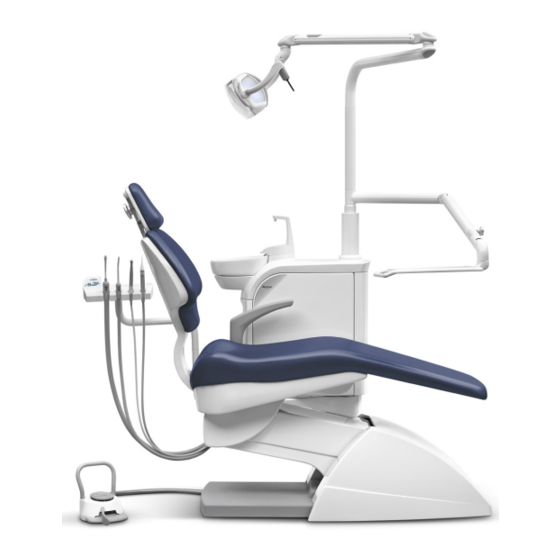

Sd-60
USER MANUAL
Rev. 2 July 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sd-60 and is the answer not in the manual?

Questions and answers

Related Manuals for Ancar Sd-60

Summary of Contents for Ancar Sd-60

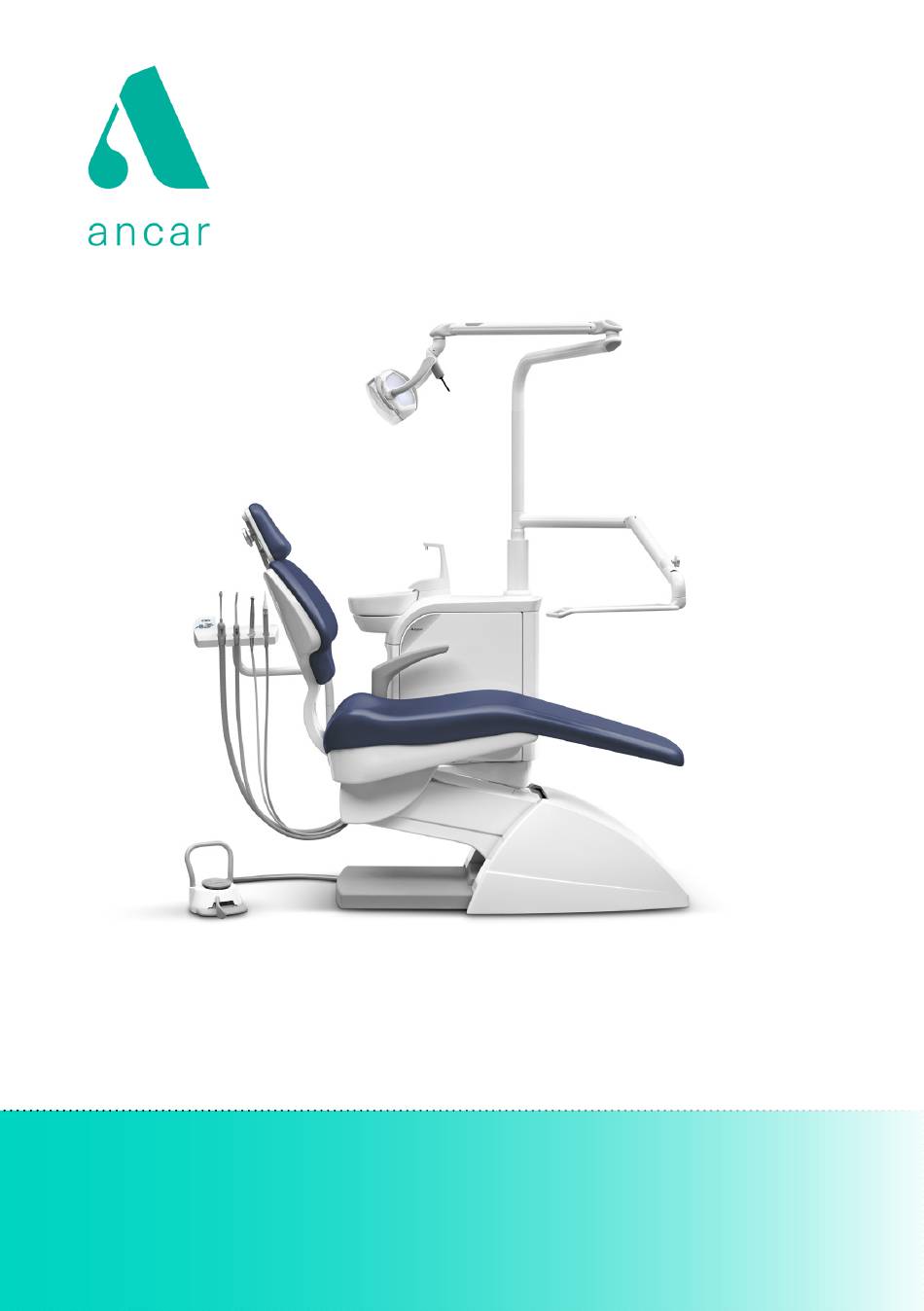

  • Page 1 Sd-60 USER MANUAL Rev. 2 July 2020...

  • Page 2: Table Of Contents

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 CONTENTS PAGE 1. OVERVIEW 2. WARRANTY 3. IDENTIFICATION 4. PRECAUTIONS 5. CLAUSES 6. TECHNICAL FEATURES 6.1. Chair 6.2. Dental Unit 7. TRANSPORT AND DIMENSIONS 8. DESCRIPTION OF THE DENTAL UNIT 8.1. Connections box 8.2.

  • Page 3: Overview

    Defects, intended damage or modifications caused by third parties unrelated to Ancar. Non-compliance with the maintenance periods specified in the User Manual or resulting from inadequate repair or maintenance that has not been carried out by an official Ancar technical service.
  • Page 4 In no case shall ANCAR be required to replace the entire unit or to reimburse its purchase price. ANTONI CARLES, S.A.'s responsibility and accountability for any damages shall cease in the following cases, whereby the warranty shall be automatically cancelled: 1.

  • Page 5: Identification

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL 3. IDENTIFICATION The identification label, which contains the technical information needed for connection, is folded. It can be seen from the rear of the seat and is also placed near the base, on the side of the chair.

  • Page 6: Clauses

    (ii) in all other countries, according to local regulations and recycling legislation. The dental equipment model Sd-60 complies with the essential requirements that apply to it as set forth in the Medical Device Directive 93/42/EEC and meets the design and construction requirements contained in standard EN60601-1-2 on the Safety of Medical Electrical Equipment and Electromagnetic Compatibility;...

  • Page 7: Technical Features

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL 6. TECHNICAL FEATURES 6.1. Chair Ergonomic design for the patient. Chair movements powered by lifting gears that are silent and fully reliable. Movements controlled by a microprocessor: - Automatic return to zero movement (adjustable height).

  • Page 8: Transport And Dimensions

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 7. TRANSPORT AND DIMENSIONS The dental unit is delivered perfectly packaged and protected. One box contains the dental chair attached to a pallet and the other contains the hydric box. (Fig. 2) It is essential that none of these boxes undergo impacts during transport and they must not fall on the ground under any circumstance.

  • Page 9: Description Of The Dental Unit

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL 8. DESCRIPTION OF THE DENTAL UNIT (A) Fig. 5 Connections box Page 9 (B) Fig. 6 Electro-pneumatic pedal Page 10 (E) Fig. 7-12 Hydric unit Pages 11, 12 (D) Fig. 13-16...

  • Page 10: Connections Box

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 8.1. Connections box The connections box contains all the connections required to connect the dental equipment to the clinic's mains power supply and the air and water adjustment components. Valve movement direction complies with standard UNE 20128.

  • Page 11: Electro-Pneumatic Pedal

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL 8.2. Electro-pneumatic pedal: USE AND INSTALLATION The pedal is used to regulate the optional instruments on the hose support: Micromotor, turbine. (Fig. 5). Regulates the rotation speed of the electrical micromotor, turbine power and pneumatic micromotor by moving the handle (B);...
  • Page 12 USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 8.3. Hydric unit The hydric unit rotates approximately 70° in relation to the support arm, increasing ergonomic comfort for daily work. The upper part contains the tank support (A) and basin (B), made of porcelain to provide a high degree of hygiene (Fig.
  • Page 13 DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL The porcelain part of the basin can be easily removed by following the steps in Figure 10 and those in Fig.11 for the tap. Remove the tap first. (Fig. 11). To remove the tap, first pull up (“1”) on the tank tap (G), then remove (“2”) the tank support (H) to access the basin tap (J) and remove it (“3”).

  • Page 14: Main Keypad

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 8.4. Hose Support (surgical suction, instruments, auxiliary keypad) The hose support is mounted on an arm with a high capacity of movement to reach the desired position. The hose support is equipped with an auxiliary keypad (A), medium and full suction (B and C) and can be delivered with optional instruments, such as the 3F syringe (always placed in position E), a polymerising lamp or intra-oral camera (pos.

  • Page 15: Hydric Unit

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL 8.5. Auxiliary keypad Fig. 16 The auxiliary keypad (or assistant keypad) is located on the hose support (Fig. 16). A. Tank and cuspidor water. Timer, 2s-12s. The cuspidor and basin can be set up to operate in combination or separately.
  • Page 16 USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 For comfortable maintenance, the upholstery of the headrest can be easily replaced by removing it from the frame. 170mm Fig. 17 8.7. Optional armrest The armrest (B) is rotated by pulling it upwards (without removing it from its housing) until the rotary mechanism unlocks and allows rotation to its end of travel, where it will lock again.

  • Page 17: Safe Movements

    A variety of dental hygiene specialists offer a wide range of cleaning products to achieve optimal results. ANCAR carries out systematic, comprehensive cleaning of its equipment before shipping with the disinfecting agent ECO-JET1 Spray by Magnolia (Cattani Group). To clean and disinfect the various parts of the equipment, please refer to: - Section 8.4 “Hose Support”.

  • Page 18: Technical Data

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 11. TECHNICAL DATA Voltage 230V Frequency 50 Hz Air pressure 5 Bar Water pressure 2.8 Bar Power 900 W Electrical protection class Type of operation Intermittent Maximum load (patient) 160 Kg.

  • Page 19: Annex 1. Cleaning And Disinfection Of The Cattani Tank, Hoses And Basin

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL On request, the hydric unit can be supplied with a drain by gravity or continuous suction system and with the option of an amalgam separator for wet or dry systems. See the annexes of this manual to follow each manufacturer's specific instructions.

  • Page 20: Annex 2. Vs300 Suction Valves Kit (Dürr Dental)

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 ANNEX VS300 SUCTION VALVES (DÜRR DENTAL). MAINTENANCE OF THE SUCTION SYSTEM IN COMBINATION WITH THE CUSPIDOR VALVE Before opening the door of the hydric box or removing the tank, disconnect the dental unit from the mains by switching the main switch off.

  • Page 21: Annex 3. Typ1 Suction System (Metasys)

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL ANNEX 3. TYP1 SUCTION SYSTEM (METASYS) Before opening the door of the hydric box or removing the tank, disconnect the dental unit from the mains by switching the main switch off.

  • Page 22: Annex 4. Eco Suction System (Metasys)

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 ANNEX 4. ECO SUCTION SYSTEM (METASYS) Before opening the door of the hydric box or removing the tank, disconnect the dental unit from the mains by switching the main switch off.

  • Page 23: Annex 5. Self Water System Kit

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL ANNEX 5. SELF WATER SYSTEM KIT Access the bottle (1-litre capacity) from the outer part of the hydric unit by removing the cover (A) outwards ("1"). This is an independent mains water system; the air regulator is normally sealed.

  • Page 24: Annex 6. Cas 1 Combi-Separator (Dürr Dental)

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 ANNEX 6. CAS 1 COMBI-SEPARATOR (DÜRR DENTAL) The control panel is located on the inside (A). The tank (B) should be cleaned. To remove it, unscrew (“1”), but before extracting it (“2”), note that there is a part that measures the level of the amalgam elements contained that protrudes from the bottom.

  • Page 25: Annex 8. H1 Hygiene System (Metasys)

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL ANNEX 8. H1 HYGIENE SYSTEM (METASYS) Do not use any additional cleaning or disinfecting product for the suction installation in treatment areas where an H1 hygiene system has been installed. There is a risk of harmful chemical interactions due to the combination of different chemical products.

  • Page 26: Annex 9. Minilight Syringe (Luzzani)

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 AUTOMATIC CLEANING PROGRAM First Wash Duration: approximately 2 minutes. Led F will flash slowly. Start-up: press on the main switch of the treatment unit. Function: preparation of later treatments with a higher dose of disinfectants.
  • Page 27 DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL WARRANTY The product is guaranteed by our company for up to 12 months after delivery. Any unauthorised changes or manipulation will automatically render the warranty void. Therefore, the company shall not be liable for damage to persons, animals or objects due to poor manipulation. The competent court in the event of discrepancies is the Court of Milan, Italy.

  • Page 28: Annex 10. Optional Components

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 SURFACES AND COMPONENTS The product does not contain hazardous or toxic-harmful components, nor is it in contact with these types of products during its manufacturing cycle. ANNEX 10. OPTIONAL COMPONENTS AUXILIARY AIR AND WATER OUTLETS / USB INPUT In the hydric unit it is optional to have a rapid water (D) and air (E) outlet, as well as a USB input (A) for end-to-end communication, the other end of which will pass through the dental unit.

  • Page 29: Annex 11. Cleaning And Disinfection Of Other Equipment Parts

    DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL ANNEX 11. CLEANING AND DISINFECTION OF OTHER EQUIPMENT PARTS Cleaning and disinfection Carry out the operations with the device disconnected from the mains. Do not flood or wet the equipment with water.

  • Page 30: Annex 12. Safety Observations

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 ANNEX 12. SAFETY OBSERVATIONS GENERAL PRECAUTIONS Refer to all the necessary manuals. Keep all the manuals - dental unit, chair, instruments, lamp and additional kits - in a safe place for future reference.
  • Page 31 DENTAL UNIT SD-60 REV. 2 JULY 2020 USER MANUAL Risk of intervention with autonomous devices (e.g., motor for implants). Disconnect the power of the dental equipment to prevent indirect movements caused by malfunctions and/or unexpected activation of movement controls. This equipment complies with standard EMC (EN 60601-1-2:2007 + AC:2010).

  • Page 32: Annex 13. Symbol Definitions

    USER MANUAL DENTAL UNIT SD-60 REV. 2 JULY 2020 Electromagnetic immunity Test Category Comments Electrostatic discharge Discharge into the air: 2, 4, 8 kV Improved performance with wood and ceramic materials. Contact discharge: 2, 4, 6 kV With synthetic materials, humidity >...
  • Page 33 08340 Vilassar de Mar (Barcelona-SPAIN) Tel. (34) 93 754 07 97 Fax (34) 93 759 26 04 www.ancar-online.com / e-mail: ancar@ancar-online.com 0197 Subject to design and/or specifications changes DENTAL UNIT SD-60 - REV. 2 JULY 2020 without prior notice. Made in Europe.
